Sony WM-FX661 User Manual

— 4 —
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

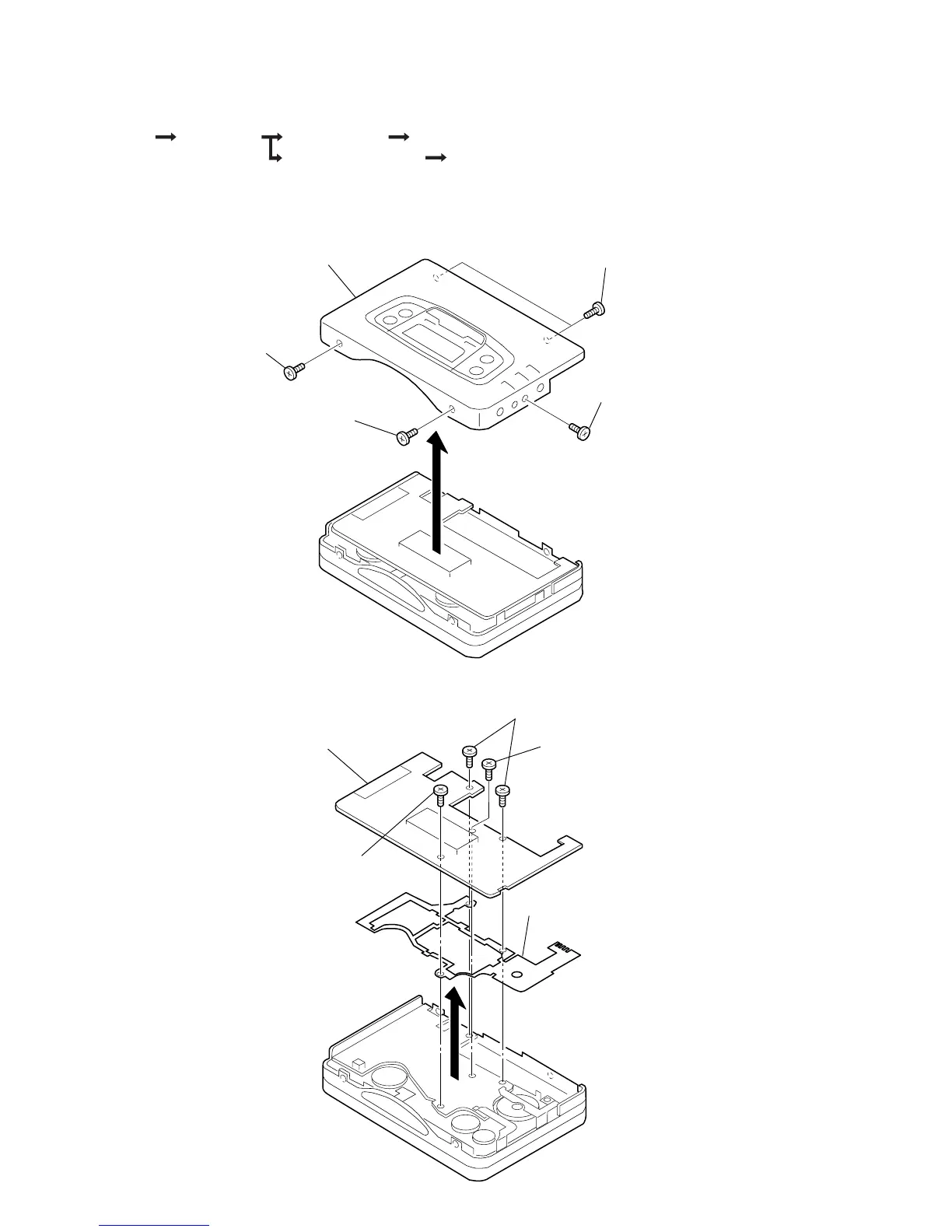

3-1. CASE ASSY REMOVAL
3-2. TUNER BOARD REMOVAL
1 Screws (M1.7 × 6)
4 TUNER board
3 Screw
(M1.4 × 4.5)
6 GUIDE (TU)
5
2 Screw (M1.7 × 3)
6 Case assy
4 Screws
(M1.4 × 2.2)
1 Screw
(M1.4 × 3)
2 Screw
(M1.4 × 2.2)
3 Screw
(M1.4 × 2.2
)
5
CASE ASSYSET
TUNER BOARD
AUDIO BOARD
CASSETTE LID ASSY
MECHANISM DECK
Note : Disassemble the unit in the order as shown below.

Sony WM-FX661 Specifications

General

Brand	Sony
Model	WM-FX661
Category	Cassette Player
Language	English
