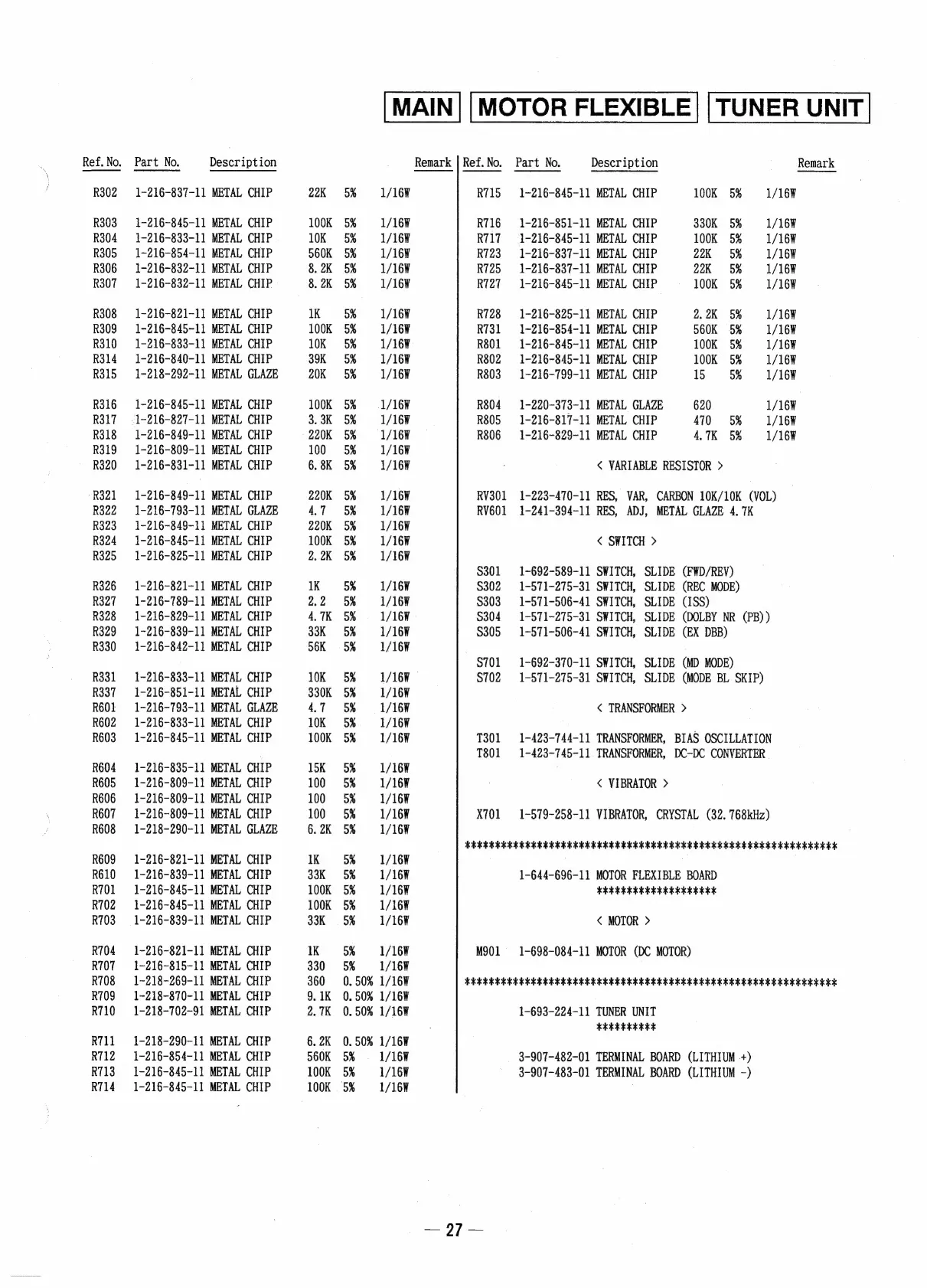

MOTOR FLEXIBLE||TUNER UNIT
Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
R302 1-216-837-11 METAL CHIP 22k 5% 1/16¥ R715 1-216-845-11 METAL CHIP 100K 5% 1/16¥
R303 1-216-845-11 METAL CHIP 100K 5% 1/16¥ R716 1-216-851-11 METAL CHIP 330K 5% 1/16¥
R304 1-216-833-11 METAL CHIP 10K 5% 1/164 R717. =: 1-216-845-11 METAL CHIP 100K 5% 1/16¥
R305 1-216-854-11 METAL CHIP 560K 5% 1/16¥ R723: 1-216-837-11 METAL CHIP 22K 5% 1/16¥
R306 1-216-832-11 METAL CHIP 8.2K 5% 1/16¥ R725 1-216-837-11 METAL CHIP 2ck oD 1/16¥
R307 1-216-832-11 METAL CHIP 8.2K 5% 1/16¥ R727. =1-216-845-11 METAL CHIP 100K 5% 1/16¥
R308 1-216-821-11 METAL CHIP 1K 5% 1/16¥ R728 1-216-825-11 METAL CHIP 2.2K 5% 1/16¥
R309 1-216-845~-11 METAL CHIP 100K 5% 1/16¥ R731 1-216-854-11 METAL CHIP 560K 5% 1/16¥
R310 1-216-833-11 METAL CHIP 10K = 5% 1/169 R801 1-216-845-11 METAL CHIP 100K 5% 1/16¥
R314 1-216-840-11 METAL CHIP 39K 5% 1/16¥ R802 1-216-845-11 METAL CHIP 100K 5% 1/16¥
R315 1-218-292-11 METAL GLAZE Z0K 5% 1/16¥ R803 1-216-799-11 METAL CHIP 15 5% 1/16¥
R316 1-216-845-11 METAL CHIP 100K 5% 1/16¥ R804 1-220-373-11 METAL GLAZE 620 1/16¥
R317 =: 1-216-827-11 METAL CHIP 3.3K 5% 1/16¥ R805 1-216-817-11 METAL CHIP 470 5% 1/16¥
R318 1-216-849-11 METAL CHIP 220K 5% 1/16¥ R806 1-216-829-11 METAL CHIP 4,7TK 5% 1/16¥
R319 1-216-809-11 METAL CHIP 100 5% 1/16¥
R320 1-216-831-11 METAL CHIP 6.8K 5% 1/16¥ < VARIABLE RESISTOR >
“R321 =1-216-849-11 METAL CHIP 220K 5% 1/16¥ RV301 1-223-470-11 RES, VAR, CARBON 10K/10K (VOL)
R322 1-216-793-11 METAL GLAZE 4.7 5% 1/16¥ RV601 1-241-394-11 RES, ADJ, METAL GLAZE 4. 7K
R323 1-216-849-11 METAL CHIP 220K 5% 1/16¥
R324 1-216-845~-11 METAL CHIP 100K 5% 1/16¥ < SWITCH >
R325 1-216-825-11 METAL CHIP 2.2K 5% 1/16¥
$301 1-692-589-11 SWITCH, SLIDE (FWD/REV)
R326 1-216-821-11 METAL CHIP 1K 5% 1/16¥ $302 1-571-275-31 SWITCH, SLIDE (REC MODE)
R327 1-216-789-11 METAL CHIP 2.2 5% 1/16¥ $303 1-571-506-41 SWITCH, SLIDE (ISS)
R328 1-216-829-11 METAL CHIP 4.7K 5% 1/16¥ $304 1-571-275-31 SWITCH, SLIDE (DOLBY NR (PB))
R329 1-216-839-11 METAL CHIP 33K 5 1/16¥ $305 1-571-506-41 SWITCH, SLIDE (EX DBB)
R330 1-216-842-11 METAL CHIP 56K = 5% 1/16¥
$701 1-692-370-11 SWITCH, SLIDE (MD MODE)
R331 1-216-833-11 METAL CHIP 10K 5% 1/16¥ © $702 1-571-275-31 SWITCH, SLIDE (MODE BL SKIP)
R337. 1-216-851-11 METAL CHIP 330K 5% 1/16¥
R601 1-216-793-11 METAL GLAZE 4.7 5% 1/16¥ < TRANSFORMER >
R602 1-216-833-11 METAL CHIP 10K 5% 1/16¥
R603 = 1-216-845-11 METAL CHIP 100K 5% 1/16¥ T301 1-423-744-11 TRANSFORMER, BIAS OSCILLATION
T801 1-423-745-11. TRANSFORMER, DC-DC CONVERTER
R604 1-216-835-11 METAL CHIP 15K ob 1/16¥
R605 1-216-809-11 METAL CHIP 100 5% 1/16¥ < VIBRATOR >
R606 1-216-809-11 METAL CHIP 100 5% 1/16¥
R607 1-216-809-11 METAL CHIP 100 5% 1/16¥ X701 1-579-258-11 VIBRATOR, CRYSTAL (32. 768kHz)
R608 1-218-290-11 METAL GLAZE 6.2K 5% 1/16¥
Po SSS PS es ese esssrtss tess sees ssi sessssesscsssssstssessssssseess
R609 1-216-821-11 METAL CHIP 1K 5% 1/16¥
R610 1-216-839-11 METAL CHIP 33K 55% 1/16¥ 1-644-696-11 MOTOR FLEXIBLE BOARD
R701 1-216-845-11 METAL CHIP 100K 5% 1/16¥ HKKEKKKKEKEREREREREE
R702 1-216-845-11 METAL CHIP 100K 5% 1/16¥
R703. = 1-216-839-11 METAL CHIP 33K = 5b% 1/16¥ < MOTOR >
R704 1-216-821-11 METAL CHIP 1K 5% 1/16¥ M901 1-698-084-11 MOTOR (DC MOTOR)
R707 1-216-815-11 METAL CHIP 330 5% 1/16¥
R708 1-218-269-11 METAL CHIP 360 = =0.50% 1/16¥ PS SSE ESS PSsPesss ees s tees ss ers sss ssssssessstrstesstsssstsseses
R709 1-218-870-11 METAL CHIP 9.1K 0.50% 1/16¥
R710 1-218-702-91 METAL CHIP 2.7K 0.50% 1/16¥ 1-693-224-11 TUNER UNIT
KAKEKEKKKK
R711 1-218-290-11 METAL CHIP 6.2K 0.50% 1/16¥
R712 =1-216-854-11 METAL CHIP 560K 5% 1/16¥ 3-907-482-01 TERMINAL BOARD (LITHIUM +)
R713: 1-216-845-11 METAL CHIP 100K 5% 1/16¥ 3-907-483-01 TERMINAL BOARD (LITHIUM -)
R714 100K 5% 1/16¥
1-216-845-11 METAL CHIP
