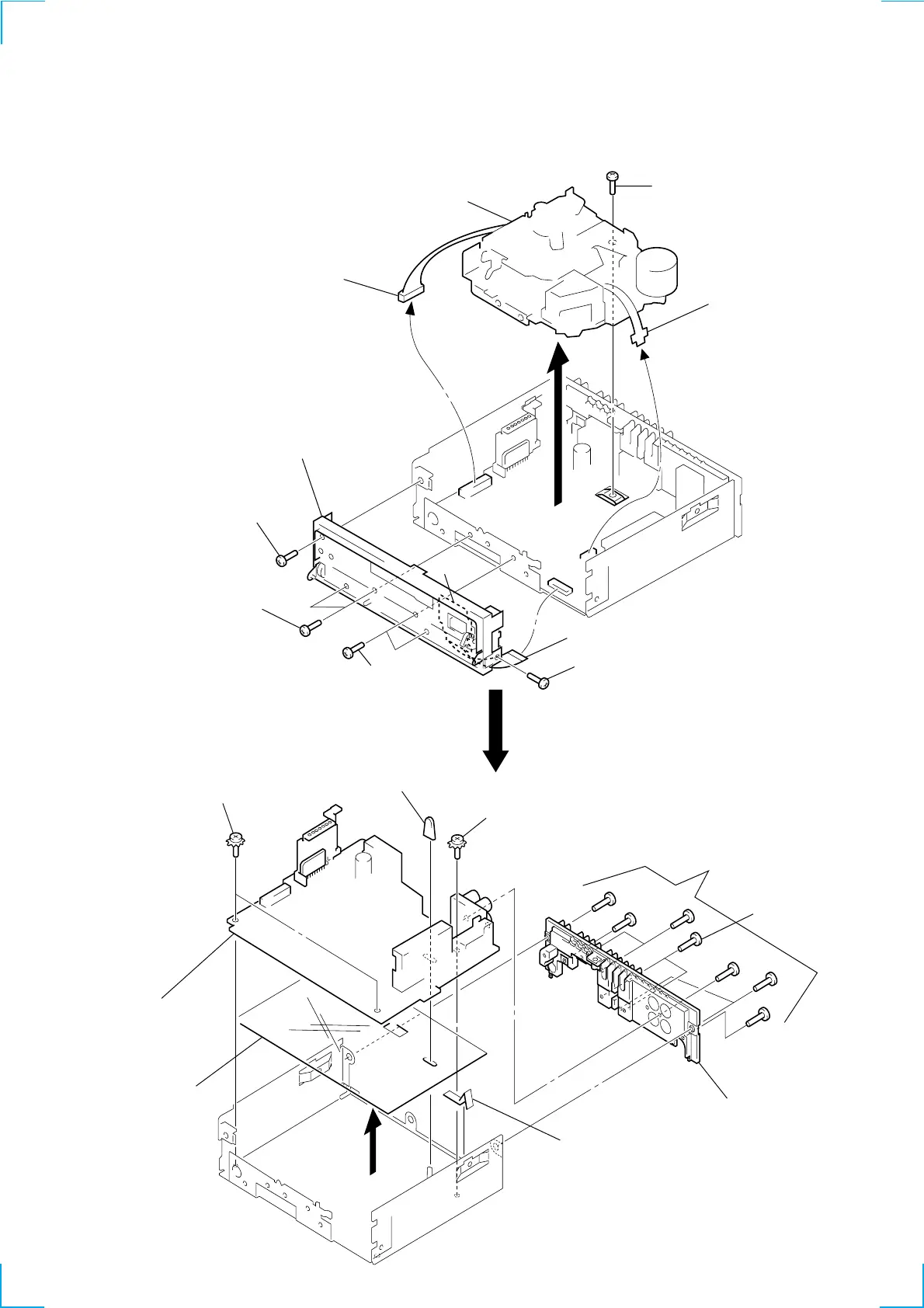

SUB PANEL, MECHANISM DECK (MG-25F-136)

MAIN BOARD, HEAT SINK

Note: Follow the disassembly procedure in the numerical order given.

SECTION 3

DISASSEMBLY

6 Flat cable (WR801)

Sub board

5 Sub panel ass'y

8 Connector(CN351)

9 Screw

(PTT2.6 × 6)

1 Two screws

(PTT2.6 × 6)

4 Screw (PTT2.6 × 6)

2 Two screws

(PTT2.6 × 6)

3 Screw

(PTT2.6 × 6)

0 Mechanism deck

(MG-25F-136)

7 Flexible flat cable

(CNP301)

5 Rubber cap(25)

1 Eight screws

(PTT2.6 × 8)

2 Two screws

(PTT2.6 × 12)

6 Ground screw

7 Two ground screws

4 Ground plate(TU)

3 Heat sink

8 Main board

9 Insulated

plate
