32

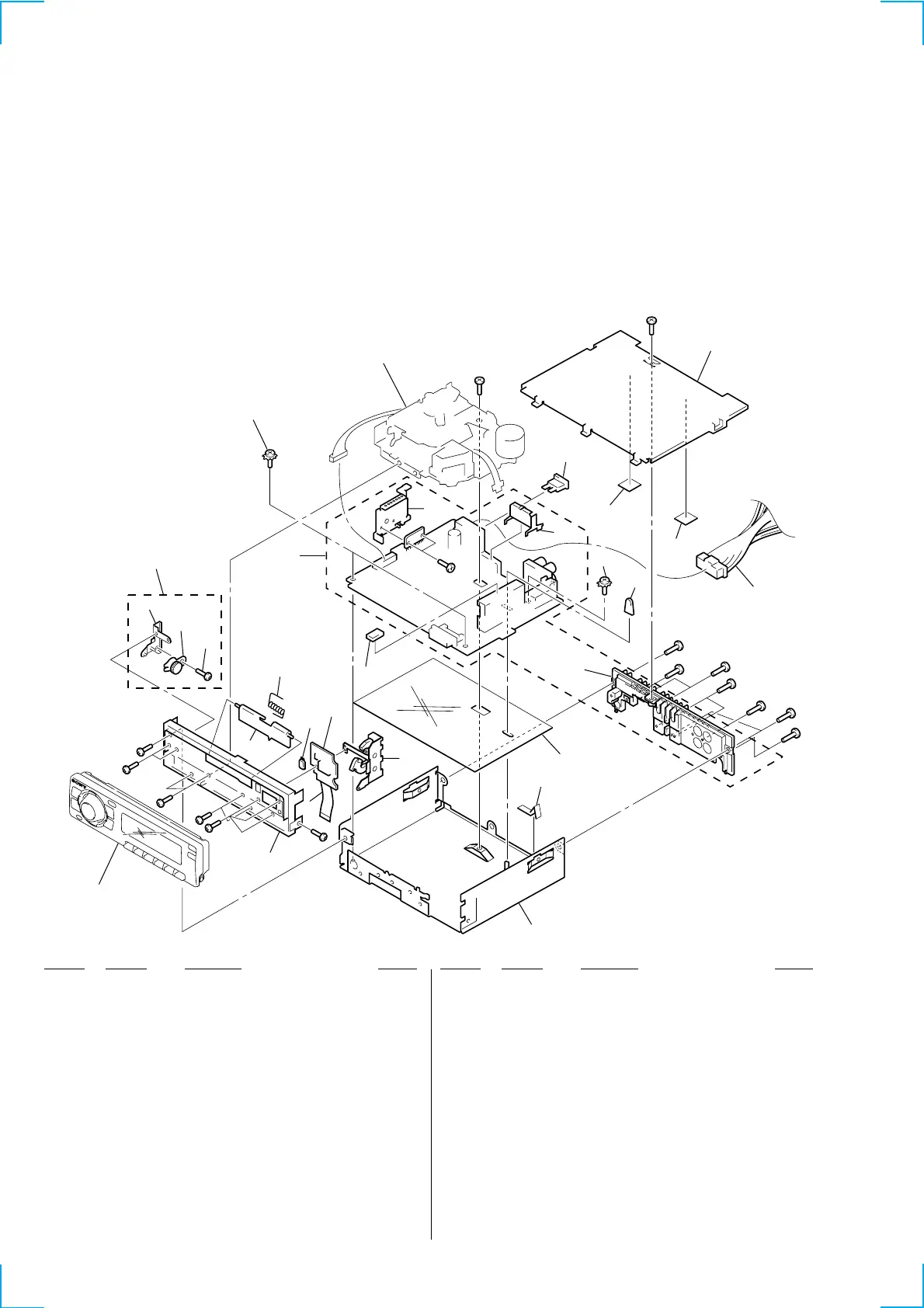

(1) CHASSIS SECTION
SECTION 8
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 1 A-3326-145-A MAIN BOARD, COMPLETE (C5600X)
* 1 A-3326-165-A MAIN BOARD, COMPLETE (C5300X)
* 1 A-3326-176-A MAIN BOARD, COMPLETE (C5305)
* 2 3-040-994-01 CHASSIS
3 3-045-878-01 PLATE (TU), GROUND
4 X-3377-621-2 LOCK ASSY
5 3-040-990-01 BUTTON (EJECT)
* 6 1-676-603-11 SUB BOARD
7 3-027-437-12 DOOR, CASSETTE
8 3-935-003-01 SPRING, TORSION
9 3-045-877-01 CUSHION (TU)
10 X-3376-699-2 GEAR ASSY
11 3-030-909-02 DAMPER, OIL
12 3-713-786-51 SCREW +P 2X3
13 3-045-828-01 INSULATED PLATE
* 14 3-040-996-11 HEAT SINK (2P)
15 3-012-859-01 CAP (25), RUBBER
16 3-915-923-01 SCREW, GROUND POINT
17 1-792-194-21 CORD (WITH CONNECTOR)(POWER)(C5600X)
17 1-792-194-31 CORD (WITH CONNECTOR)(POWER)
(C5300X,C5305)
* 18 3-046-991-01 SPACER (COVER R)
* 19 3-046-990-01 SPACER (COVER L)
* 20 3-040-995-01 COVER
* 21 3-040-998-01 BLACKET (IC)
* 22 3-041-262-01 HEAT SINK (REG/XR)
23 1-792-195-11 CABLE, FLEXIBLE FLAT
24 X-3378-397-1 PANEL ASSY, SUB
F781 1-532-877-11 FUSE (BLADE TYPE)(AUTO FUSE)(10A)
2
F781
#1
#
#3
#3
#10
#3
#3
#3
#4
#9
#5
#1
#2
#2
#2
#2
Front panel section
3
4
24
23
5
6
7
8
9
10
13
11
12
not supplied
MG-25F-136
14
15
16
16
17
18
19
21
22
1
20
• Abbreviation
CND: Canadian model
