Sony XR-C5300X Service Manual

33
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

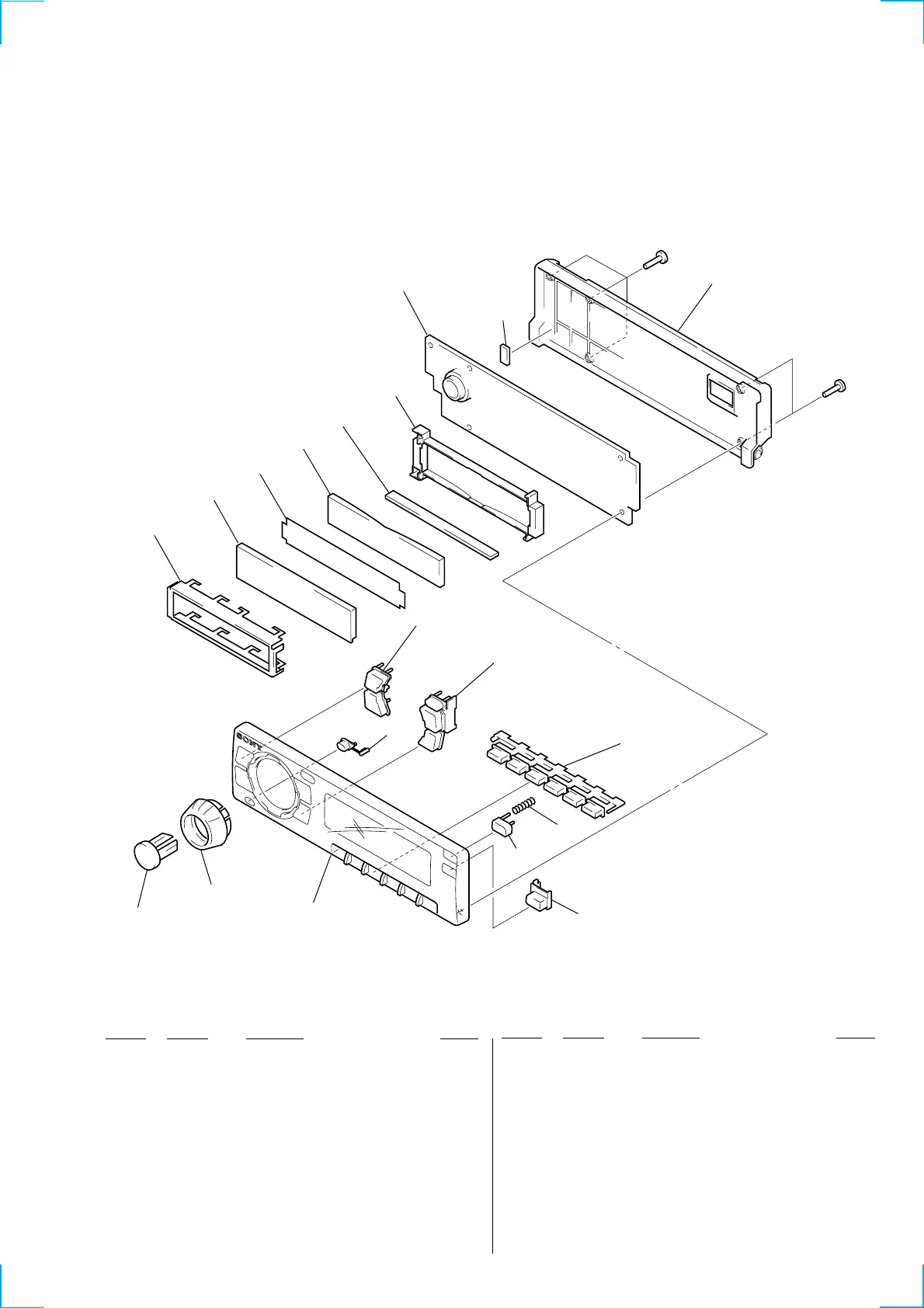

(2) FRONT PANEL SECTION
#6
LCD901
#6
51
52
67
not supplied
(KEY board)
56
53
54
55
57
58
59
60
61
62
63
64
65
66
51 3-040-980-01 BUTTON (SOURCE)
52 3-040-981-01 KNOB (VOL)(C5300X,C5305)
52 3-040-981-11 KNOB (VOL)(C5600X)
53 3-041-005-11 BUTTON (D)
54 3-040-989-01 BUTTON (OPEN)
55 3-037-267-01 SPRING (OPEN)
56 3-040-987-01 BUTTON (OFF)
57 3-040-988-01 BUTTON (1-6)
58 3-040-985-01 BUTTON (DIR/ENTER)
59 3-040-986-01 BUTTON (MENU/SOUND)
* 60 3-040-997-01 PLATE (LCD), GROUND
* 61 3-041-371-02 SHEET (REFLECTOR)
* 62 3-040-993-01 PLATE (LCD), LIGHT GUIDE
63 1-694-660-11 CONDUCTIVE BOARD, CONNECTION
* 64 3-040-992-01 HOLDER (LCD)
65 X-3378-398-1 PANEL ASSY, FRONT BACK
66 3-045-596-01 CUSHION (OFF)
67 X-3378-574-1 PANEL SUB ASSY (C5300X)
67 X-3378-575-1 PANEL SUB ASSY (C5600X)
67 X-3378-580-1 PANEL SUB ASSY (C5305)
LCD901 1-803-907-31 DISPLAY PANEL, LIQUID CRYSTAL
