Sony XR-C5300X Service Manual

15

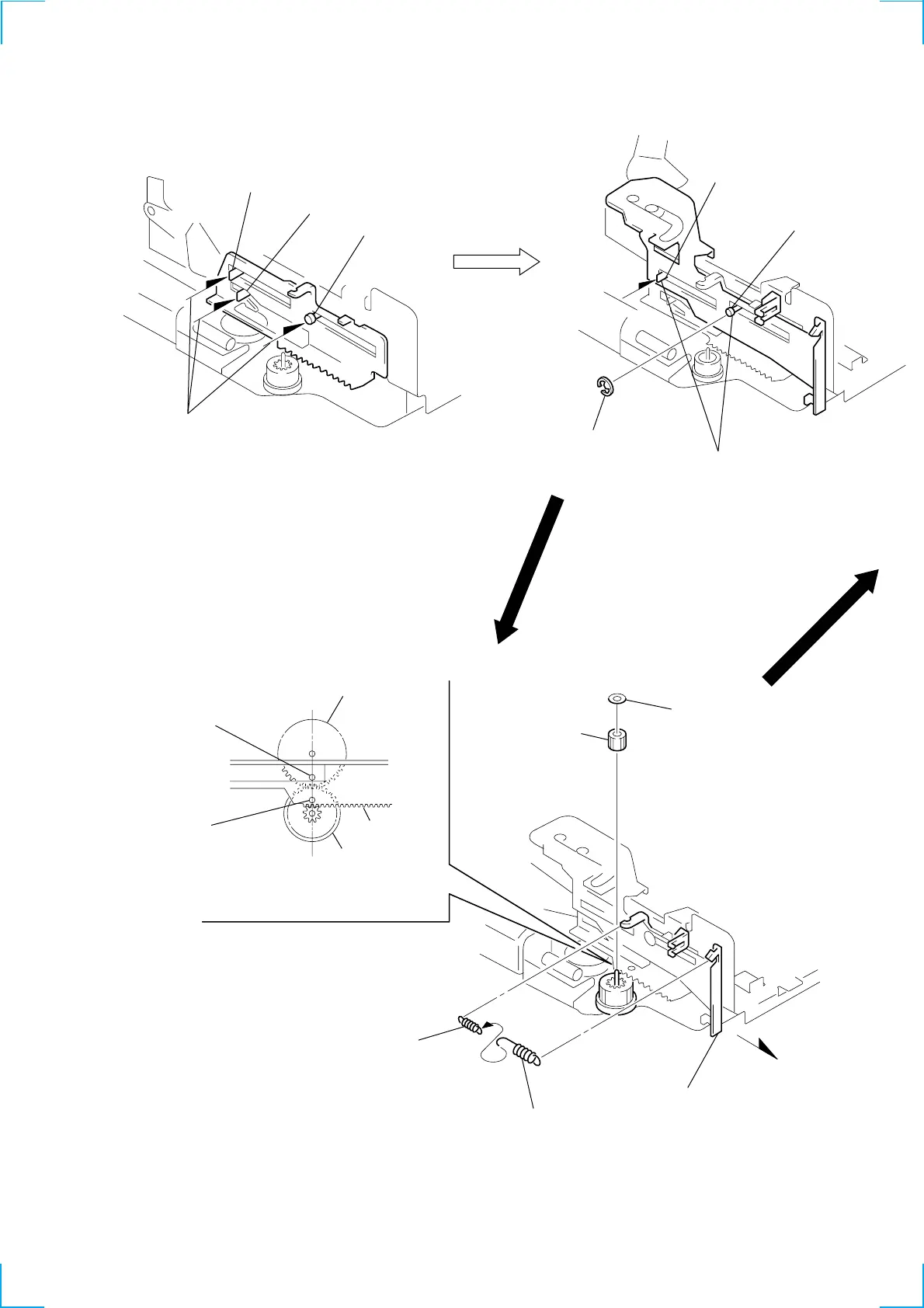

LEVER (LDG-A)/(LDG-B)
GEAR (LDG-FT)
shaft A
shaft B
shaft C
1 Fit the lever (LDG-A) on
shafts A – C and install it.
shaft A
shaft B
2 Fit the lever (LDG-B) on
shafts A and B and
install it.
3 type-E stop ring 2.0
gear (LDG-D)
5 gear (LDG-FT)
6 polyethylene washer
2 tension spring (LD-2)
2 tension spring (LD-1)
gear (LDG-FB)
lever (LDG-A)
hole
hole
4 Align hole in the gear (LDG-D)
with hole the lever (LDG-A).
3 Move the lever (LDG-B)
in the arrow direction.
1

Sony XR-C5300X Specifications

General

Brand	Sony
Model	XR-C5300X
Category	Car Receiver
Language	English
