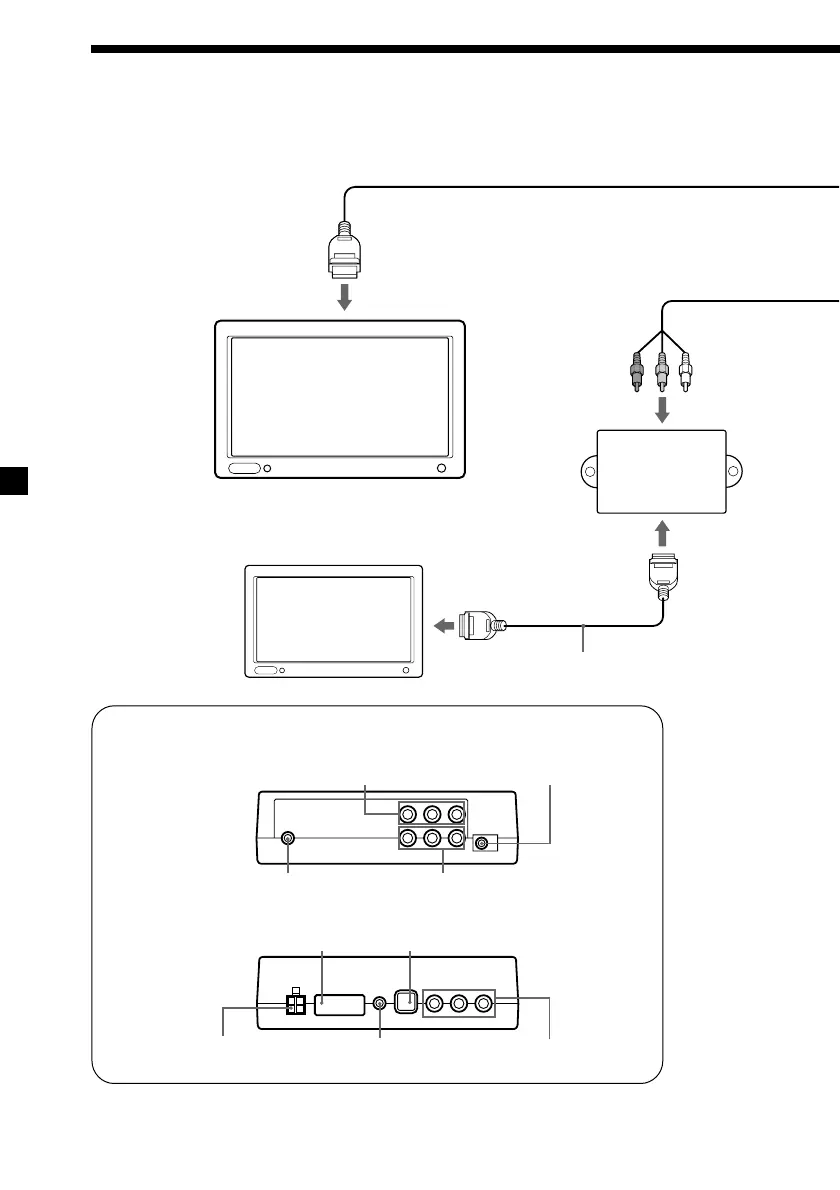

Connection diagram
Headrest Monitor XVM-H65
(6.5-inch wide colour LCD
Monitor)
Headrest Monitor
XVM-H65 (optional)
Refer to the connection diagram for the proper connections.
You can make connections shown in A area. Please ask a qualified technician for the
other connections.
Connection box
XA-113
(optional)
Monitor cable
(5 m) (optional)
Front:
Connection box XA-113
Rear:
7.5 V (max 2 A) DC Output
(for PS one™)
4 Pin Power
connector
22 Pin connector
Audio L/R/
Video Outputs
Audio L/R/
Video Input 1
Audio L/R/
Video Input 2
Headphone jack
(stereo mini)
DVD (MV) connector*
1
Remote Signal
(IR) Output*
2
*
1
Not used in this unit
*
2
Not applicable to the Sony DVD changer DVX-100
