Sookook Corporation
Combustion Head Adjustment
The burner is equipped with a combustion head adjuster to change the combustion condition and flame length according to the boiler type.
The maximum air flow changes depending on the position of the combustion head.
The combustion head shall be in the right position depending on the combustion chamber conditions because it changes the speed of the
combustion air passing through the head and can control the flame shape depending on the boiler, drying furnace, etc. The position of the
combustion head can be adjusted by turning the VRT clockwise or counter clockwise by hand.

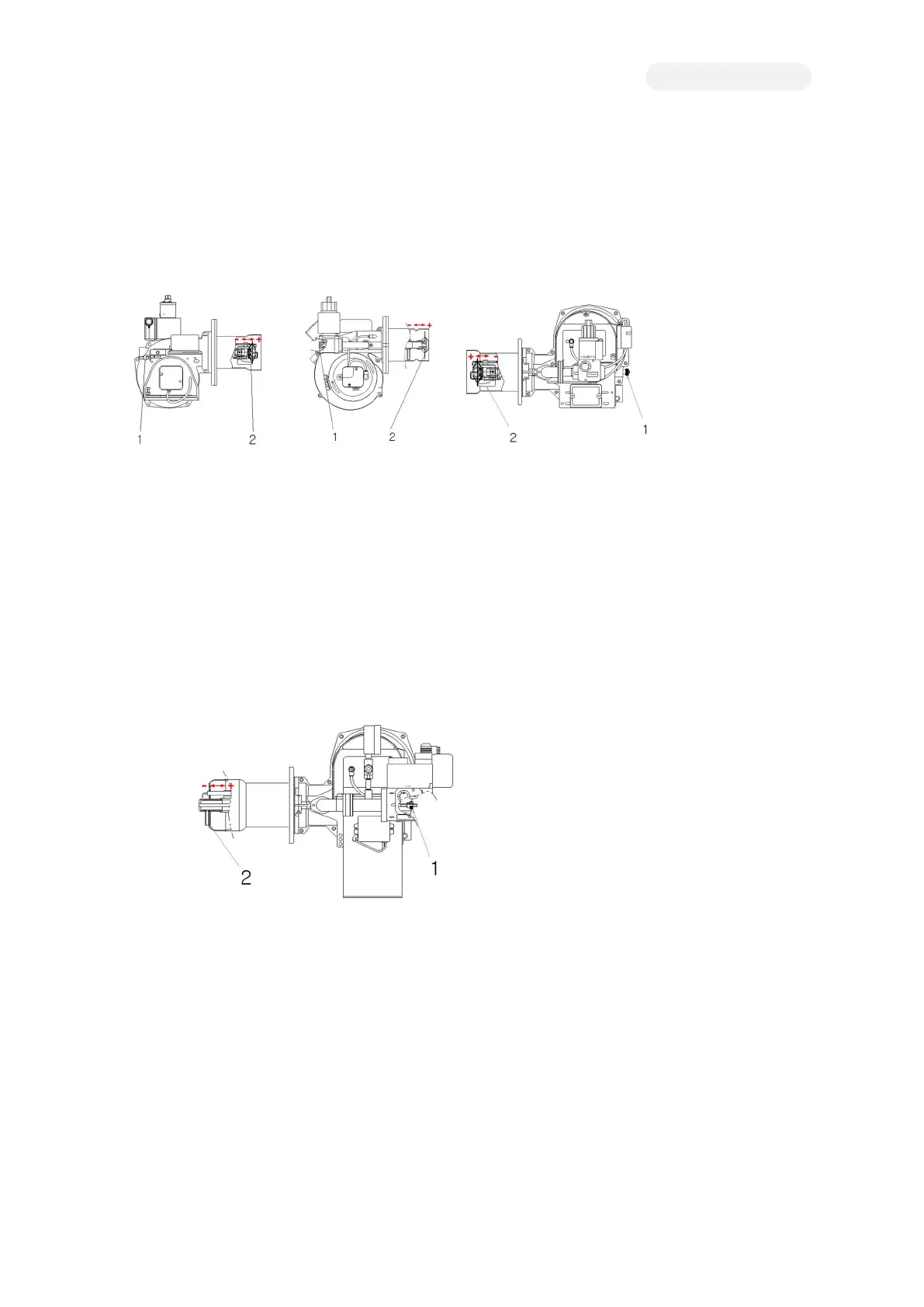

MAXI type
Note
1 – Combustion Head
Adjust Knob
2 – Combustion Head
[Figure 2G-E. MAXI 8 - 16] [Figure 2G-F. MAXI 20S] [Figure 2G-G. MAXI 20 - 32]
Combustion Head Adjustment in Standard Burners
Closing the combustion head: Turn Combustion Head Adjuster clockwise.
- Decreased burner capacity (air flow), increased combustion efficiency
- Increased response to backfire, increased flame detection signal output, increased combustion noise
- Decreased flame length when the same air ratio is achieved by slightly opening the air damper
Opening the combustion head: Turn Combustion Head Adjuster counter clockwise.
- Increased burner capacity (air flow), decreased combustion efficiency,
- Decreased response to backfire, decreased flame detection signal output, decreased combustion noise
- Increased flame length when the same air ratio is achieved by slightly closing the air damper
Combustion Head Adjustment in Low NOx Burners
Note
1 – Combustion Head Adjust Knob
2 – Combustion Head
[Figure 2G-H. MAXI 32 LX]
Combustion Head Adjustment in Low NOx Burners
Opening the combustion head: Turn Combustion Head Adjuster clockwise.
- Increased burner capacity (air flow), increased NOx, decreased fuel efficiency,
- Decreased response to backfire, decreased flame detection signal output, decreased combustion noise
- Increased flame length when the same air ratio is achieved by slightly closing the air damper
Closing combustion head : Turn Combustion Head Adjuster counter clockwise.
- Decreased burner capacity (air flow), decreased NOx, increased fuel efficiency,
- Increased response to backfire, increased flame detection signal output, increased combustion noise
- Decreased flame length when the same air ratio is achieved by slightly opening the air damper
