Sookook Corporation

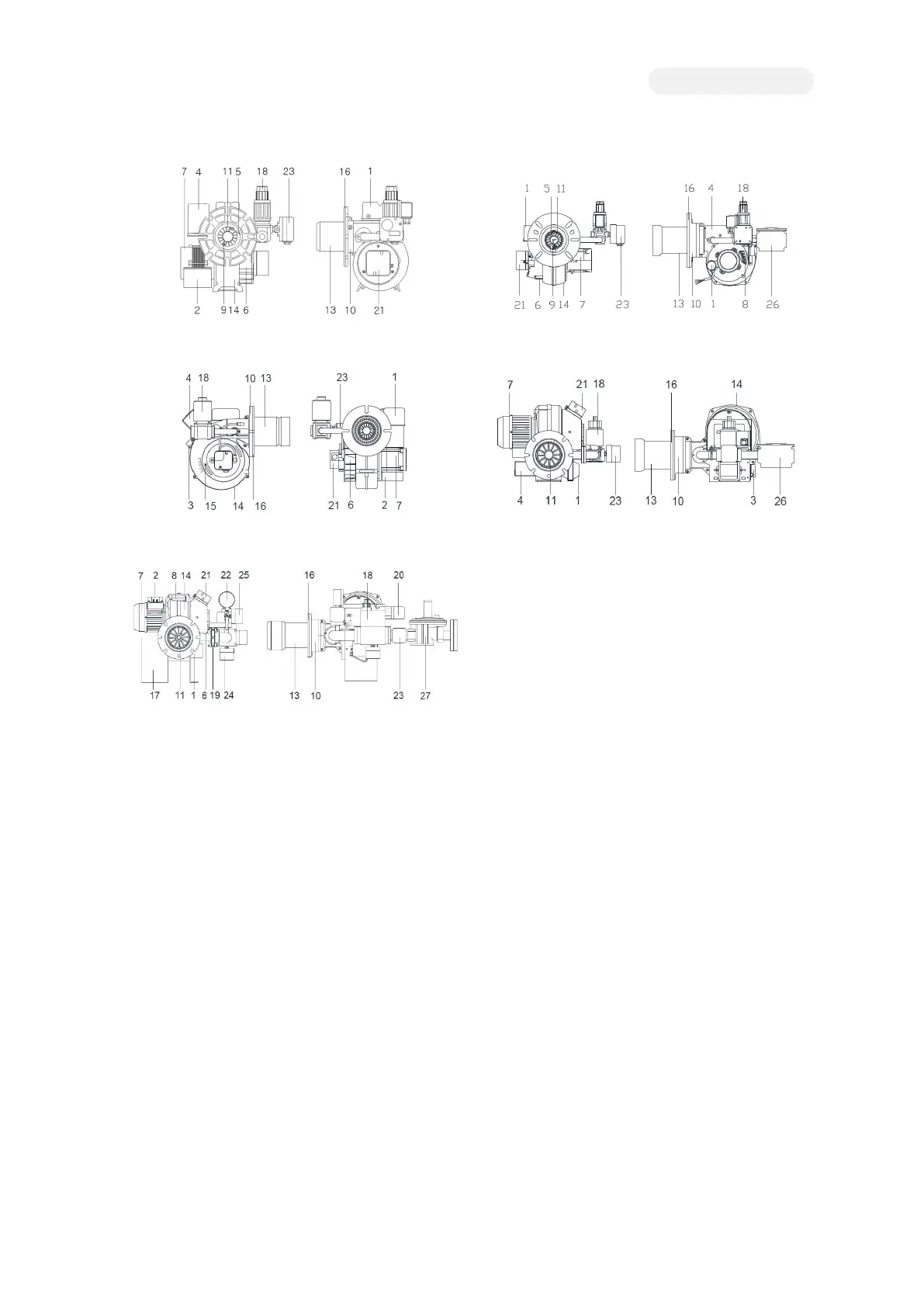

1E. Parts Description
[Figure 3E-A. MAXI 5] [Figure 3E-B. MAXI 8, 10, 16]
[Figure 3E-C. MAXI 20S] [Figure 3E-D. MAXI 20, 25, 32S]
[Figure 3B-F. MAXI 32]
Legend
1 Ignition Transformer
2 Condenser
3 Terminal Block Cover
4 Burner Controller
5 Flame Rod
6 Air Damper
7 Fan Motor
8 Fan Wheel
9 Electrode
10 Burner Flange
11 Diffuser
12 Nozzle
13 Blast Tube
14 Burner Housing
15 Air damper Adjust Bolt
16 Flange Gasket
17 Control Panel
18 Safety Shut-off Valve
19 Butterfly Valve
20 Damper Motor
21 Pressure Switch for Air
22 Gas Pressure Gauge
23 Gas Pressure Switch(Low)
24 Leak Switch
25 Gas Pressure Switch(High, Mid-Pressure)
26 Gas Filter
27 Governor(Mid-Pressure/Gas Filter included)
