Sophos APX Series User Manual

16APX 320/530/740
Operating Instructions

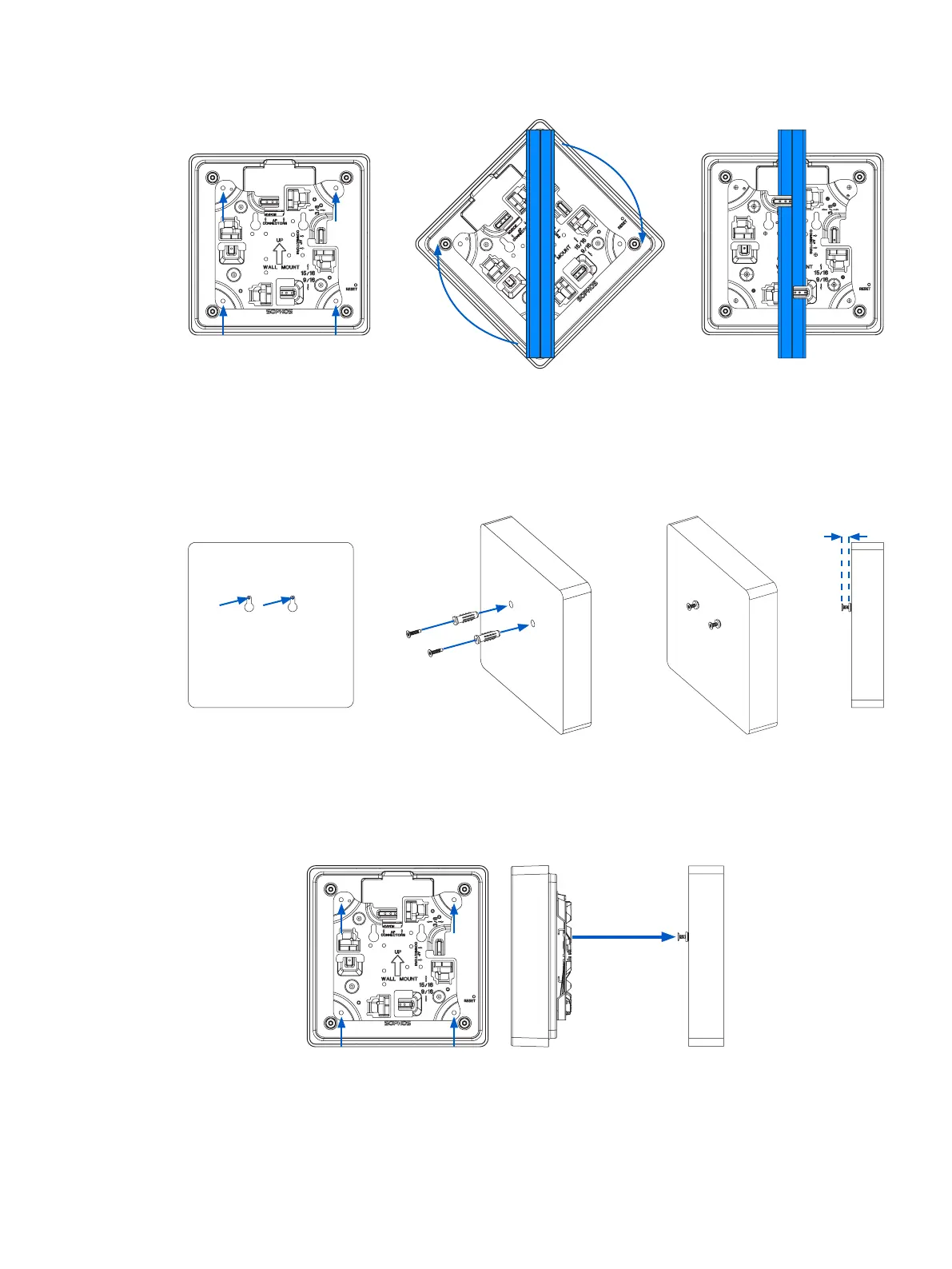

Ceiling mount
1. Fix the bracket to the rear of the Access Point by using 4 of the supplied screws.
2. To install, put the access point underneath the ceiling rail and
turn it into place. To dismount, push down the spring locks
and turn the access point in the other direction.
Wall mount
1. Use the mounting template to mark the screw mounting positions on the wall.
2. Drill the 2 supplied wall anchors into the wall at the marked positions and
screw 2 supplied screws into them. Make sure they stand out ~6.7mm.
3. Fix the bracket to the rear of the Access Point by using 4 of the supplied screws.
4. Hang the access point (with the mounted bracket) on the wall
by aligning the key holes with the mounted screws.
Wall Wall
Wall
6.7mm ±2.0

Sophos APX Series Specifications

General

Wi-Fi Standards	802.11a/b/g/n/ac
Frequency Bands	2.4 GHz, 5 GHz
MIMO	2x2
Ethernet Ports	1 or more Gigabit Ethernet ports
Power over Ethernet (PoE)	802.3at PoE+
Security	WPA3, WPA2, WPA, WEP, 802.1X, AES, TKIP
Management	Sophos Central
Mounting	Ceiling, wall
Operating Temperature	0°C to 40°C (32°F to 104°F)
Model	APX 320, APX 320X, APX 530, APX 740, APX 940, APX 530X
