Overview of the ultrasonic generator
Display panel
The display panel provides information about the status of the ultrasonic generator
and instrument activation time.
The digital display shows the activation time (in minutes) of the connected instru-
ment since the application was started.
If a fault is detected during the self-test, a numeric code is displayed and the ERROR
indicator light goes on.
If a safety shutdown occurs during operation, the ERROR indicator light goes on.
If an ultrasonic generator overload occurs, the OK indicator light flashes and in this
case the ultrasonic generator automatically reduces ultrasonic power.
As soon as the ultrasonic generator is ready for use, the OK indicator light goes on.

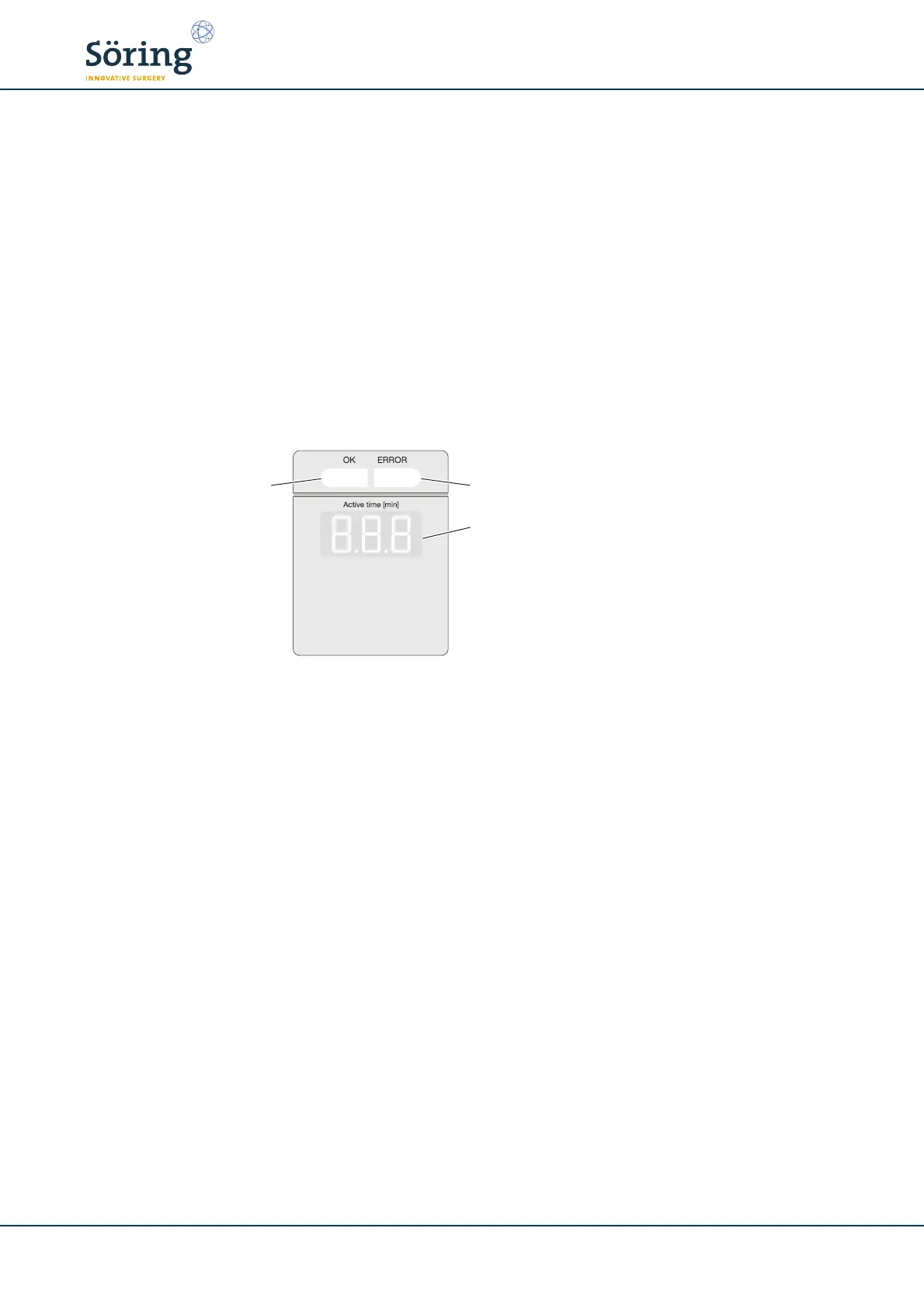

Fig. 3.7 Display panel
1The ERROR indicator light goes on if a safety shut-down or a fault has occurred
2 Digital display
3The OK indicator light goes on when the ultrasonic generator is ready for use
2
3 1
