System overview
3.3 System overview
The following instruments can be connected to the ultrasonic generator:
Bone instrument 92-050
UAW handpieces 97-102, 97-103, 97-104, 97-112.
These instruments are only activated by a single foot switch. The indicator light for in-
strument activity goes on. Irrigation is activated at the same time. Irrigation solution is
routed through the instrument. When the foot switch is no longer pressed, ultrasonic
power is cut and irrigation stops.

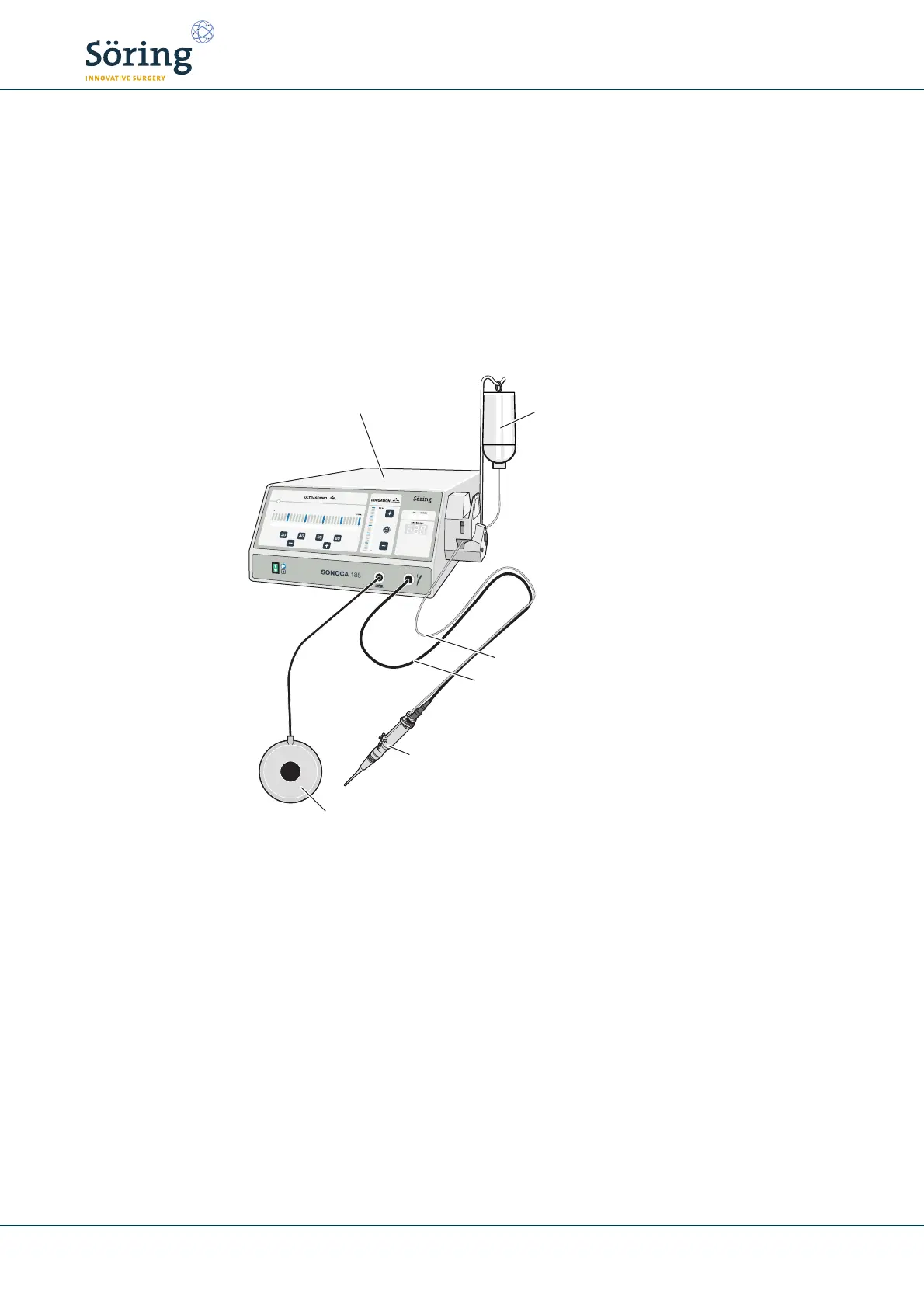

Fig. 3.8 Use of an instrument (Example: UAW handpiece)
3.4
1 Ultrasonic generator
2 Irrigation bottle
3 Irrigation tubing
4 Instrument cable
5 Instrument with irrigation
6 Single foot switch
1
2
4
3
5
6
