Installation
24 Ultrasonic Generator | DocNr.: 03-4655 R03.01 | 22.09.2015 | en-US
Connecting irrigation
5.5 Connecting irrigation
Install an irrigation bottle and connect the irrigation tubing already connected to the
instrument to the irrigation.

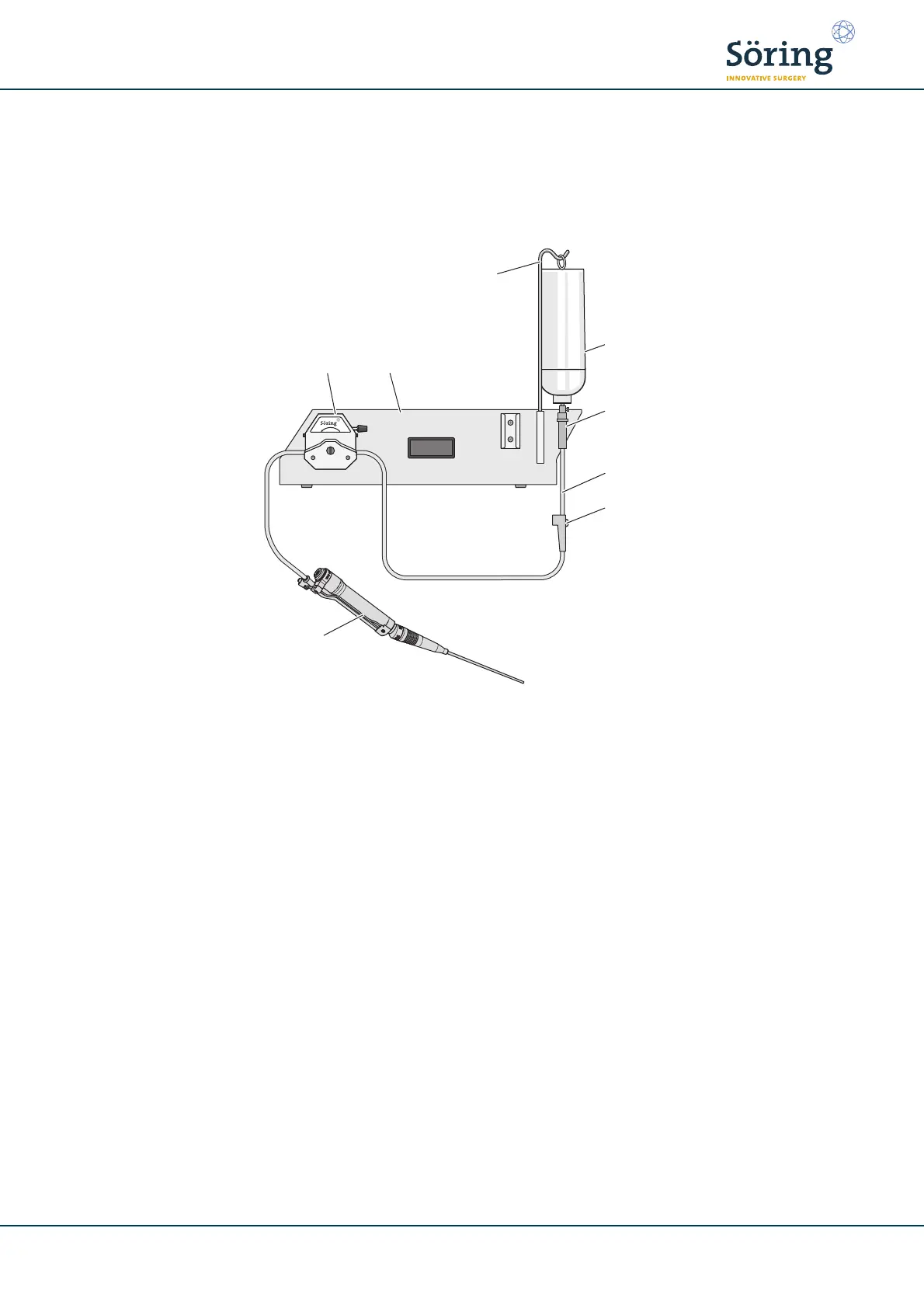

Fig. 5.1 Connection principle for irrigation
Requirements
The instrument cable is connected to the instrument.
The irrigation tubing is connected to the instrument.
Procedure
1. Close the roller clamp on the irrigation tubing.
2. Insert the spike into the irrigation bottle.
3. Hang the irrigation bottle onto the irrigation holder.
4. Open the vent on the drip chamber and fill it up to a third full.
– The irrigation bottle is installed.
1 Irrigation pump
2 Ultrasonic generator
3 Irrigation holder
4 Irrigation bottle
5 Spike and drip chamber
6 Irrigation tubing
7 Roller clamp
8Instrument
8
3
4
5
6
7
21
