PR.NR.: = editable symbolic fi eld to choose the work program among the various pre-set programs.
This setting must be conducted when the machine is not in automatic start mode. There
are 12 operating programs. 7 unwind the material following the notches. 5 unwind the
material following the counts.
fi eld A = indicates the name assigned to the recipe selected in the PR.NR fi eld.:
F1 SAVE = this setting must be conducted when the machine is not in automatic start mode. It allows
to save the recipe selected in the PR.NR fi eld.:.
1 LENGHT BAG (mm) = the length of the bag is set in mm.
fi eld B = indicates the actual length of the last package made.
2 STOP NET (mm) = indicates after how many mm the mesh/fi lm unwinding must stop after reading
the reference notch to stop it on the cutting knife on the gripper.
This fi eld must be used if a notched program is selected in "PR.NR."
3 SPEED [V1, V2, V3] = indicates 3 possible speed curves based on which the mesh/fi lm is unwound.
V1 indicates the profi le with longer acceleration and deceleration, typical for packages
weighing 2.5 kg and more.
V2 indicates the profi le with intermediate acceleration and deceleration, typical for packa-
ges weighing between 1.5 kg and 2 kg.
V3 indicates the profi le with shorter acceleration and deceleration, typical for packages
weighing 1 kg.
4 SLOW SPEED INSERTION CORRECTION (mm)
5 WHITE BAND (mm) = indicates how many mm of white strip there are before the notch; the time
indicating after how long the photocell will be darkened will appear after this setting.
fi eld C = it indicates the disabling length of the notch reader.

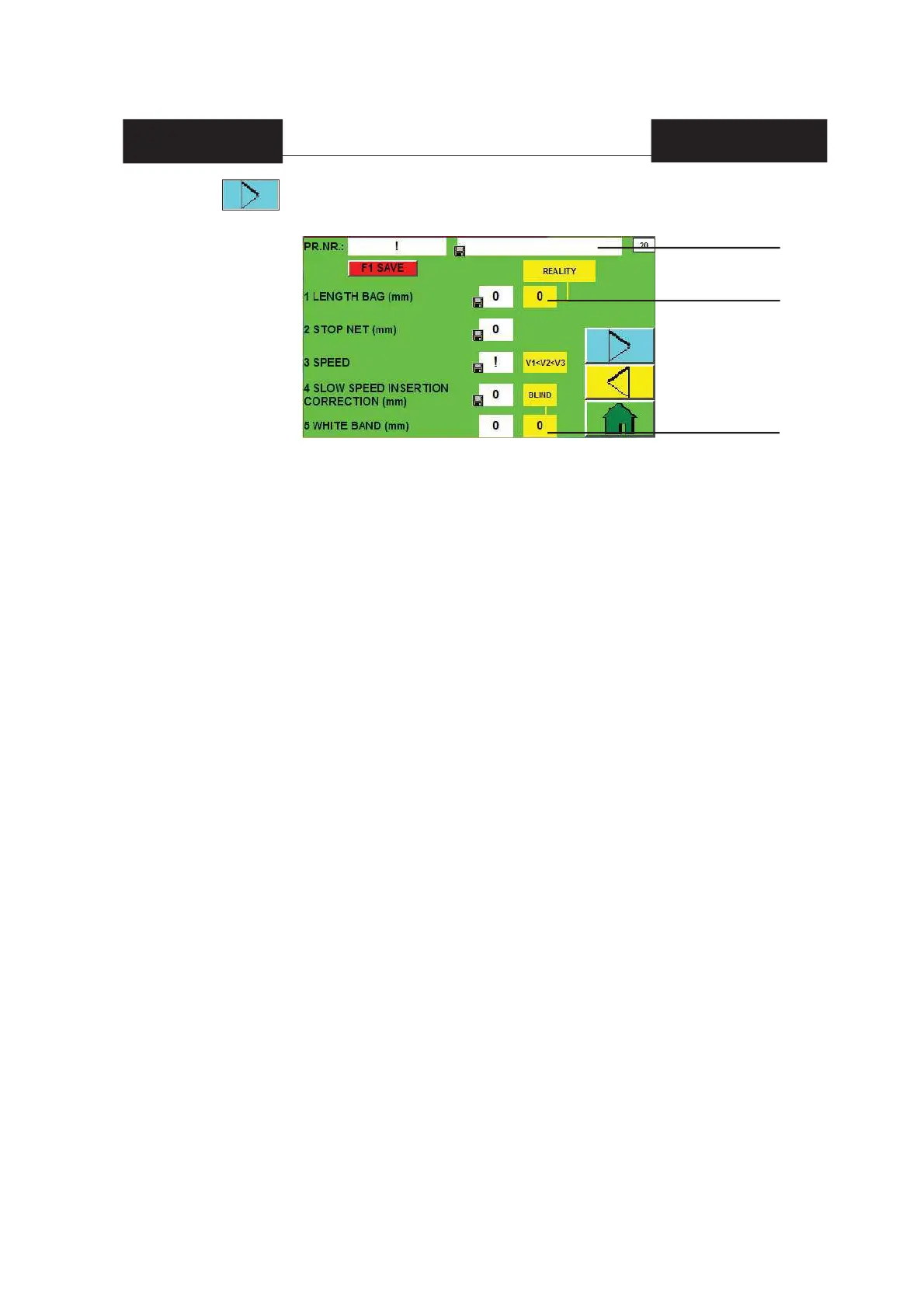

fi eld A
fi eld B
fi eld C
By pressing from page 9, page 20 will appear
