- Put the drawing belts back in their right position using the handwheel [M] (see fi g.7 chap.9).
9.3 Label loading
The machine can carry various (optional) electronic labelling devices. The instructions concerning
how to load the various kinds of labels and how to programme their printing appear on the specifi c
user and maintenance manuals for the label printers.
9.4 Manual welding
- use lever [L] to block the roller (see fi g.3 chap.9),
- insert the net/fi lm reel [K] in the reel holder shaft [A],
- use the reel holder trolley (see fi g.8 chap.9) to place the reel and reel holder shaft in work position,
- block the reel using stop [B] and fasten with ring nut [C] (see fi g.2 chap.9),
- position the shaft with the reel fi tted on the specifi c supports [D] and block with hooks [E] (see fi g.2
chap.9),
- overlap the net/fi lm,
- use the pneumatic valve lever [G] (see fi g.2 chap.9) to lower the press,
- press SPLICE SEALING [11] (see fi g.1 chap.8) (located on the electric control board, on the op-
posite side to the manual controls),
- use lever [L] to release the roller (see fi g. 3 chap. 9).

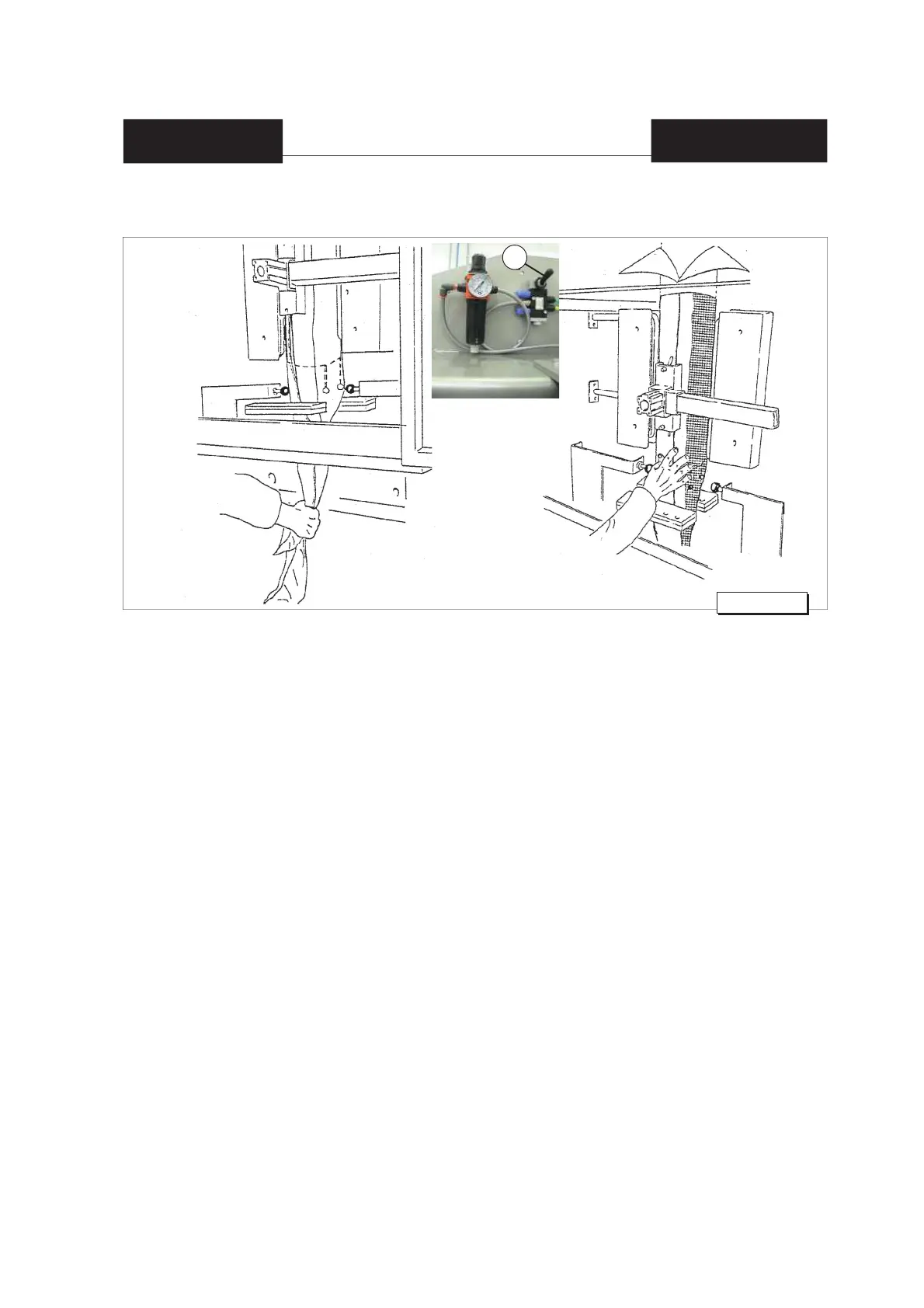

Fig.7 chap.9
M
