Power
PowerPower
Power
Amplifier
AmplifierAmplifier
Amplifier
710
710710
710
User Manual
Page 17
5
55

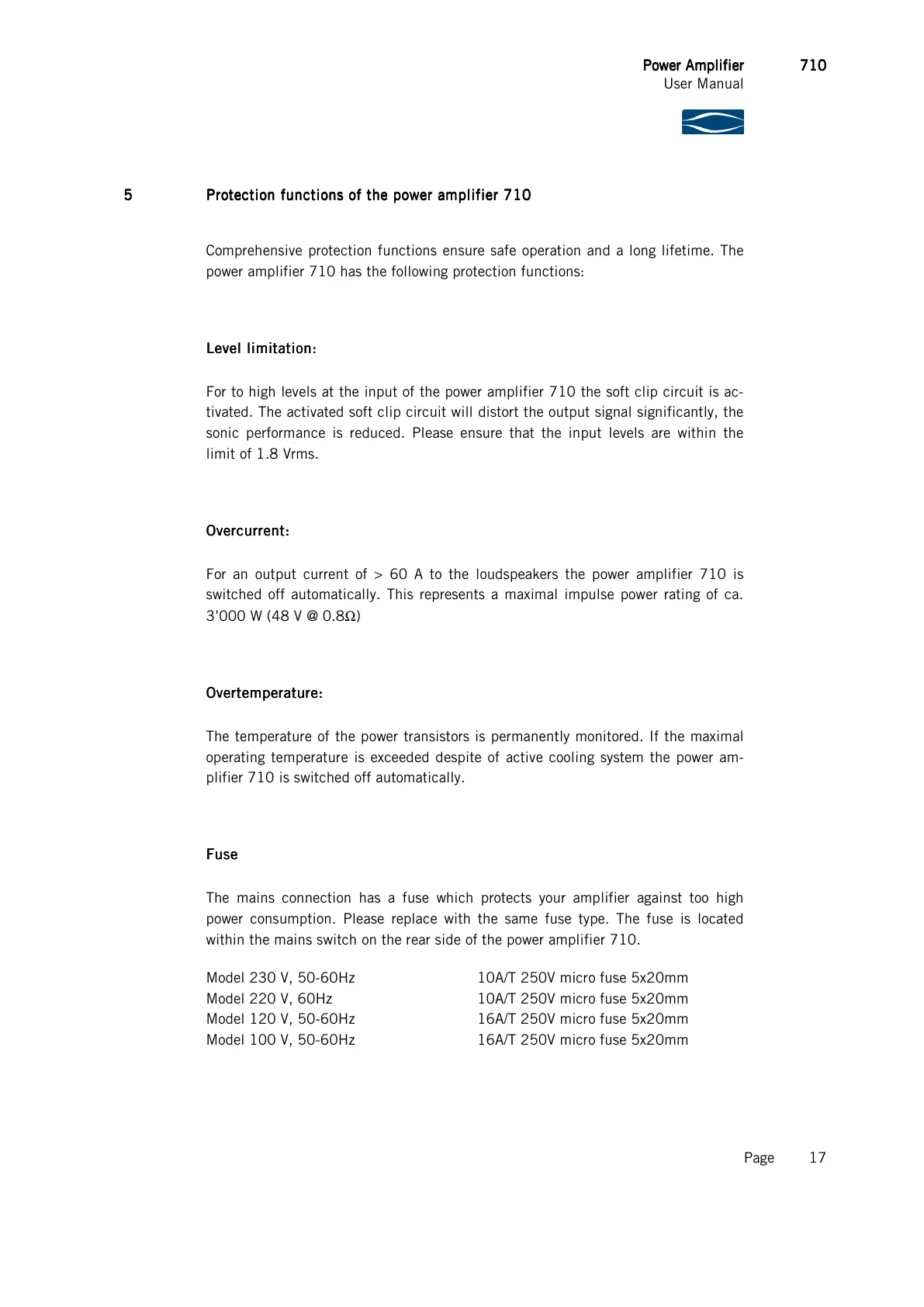

5 Protection functions of the
Protection functions of the Protection functions of the
Protection functions of the power
power power
power amplifier
amplifieramplifier
amplifier 710
710 710
710
Comprehensive protection functions ensure safe operation and a long lifetime. The
power amplifier 710 has the following protection functions:
Level limitation
Level limitationLevel limitation
Level limitation:
::
:
For to high levels at the input of the power amplifier 710 the soft clip circuit is ac-
tivated. The activated soft clip circuit will distort the output signal significantly, the
sonic performance is reduced. Please ensure that the input levels are within the
limit of 1.8 Vrms.
Overcurrent
OvercurrentOvercurrent
Overcurrent:
::
:
For an output current of > 60 A to the loudspeakers the power amplifier 710 is
switched off automatically. This represents a maximal impulse power rating of ca.
3’000 W (48 V @ 0.8Ω)
Overtem
OvertemOvertem
Overtemperature
peratureperature
perature:
::
:
The temperature of the power transistors is permanently monitored. If the maximal
operating temperature is exceeded despite of active cooling system the power am-
plifier 710 is switched off automatically.
Fuse
FuseFuse
Fuse
The mains connection has a fuse which protects your amplifier against too high
power consumption. Please replace with the same fuse type. The fuse is located
within the mains switch on the rear side of the power amplifier 710.
Model 230 V, 50-60Hz 10A/T 250V micro fuse 5x20mm
Model 220 V, 60Hz 10A/T 250V micro fuse 5x20mm
Model 120 V, 50-60Hz 16A/T 250V micro fuse 5x20mm
Model 100 V, 50-60Hz 16A/T 250V micro fuse 5x20mm
