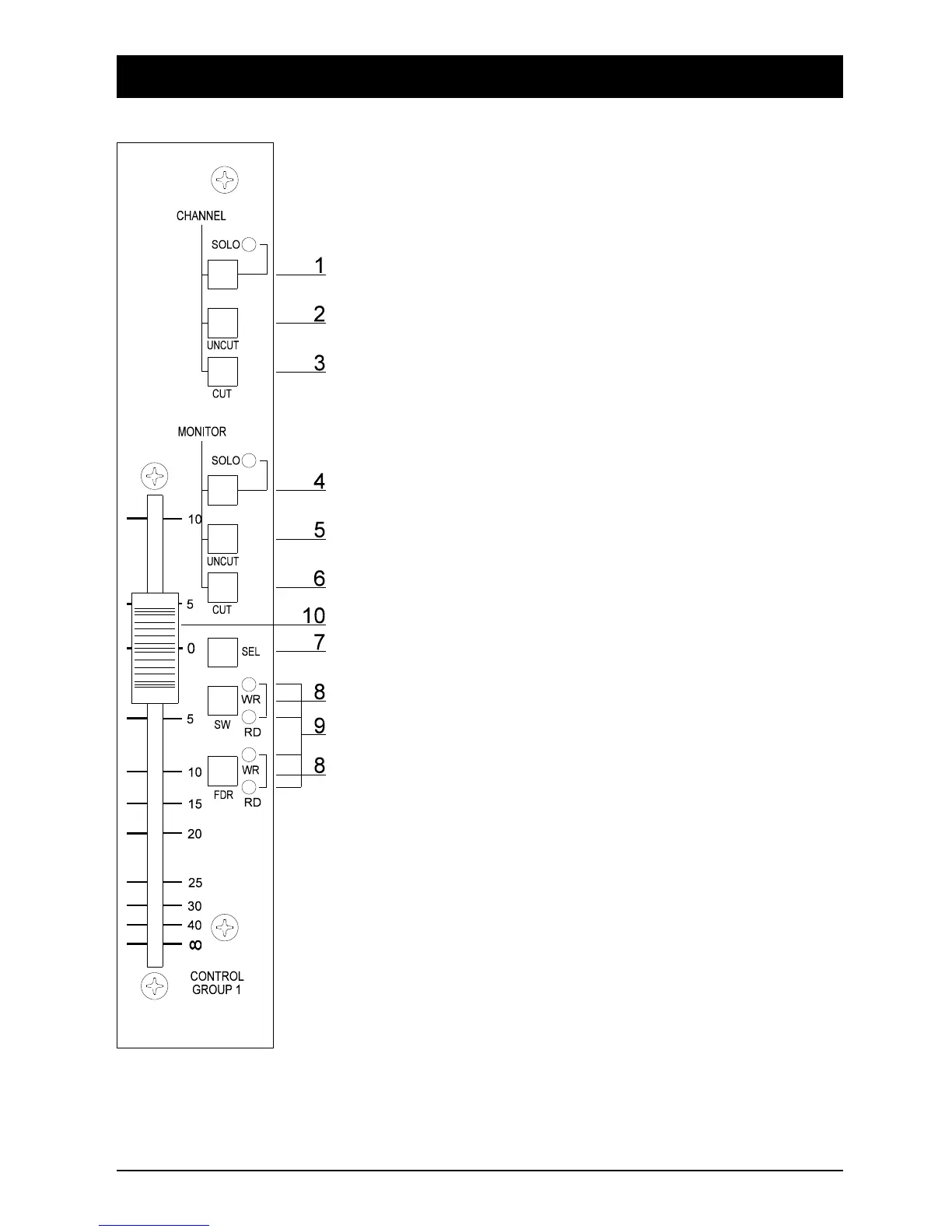

Control Groups
There are four Control Groups. Each Mono Input strip may be assigned to one of
the Control Groups at a time, or assigned to none of them.
Channel
1
Pressing the SOLO switch will put all of the Channels of the Mono Inputs which
are assigned to this particular Control Group into Solo mode: the solo mode will be
either Solo or Solo-in-place, depending upon the status of the SIP switch on the
Stereo Master panel.
2
Pressing the UNCUT switch will release any Cut Channels on Mono Inputs
which are assigned to the Control Group in question.
3
Pressing the CUT switch will Cut any Channels on Mono Inputs which are
assigned to the Control Group in question.
Note: the Uncut and Cut functions are momentary and do not force the state of the
assigned channels after they have been pressed.
Monitor
4
Pressing the SOLO switch will put all of the Monitors of the Mono Inputs which
are assigned to this particular Control Group into Solo mode: the solo mode will be
either Solo or Solo-in-place, depending upon the status of the SIP switch on the
Stereo Master panel.
5
Pressing the UNCUT switch will release any cut Monitors on Mono Inputs
which are assigned to the Control Group in question.
6
Pressing the CUT switch will Cut any Monitors on Mono Inputs which are
assigned to the Control Group in question.
Note: the Uncut and Cut functions are momentary and do not force the state of the
assigned monitors after they have been pressed.
Fader Disengage
7
The SEL switch is used to temporarily disengage the Control Group fader:
press and hold the SEL button on the appropriate Control Group panel, and move
the fader to a new position, then release the SEL button.
4.28 DC2020 Control Groups
