Soundcraft EFX/EPM User Guide Issue 1210

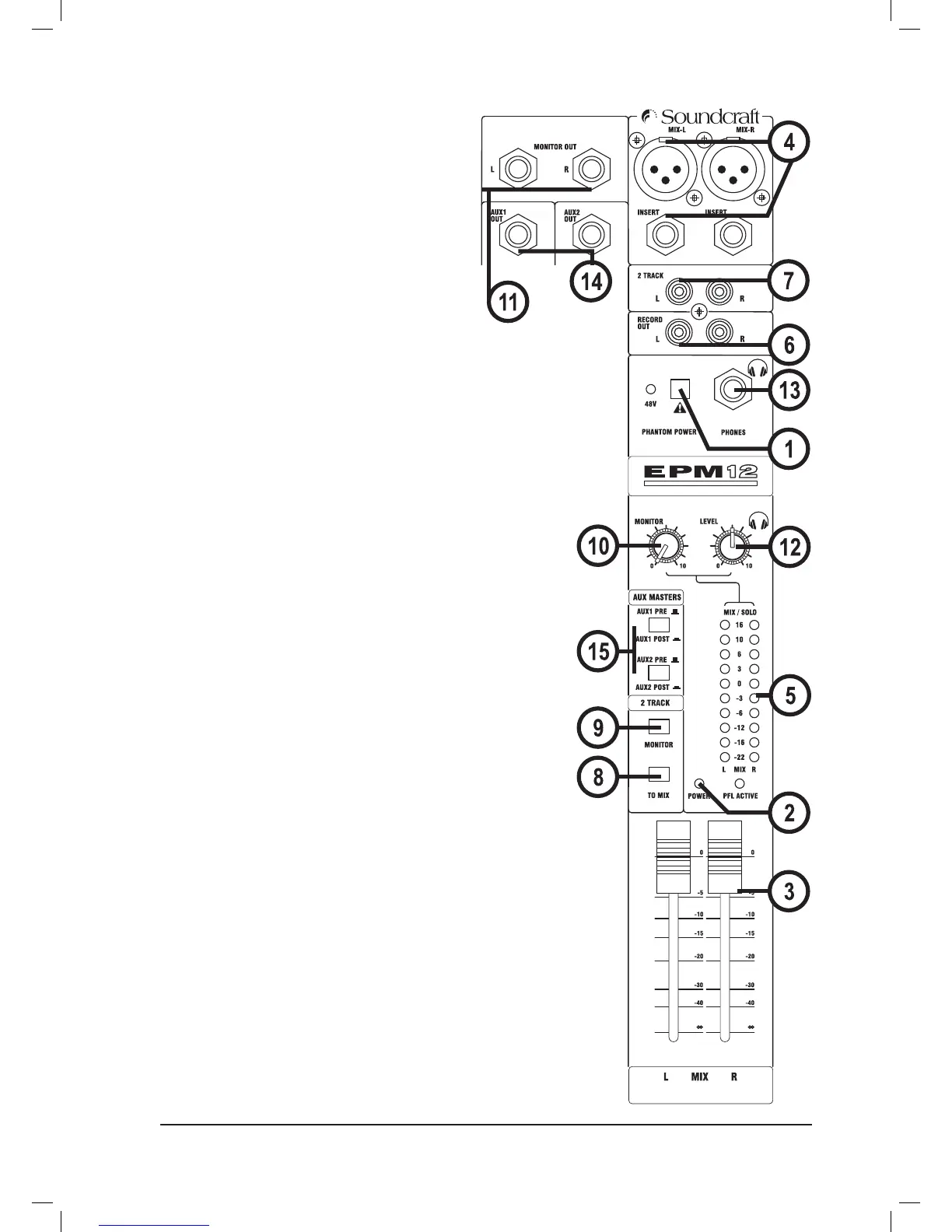

6 RECORD OUTPUTS
These two RCA outputs carry a copy of the MIX L
and MIX R signals. They
allow the use of a recording device, e.g. DAT player,
Minidisc recorder etc.
7 2 TRACK IN
These two RCA phono sockets are unbalanced Left
and Right line-level inputs, used for connecting a
playback device.
8 2 TRACK TO MIX
Press this switch to route the 2 Track in signals,
connected to the Left and Right RCA sockets 7, to
the MIX .
9 MONITOR 2 TRACK
Press this switch to route the 2 Track signal to the monitor and phones,
over-riding the default Monitor/Phones signal.
10 MONITOR LEVEL
This control sets the level to the MONITOR LEFT & RIGHT outputs.
If headphones are plugged into the PHONES jack, the headphone
level will track the Monitor Level.
11 MONITOR OUTPUTS
The Monitor Outputs are on 3-pole A gauge jacks and are balanced
connections.
12 PHONES LEVEL
This control sets the output level to the Headphone outputs. If
headphones are plugged into the PHONES jack, then the knob sets
a comfortable headphone listening level without affecting the Moni-
tor output levels.
13 HEADPHONES JACK
The PHONES output is a 3-pole A gauge jack, wired as a stereo
output as shown, ideally for headphones of 150 or greater. 8
headphones are not recommended.
14 AUX 1 OUTPUT (AND AUX 2 ON EPM)
This output is on a 3-pole A gauge jack and is an impedance-balanced
output.
15 AUX 1 PRE/POST SWITCH (AND AUX 2 ON EPM)
This switch globally switches the AUX 1 sends, on all of the input
modules, to be either pre-fade or post-fade.
