Soundcraft EFX/EPM User Guide Issue 1210

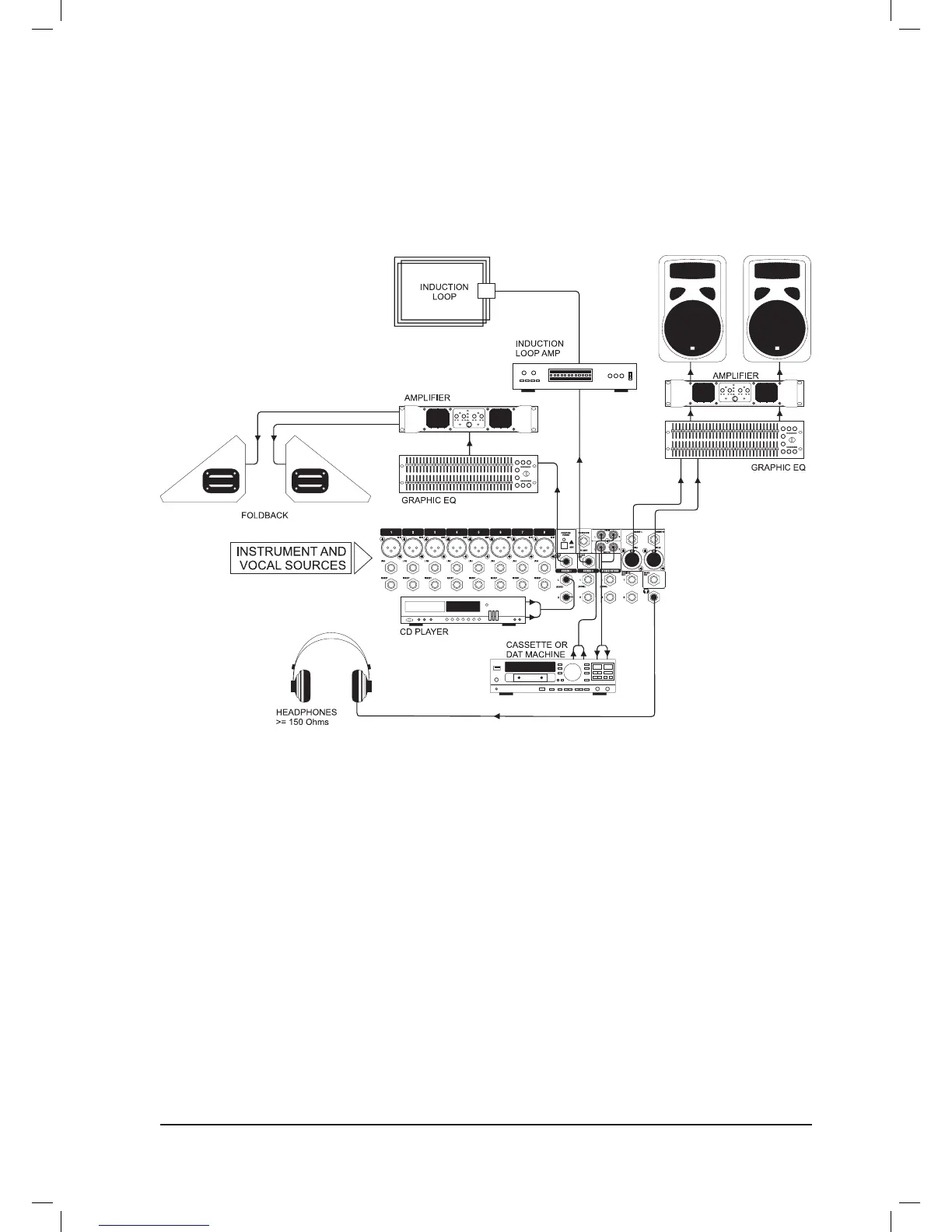

APPLICATION 3 - PLACES OF WORSHIP (using EFX)
This conguration uses the FX OUT BUS (or Aux 2 on EPM) output to drive an induction loop for the hearing
impaired (it is assumed that the FX processor isn’t being used in this conguration). Aux 1 output is used to
generate foldback monitoring for the speaker/singer. The main outputs are used to drive the main speaker
system. The record and playback connections are used to pass audio to and from a DAT machine or
Cassette Recorder.

SoundCraft EFX Specifications

General

Channels quantity	10 channels

Weight and Dimensions

Depth	362 mm
Width	91 mm
Height	330 mm
Weight	4600 g
