5.1: INPUT CONTROLS
CHANNEL CONTROLS > INPUT CONTROLS
5.1: INPUT CONTROLS
Input channels take sources and route/process them. The sources catered for by the Signature
consoles includes mono (single channel) sources, stereo sources, and internal sources (the FX Return
channel).

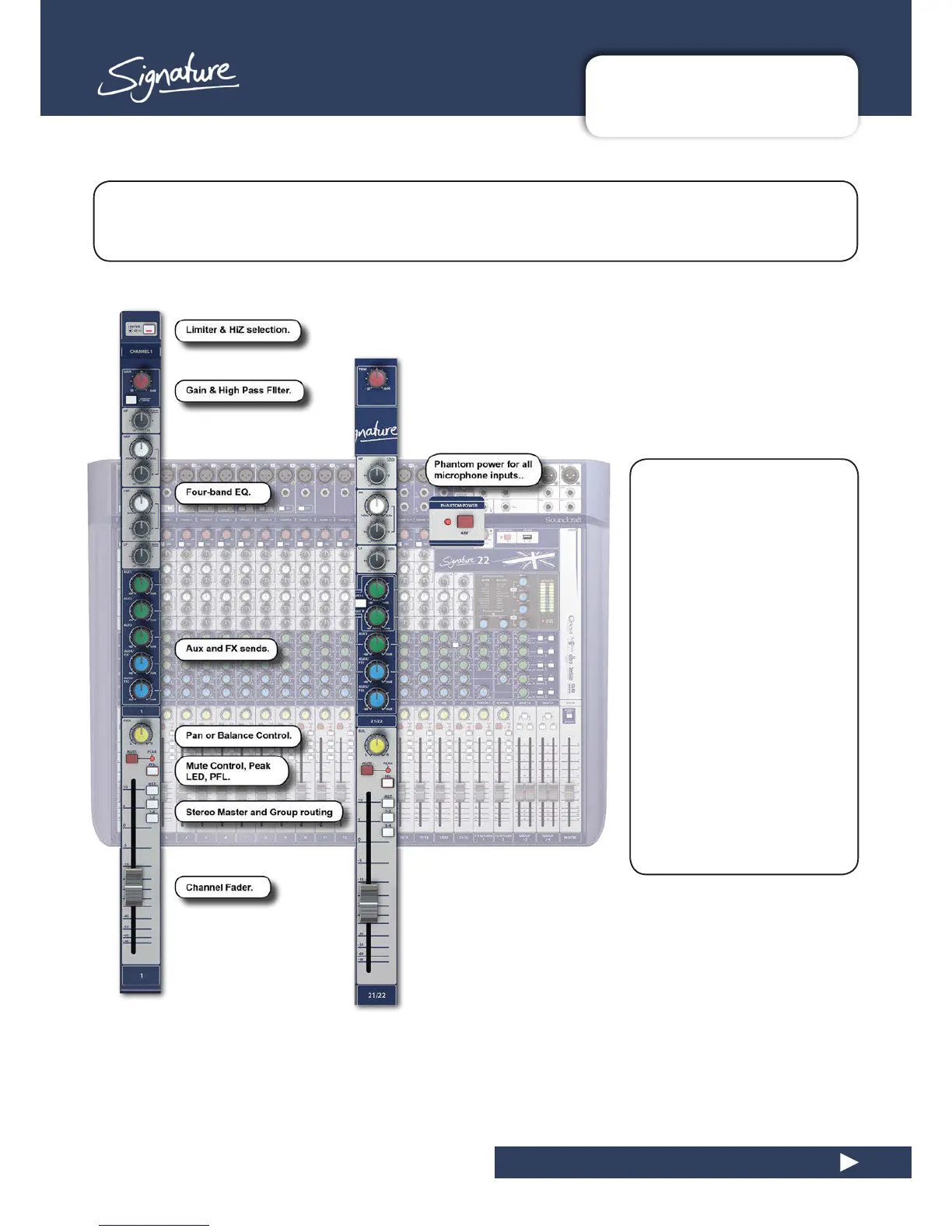

The controls are shown in
the order they appear on
the console channel
strip - from top to bottom.
This is not necessarily
signal path order. Please
refer to the relevant signal
path diagram (section 4).
Controls common to all
input channel types are
documented in the Mono
Input Channel controls
section (5.1.1). Controls
orexplanationsspecicto
Stereo input channels and
the FX Return Channels
are documented in those
sections (5.1.2 and 5.1.3
respectively).

SoundCraft Signature 16 Specifications

General

Type	Analog
Channels	16
Mic Preamps	12
Aux Sends	4
Faders	100mm faders
Phantom Power	Yes
Subgroups	4
Headphone Outputs	1 x 1/4"
EQ Bands	3-band
Inputs - Line	8 x 1/4"
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR
Outputs - Other	4 Aux
Main Outputs	2
Monitor Outputs	2 x 1/4"
