8.0: LEXICON FX
LEXICON FX
8:0 LEXICON FX

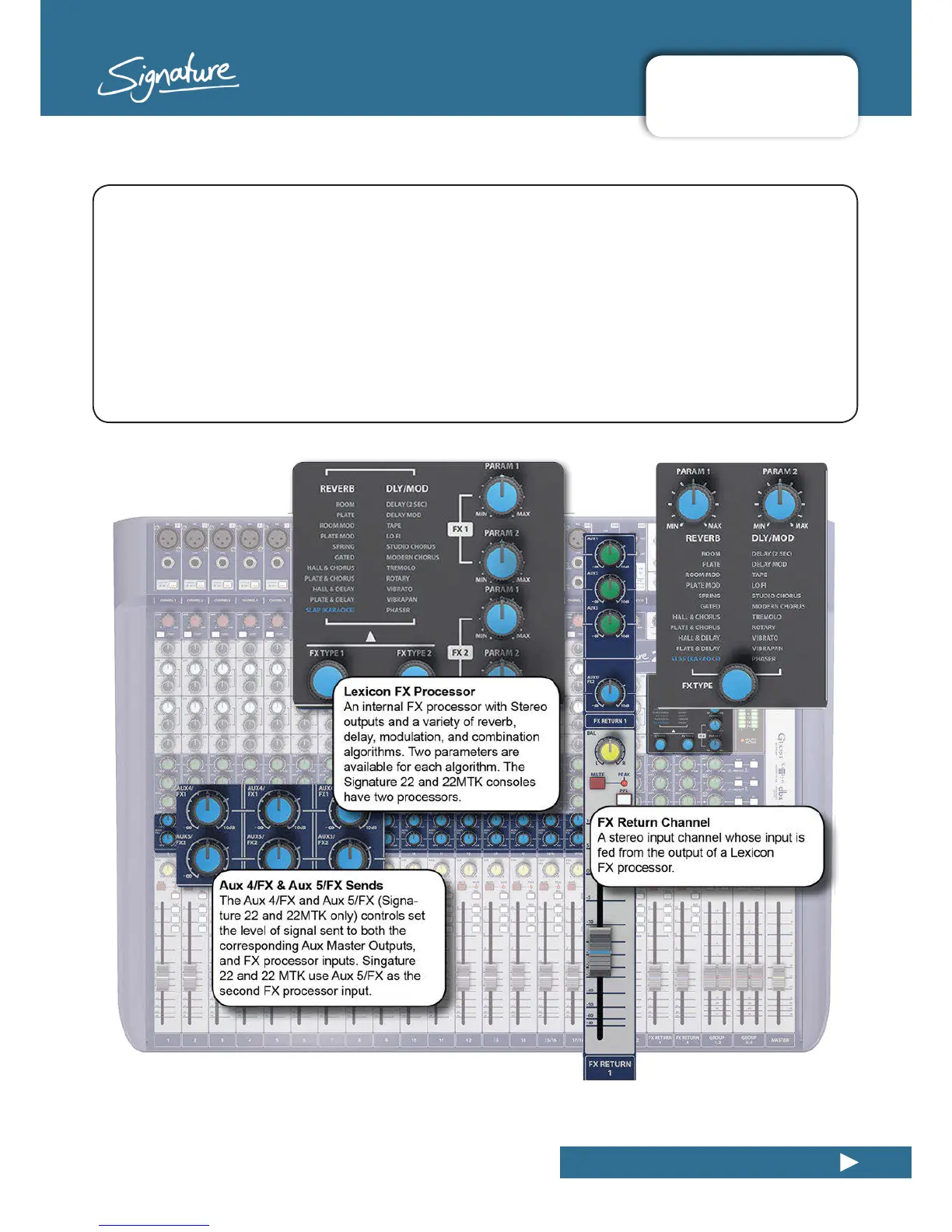

The Signature 16 console has one internal FX processor, and the Signature 22 and 22MTK consoles
have two (FX 1, FX 2) - with dedicated internal send and return routing. There are 22 different FX
algorithms available, each with two adjustable parameters mapped to the PARAM 1 and PARAM 2
controls.
For FX 1, Aux 4/FX Sends control input channel contributions to both the FX processor and the Aux 4
output. For FX 2 (Signature 22 and 22MTK only), Aux 5/FX Sends control input channel contributions
to both the FX 2 processor and the Aux 5 output.
An FX Return channel is a hard-wired stereo return channel for the output of the FX processor.
Signature 22 and 22 MTK consoles have two FX Return channels - one for each processor.

SoundCraft Signature 16 Specifications

General

Type	Analog
Channels	16
Mic Preamps	12
Aux Sends	4
Faders	100mm faders
Phantom Power	Yes
Subgroups	4
Headphone Outputs	1 x 1/4"
EQ Bands	3-band
Inputs - Line	8 x 1/4"
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR
Outputs - Other	4 Aux
Main Outputs	2
Monitor Outputs	2 x 1/4"
