6.0: SOLO AND MONITORING
SOLO AND MONITORING
6.0: SOLO AND MONITORING

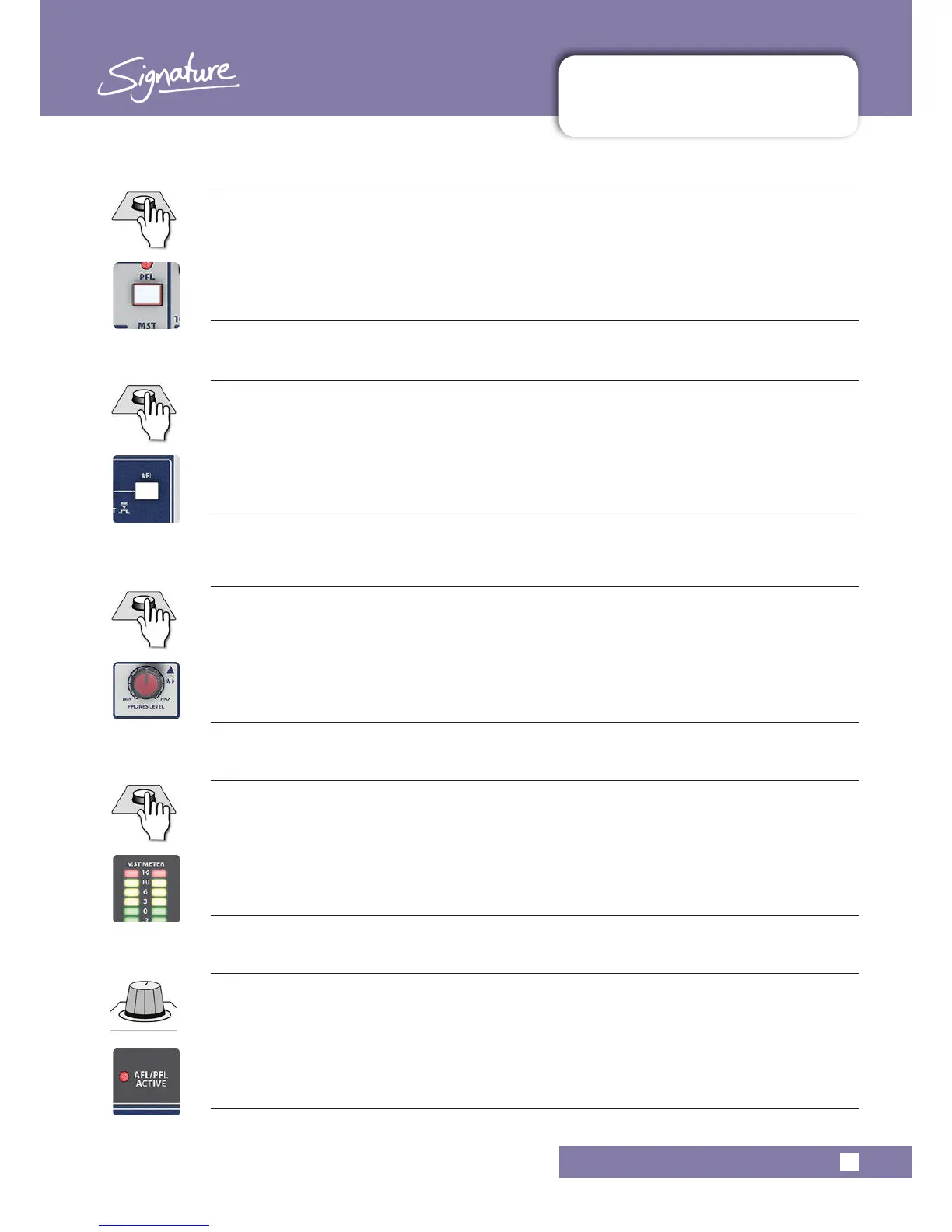

BARGRAPH METERING
Bargraph display of current monitoring (headphones) signal
If a Solo (PFL or AFL) is active then - just like the headphone output - meters will display Solo bus levels.
Otherwise they display the Master Stereo bus levels.
AFL
Switch the After-Fader Listen function
Send this Auxiliary Master output's signal to the Solo bus from a post-fade tap and switch the headphone
output source to the Solo bus.
PHONES LEVEL
Adjust the level of the headphone output
The headphone output will either be the Master Stereo Output (default) or the Solo bus - if a Solo is active.
PFL
Enable the Pre-Fade Listen function
Send this input channel's signal to the Solo Bus - A pre-fade, pre-mute, post EQ signal tap. An active PFL (or AFL)
switches the headphone output source to the Solo Bus. Active PFL button red indicator LEDs show active PFLs.
PFL/AFL LED
Lights when a PFL or AFL is active
Any active solo will cause this LED to light up. Leaving a Solo on is a common cause of monitoring problems.
Check this LED if the monitoring output is not as expected.

SoundCraft Signature 16 Specifications

General

Type	Analog
Channels	16
Mic Preamps	12
Aux Sends	4
Faders	100mm faders
Phantom Power	Yes
Subgroups	4
Headphone Outputs	1 x 1/4"
EQ Bands	3-band
Inputs - Line	8 x 1/4"
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR
Outputs - Other	4 Aux
Main Outputs	2
Monitor Outputs	2 x 1/4"
