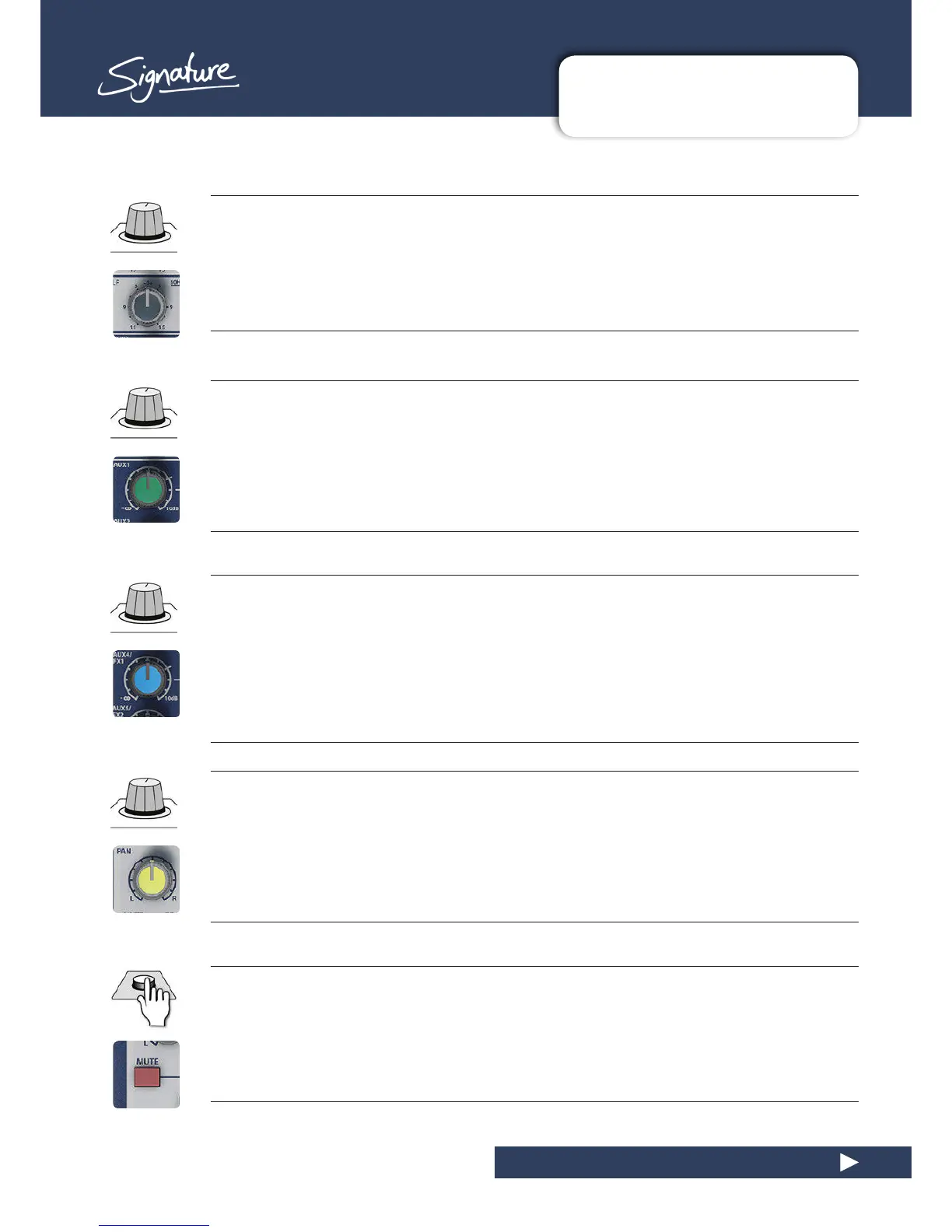

5.1.1: MONO INPUT CONTROLS
CHANNEL CONTROLS > MONO INPUT CONTROLS
5.1.1: MONO INPUT CONTROLS
LF Level
Adjusttheboost/attenuationofthelowfrequencyshelvinglter
The LF shelving filter has a fixed frequency of 60Hz. Frequencies below this will be boosted or attenuated
depending on the control setting. With this Sapphyre asymmetric EQ, there is a small boost at the filter frequency
on cut and a small cut on boost. See section 1.02 for more detail.
AUX1 / AUX2 / AUX3
Adjust the level of this channel's contribution to the Aux 1, Aux 2, and Aux 3 busses
An Auxiliary bus is a summed 'alternate' mix of any contributing channels. In other words - for example - the
console's Aux 1 output will consist of all channels whose Aux 1 controls are greater than -infinity (o) - mixed pro-
portionally according to the relative levels of all the Aux 1 controls. You could use this for a stage monitor mix, or a
'send' to an external FX processor, for example. The source for the Auxiliary bus send can be either post-fader or
pre-fade, as set by the button in the Auxiliary Masters section.
AUX4/FX, AUX5/FX
Adjust the level of this channel's contribution both to the Aux bus (as per Aux 1, 2, and 3), and the
Internal FX processor.
Signature 22 and 22MTX consoles have two internal FX processors and therefore have an additional Aux/FX send
(Aux5/FX). The Aux 4 bus and the FX bus (also Aux 5 / FX 2 busses for signature 22 / 22MTK) are independant,
but share the same Send level. The source for an FX bus send is always post-fader so that a source’s contribution
to an eect is proportional to its contribution to the mix. The Aux source can be swtiched Pre or post (as per
normal Aux send).
MUTE
Mute the signal
This is a pre-fade mute and so does not aect the USB send on the Signature 22MTK console. However, it will
mute all Aux bus contributions, as well as Master Stereo and Group contributions. When a channel is muted, the
Peak & Mute LED will light.
PAN
Adjust the signal's stereo position and group routing.
Pan determines both the signal's position on the Master (MST) Stereo output and the amount of signal sent to
odd-numbered (left) and even-numbered (right) group outputs. For example, with a channel's 1-2 and MST
routing switches engaged, turning the control right puts more of the signal in the right (MST) channel AND
the Group 2 bus. Turning the control fully right will route the signal fully to the right-hand master channel AND the
Group 2 bus.

SoundCraft Signature 16 Specifications

General

Type	Analog
Channels	16
Mic Preamps	12
Aux Sends	4
Faders	100mm faders
Phantom Power	Yes
Subgroups	4
Headphone Outputs	1 x 1/4"
EQ Bands	3-band
Inputs - Line	8 x 1/4"
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR
Outputs - Other	4 Aux
Main Outputs	2
Monitor Outputs	2 x 1/4"
