-5-
FRONT PANEL
The subwoofer output is an additional convenience when you
wish to add subwoofers to your audio system to
greatly enrich the bass sound.
It will perform with any unit operating in a 12 volt negative ground
electrical system.
FEATURES
!
!
!
!
!
!
!
!
!
!
!
!
All functions controled by one knob.
Volume Control with up to 5.5 Volts RMS of output.
Seven band equalizer with 10dB boost / Cut.
Low noise BI-FET op-amp design yields minimum
distortion.
Universal Half-DIN chassis for easy of installation.
High grade gold plated RCA jacks.
Subwoofer level control
Subwoofer frequency adjustable(50Hz-550Hz)
Main/Aux (CD/Aux) input selector.
Night illumination design
Function display ( VOLTAGE BAND FADER VOL
SUB VOL SUB FC).
,, ,,
,
-4-
Digi-Q
Select
Menu
Level
SUND
STREAM
Volume
7 Band Digital eQ
1. Voltage: No any adjust the LED display input voltage
2. Volume control: when you adjust the menu” you can adjust the
output level.
3. Input selector: you can push the menu when display CD or Aux
you turn the menu” can choose CD/Aux input.
4. Band selector: you can push the menu” when display band-. You
can turn the menu choose the band1 to band 7. Boost 10dB.
5. Sub level control: you can push the menu when the : “Sub
Vol” display. You turn the menu you can choose the sub level
output.
6. Sub frequency control: you can push the menu when display the
: SUBFC you can turn the menu adjust. The SUB frequency
from 50Hz to 550Hz.
“
“” .
“
“
“”
“”
“”
“”
“” “”

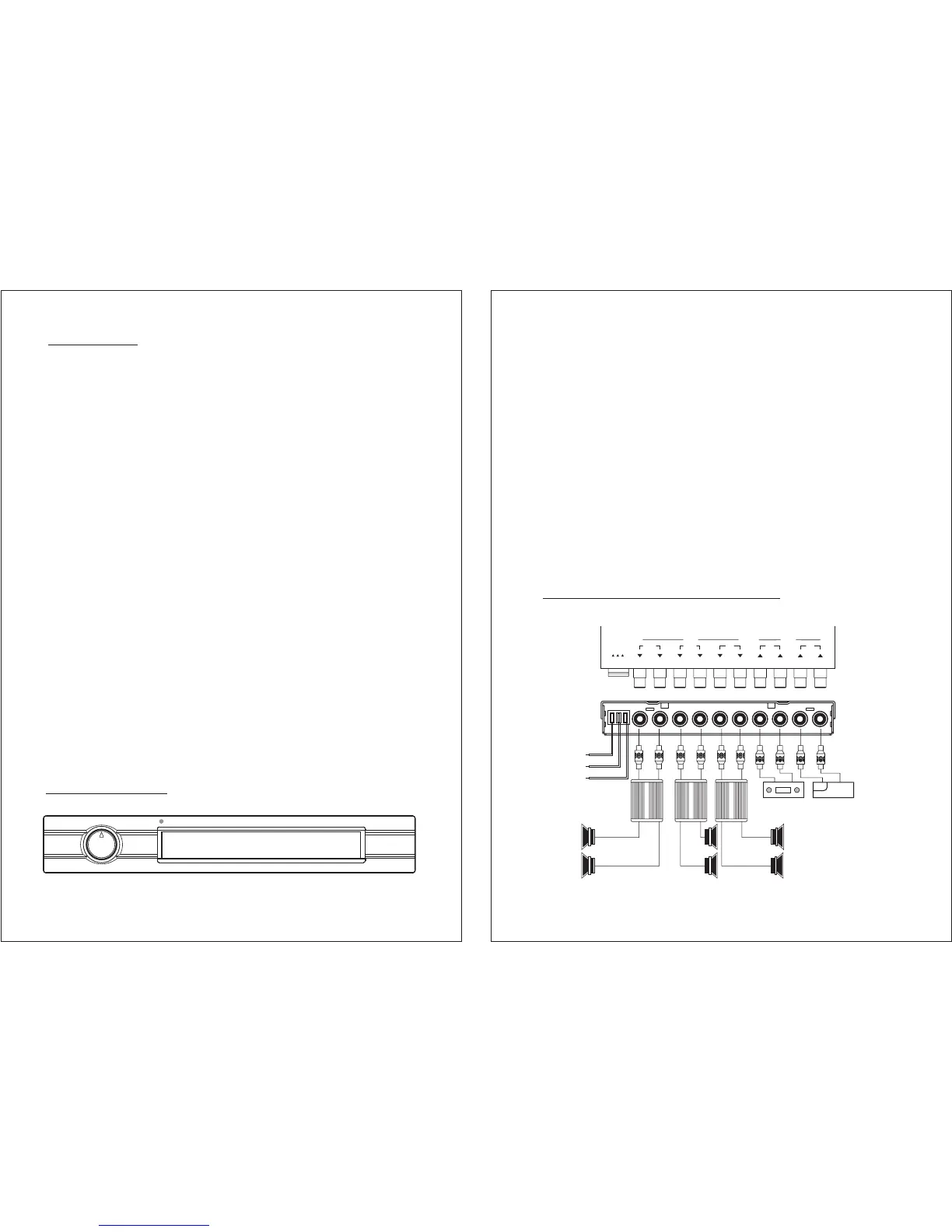

ELECTRICAL INSTALLATION
B+
REM
GND
R L LR
CD
AUX
FRONT
REAR
R L R L LR
SUB
GND
REM
B+
OUTPUT
INTPUT
FRONT
SPEAKER
REAR
SPEAKER
RADIO/CASSETTE
CD CHANGER
SUBWOOFER
SPEAKER
AMP
