25/75 Blend
70/30 Blend
Nitrogen Nitrogen
Storage
Tank
Nitrogen
Backup System
(By Others)
CO2 Storage Tank
"Bulk or Cylinders"
(By Others)
All N2-Gen Models
have Wall Mount
Option Available
Regulator with Pressure Gauge
(Supplied by Othes)
Gas Blender
(Supplied by Others)
Regulator with Pressure Gauge
(Supplied by Others)
1
2
3
4
5
All BeerBlast units should be installed
with 12" min. on either side of the Cabinet,
for access to the Units Control Panel
Notes:
All connections are 1/4" NPT unless otherwise specified.
(1)
See Drawing DD-TYP1P-NP-07KPH for the Nitrogen
(2)
Generators Design Data.
Refer to Drawing A01-BB-01 for 800-111-L, A01-0100-S,
(3)
and A01-0100-A for Tank Assembly Design Data.
ITEM#
STS PART# DESCRIPTION
1
NP-07KPH
N2-Gen 7KPH Assembly
2
A05-TYP1
100,200 and MPSA Mounting Bracket Set
3
800-111-L
100# Tank with Label and Packaging
4
A01-0100-S
Tank Manifold
5
A01-0100-A
Tank Strap Assembly
A
B
C
D
SCALE:
DATE:
APPROVED BY:
REVISION:
GA-TYP1P-NP07KPH
0
05/09/2015
PJS
1:14
DRAWN BY:
CHECKED BY:
FINISH:
MATERIAL:
WEIGHT:
1 of 2
B
NUMBER:
SIZE:
SHEET:
DATE: DATE:
PROJECT NAME;
South-Tek Systems
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF SOUTH-TEK SYSTEMS.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF SOUTH-
TEK SYSTEMS IS PROHIBITED.
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES:
A
B
C
D
1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
1

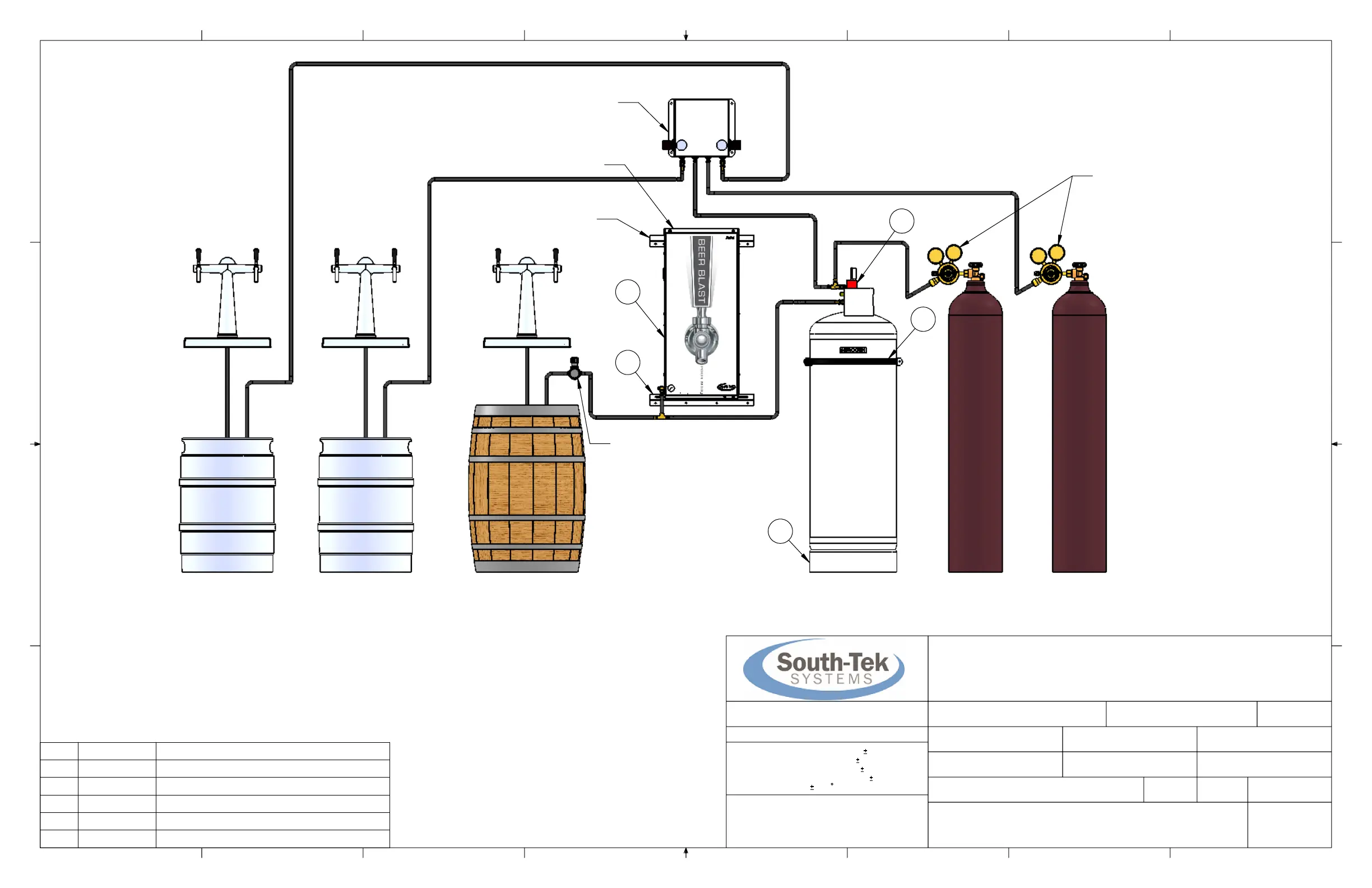

N2-Gen ® NP-07KPH
General Arrangement
Whole Number Dim's:
1
One Place Decimal:
.2
Two Place Decimals:
.02
Three Place Decimals:
.005
Angular:
.05
