4.8 NITROGEN CYLINDER BACK-UP (BEERBLAST™ 7/14KPH / N2-GEN™ 7/14KPH)
It is recommended that a backup system be installed in case of any unforeseen complications. A backup N2
Cylinder tank can be used instead of the generated nitrogen from the BeerBlast™ 7/14KPH / N2-GEN™ 7/14KPH.
It will allow the nitrogen to go through the Blender to achieve the desired results. To install the back-up tank, you
will need a cylinder with valve and regulator (regulated to 80 psig). Install the N2 back-up on the gas line on Port 4
of the BeerBlast™ 14KPH / N2-GEN™ 14KPH as follows:
1. The N2 back-up cylinder should have a high pressure regulator and ball valve on the output. It is
recommended to have a lockable ball valve and/or labeled for “Backup use only”.
2. If the Back-up system is turned on, the backup will fill the N2 Storage tank and flow to the BeerBlast™
14KPH / N2-GEN™ 14KPH Plus keeping the internal blender pressurized with Nitrogen.

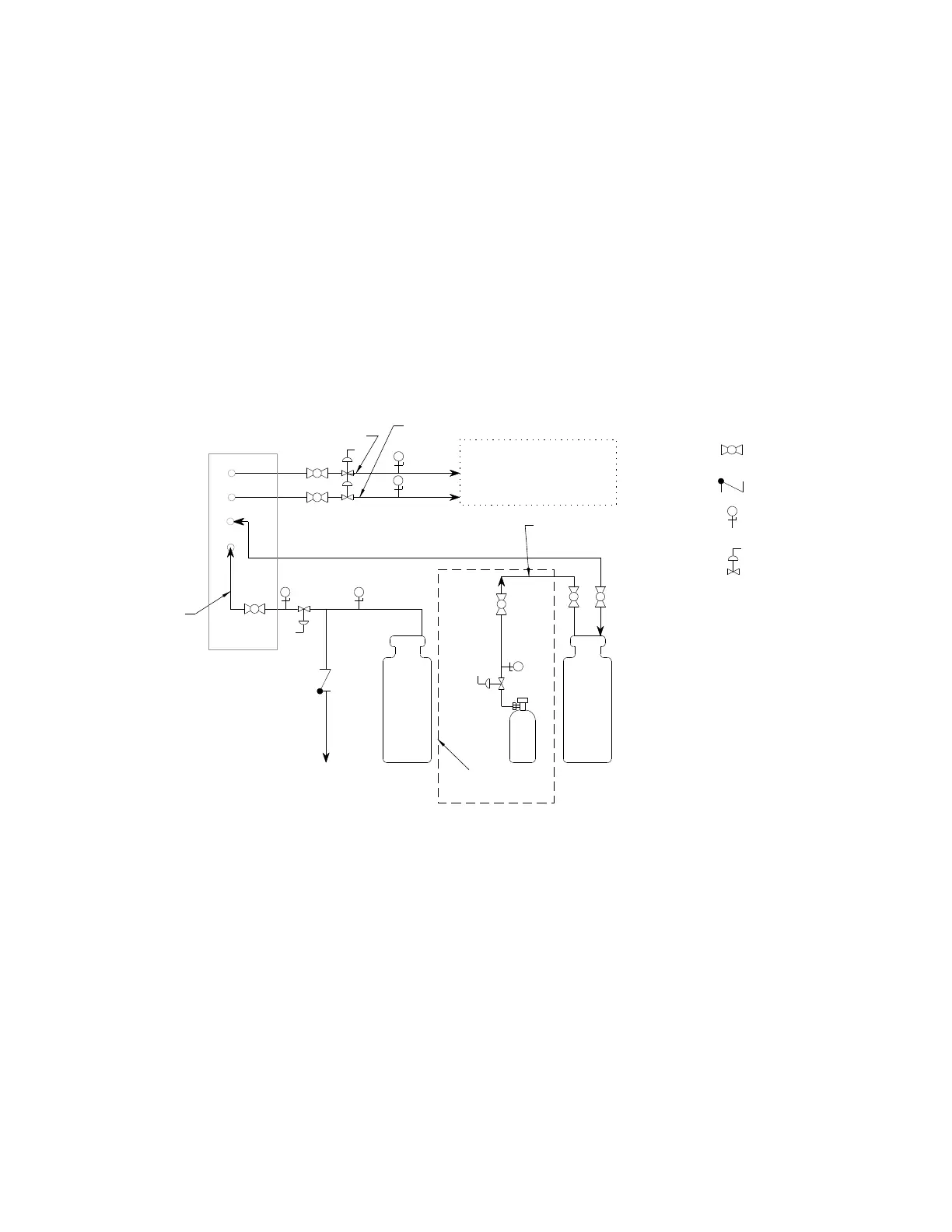

See below for visual piping connections:
4.9 START-UP PROCEDURES (BEERBLAST™ 7/14KPH / N2-GEN™ 7/14KPH)
It is necessary to use caution when working with pressurized gas, making sure that all fittings and gas lines are
installed correctly. Always leak check every line before using the system.
Note: Line leaks will cause the BeerBlast™ 7/14KPH / N2-GEN™ 7/14KPH to run excessively, shortening its
life and cause excess wear on the compressor.
The installation layout drawings are provided with your system in the documentation package of the system. For
electronic copies, please contact your local distributor. Review and make sure the setup installation are followed
per the installation layout drawings. Ensure that you follow the correction installation drawing per your system’s
design. In some cases, a N2 Bypass system for pre-filling is required in the installations to meet code.
If your system requirements are more complex, please consult your sales representative or equipment installer for
more detailed installation instructions.
To Draught System
Blend 1 (60/40)
Blend 2 (25/75)
Ball Valve
(On/Off)
Check Valve
Pressure
Gauge
Pressure
Regulator
80 psig
80-100 psig
To Carbonated
Drink System
Storage
Tank
Back-Up
Tank
Storage
Tank
N
N
CO
2
2
2
BeerBlast
Plus
TM
35psi*
45psi*
Back-up
N2 System
* Pressure requirements
may vary, consult your
installer
