Southwire 14060S - Meter Overview; Meter Controls Description; LCD Display Symbols

5

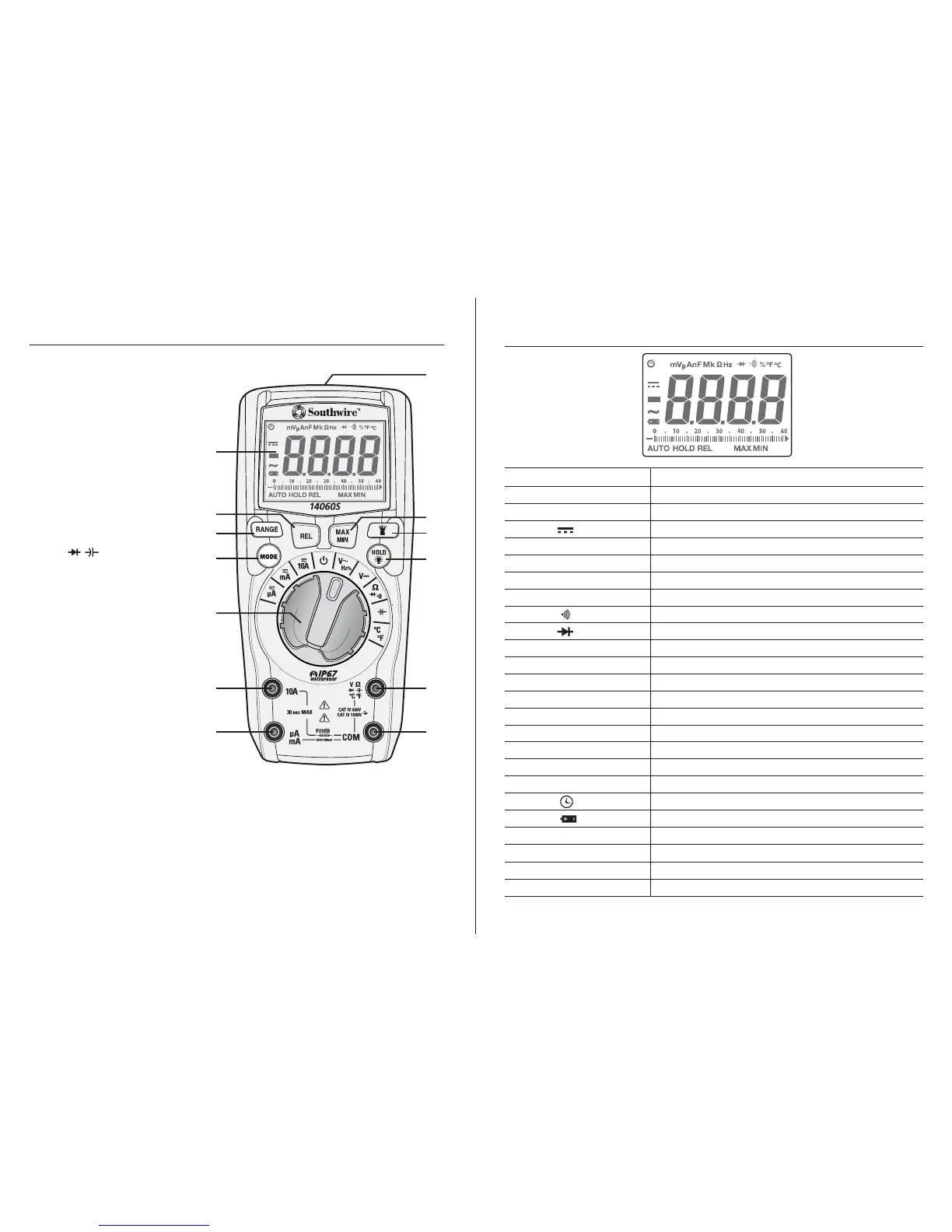

Meter Description
1.
2.
5.
6.
8.
9.
10.
12.
13.
11.
7.
4.
1. LCD display
2. REL button
3. RANGE button
4. MODE button
5. Rotary function switch
6. 10A input jack
7. µA, mA input jack
8. COM input jack
9. V/Ω/ / /°C °F
input jack
10. HOLD/Backlight button
11. Flashlight button
12. MAX/MIN button
13. Flashlight
3.
6
Symbols Used on LCD Display
V
A
~
-
Hz
%
Ω
F
°F
°C
n
µ
m
k
M
OL
AUTO
HOLD
MAX/MIN
REL
Volts
Amperes
Alternating current
Direct current
Minus sign
Hertz (frequency)
Percent (duty cycle)
Ohms
Continuity
Diode test
Farads (capacitance)
Degrees Fahrenheit
Degrees Celsius
nano (10
-9
)
micro (10
-6
)
milli (10
-3
)
kilo (10
3
)
mega (10
6
)
Overload
Auto Power Off
Low battery
Autoranging
Display hold
Maximum/Minimum
Relative
