Southwire 14060S - Maintenance and Specifications; Battery and Fuse Replacement

15
Operation cont.

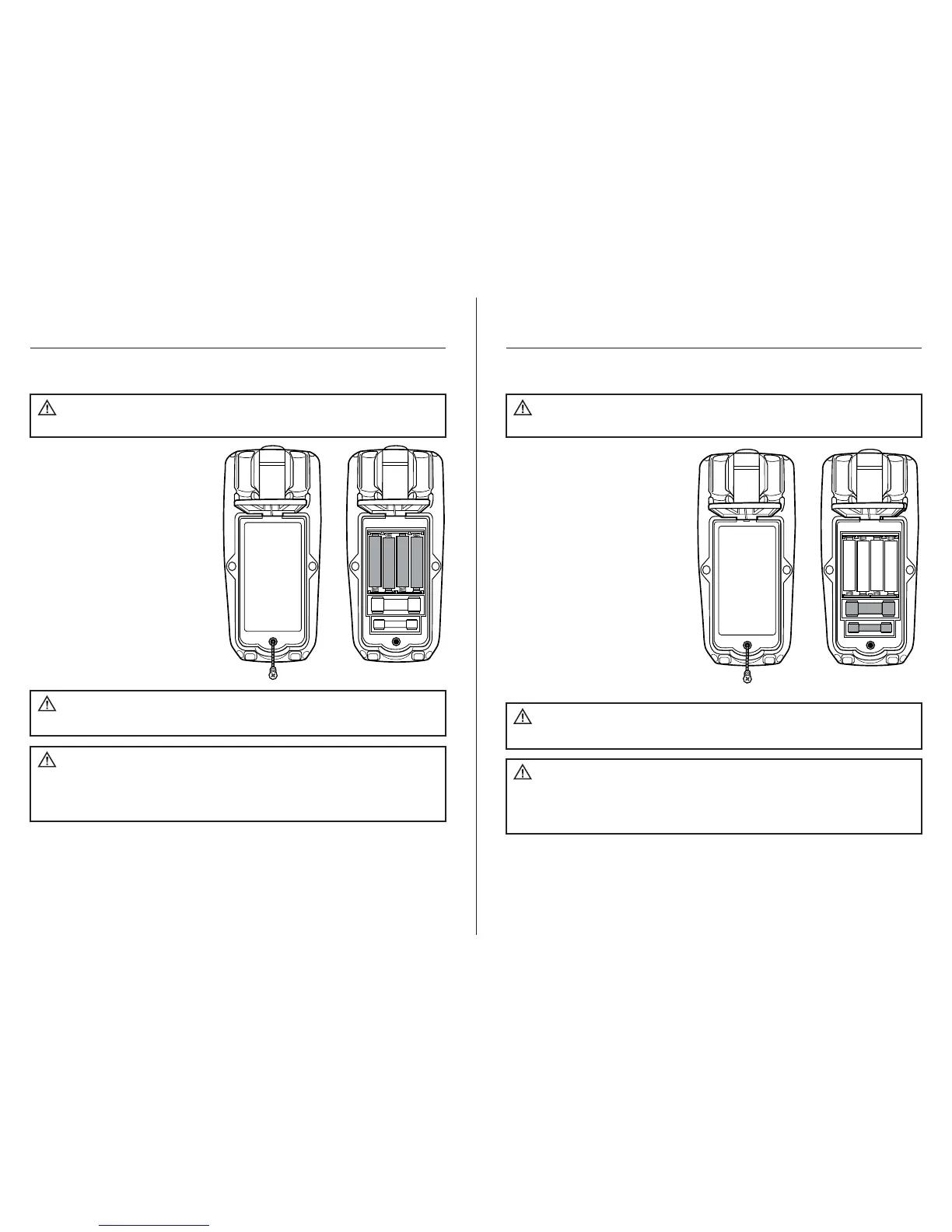

1. Lift up the tilt stand.
2. Loosen the Phillips
screw(s) on the battery/fuse
cover.
3. Remove the battery/fuse cover.
4. Replace the batteries with four
AAA batteries.
5. Observe polarity as shown
inside battery compartment.
6. Install the battery/fuse cover
and tighten the screw(s).
To avoid electric shock, do not operate the meter
until the battery/fuse cover is securely fastened to the meter.
WARNING:
When replacing the battery or fuses, be sure to secure
the battery compartment door firmly to maintain the waterproof and dust
proof integrity of the meter. Loose or overtightened screws, or an improperly
seated o-ring may compromise the meter's water and dust ingress protection.
WARNING:
To avoid electric shock, remove the test leads from
the meter before removing the battery/fuse cover.
WARNINGS:
Battery Replacement
16
Operation cont.
1. Lift up the tilt stand.
2. Loosen the Phillips screw(s)
on the battery/fuse cover.
3. Remove the battery/fuse cover.
4. Gently remove fuse and install
new fuse into the holder.
5. Always use a UL recognized
fuse of the proper size and
value: 800mA/1000V (6.3 x
32mm) fast blow for the
µA/mA ranges and 10A/1000V
(10 x 38mm) fast blow for the
10A range.
6. Install the back cover and
tighten the screw(s).
To avoid electric shock, do not operate meter until
the battery/fuse cover is securely fastened to the meter.
WARNING:
To avoid electric shock, remove the test leads from
the meter before removing the battery/fuse cover.
WARNINGS:
Fuse Replacement
When replacing the battery or fuses, be sure to secure
the battery compartment door firmly to maintain the waterproof and dust
proof integrity of the meter. Loose or overtightened screws, or an improperly
seated o-ring may compromise the meter's water and dust ingress protection.
WARNING:
