Sovema EM-3 - Hitch Point Connection; PTO Shaft Connection

Pag.13

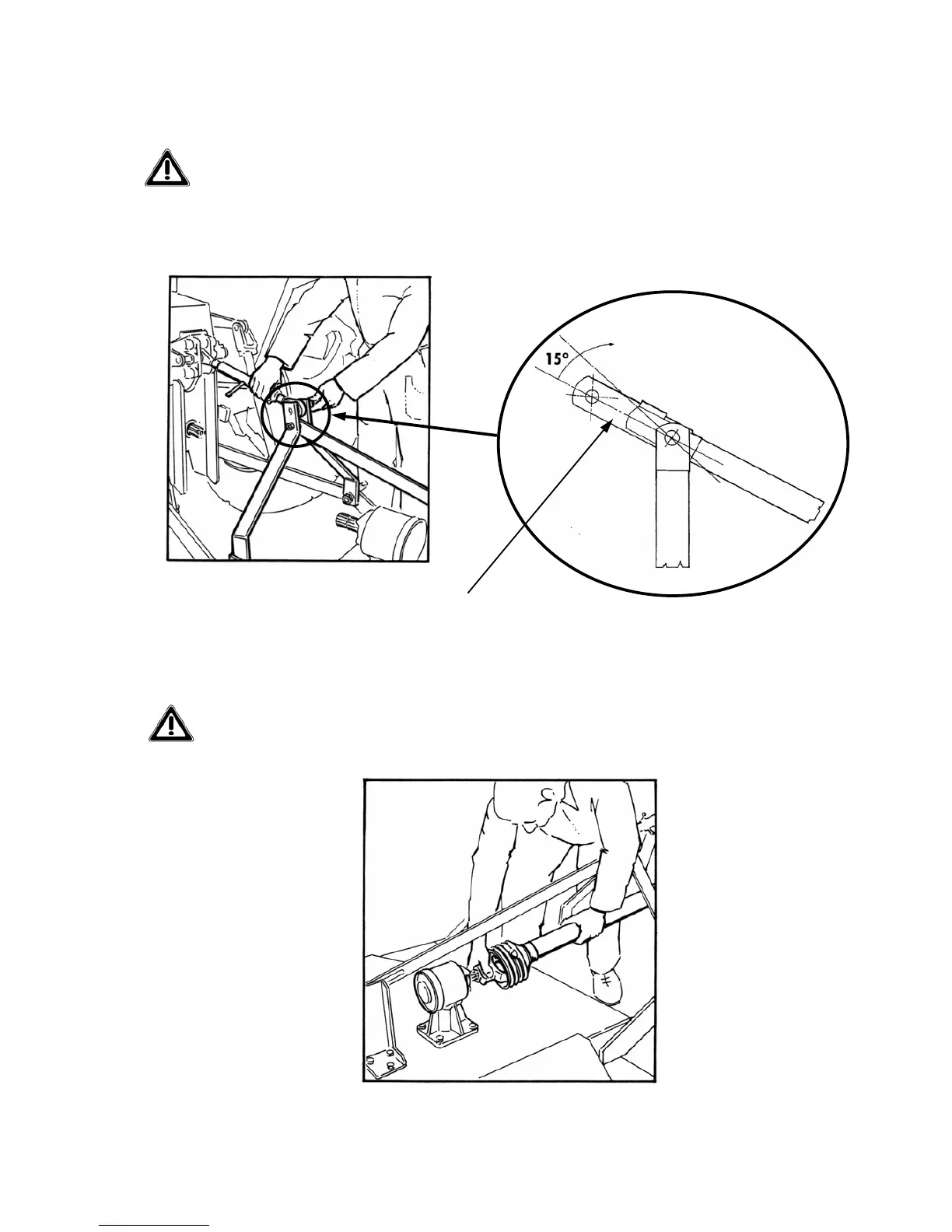

Connect the hitch point of the tractor to the floating upper plates of the machine using a
hitch pin and the hair clip pin (see fig. 2). This connection must guarantee a 15° inclina-
tion of the upper plates (see fig. 3) in order to let the machine adapt to the terrain and to
protect its frame from possible damage. The inclination is obtained by regulating the tie
rod of the hitch point of the tractor.
Connect the PTO shaft and be sure it is correctly connected to the tractor and the ma-
chine (see fig.4).
FLOATING UPPER
PLATES
FIG. 2
FIG. 3
FIG. 4
