CUTTING HEIGHT ADJUSTMENT

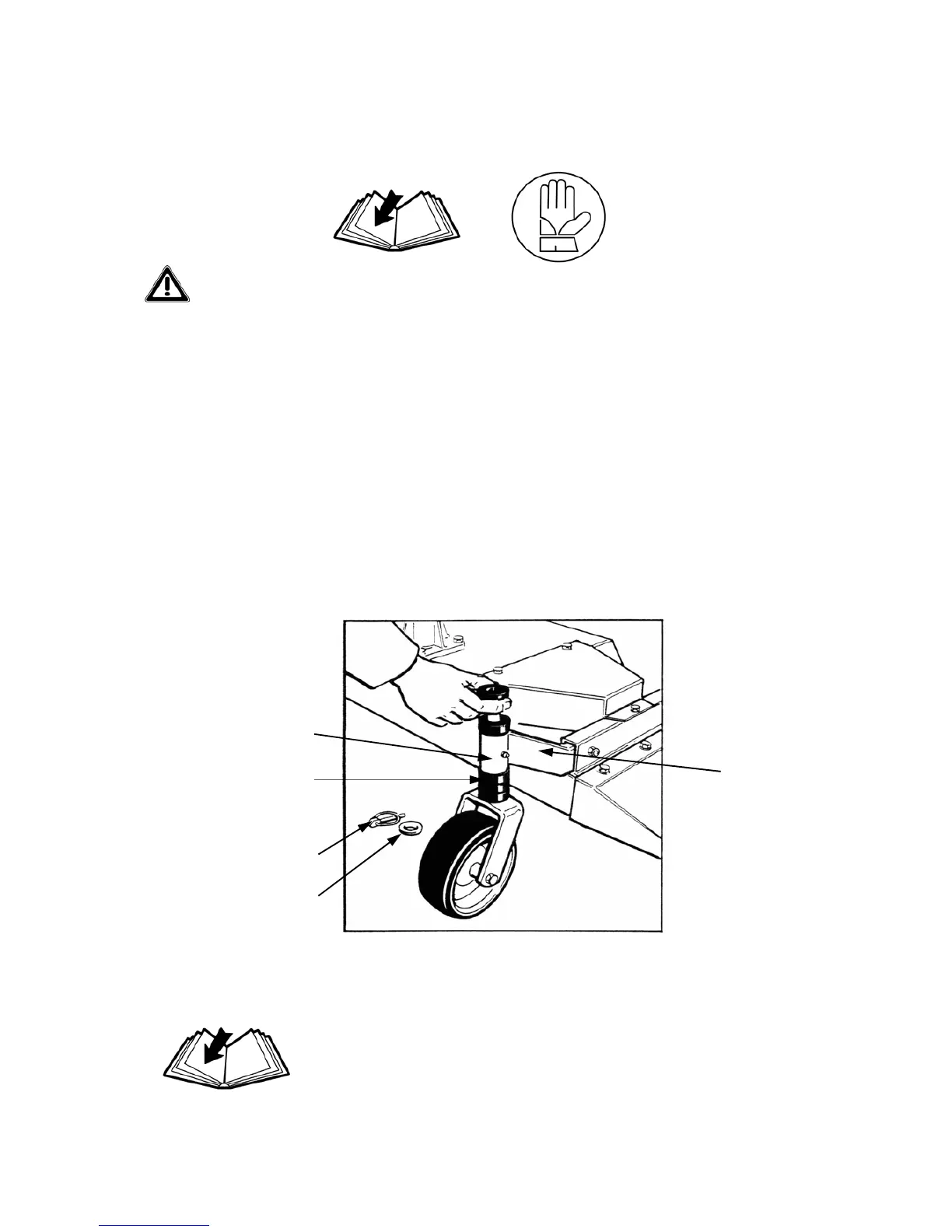

To adjust the cutting height of your machine, follow the next instructions (see fig. 1):
•
For each wheel unthread the split pin from the fork in which the cutting height regulation
spacers are threaded.
• If you wish to increase cutting height, add spacers under the bush of the support arms, for
each wheel.
• If you wish to reduce cutting height, add spacers over the bush of the support arms, for
each wheel.
• After concluding regulation as desired, insert the split pins in its respective forks.
To get uniformity on cut, the regulation described before
(by spacers) must be the same for the four wheels of the ma-
chine.
Pag.16
SUPPORT
ARSM
FIG. 1
BUSH
SPACERS
SPLIT PIN
WASHER
