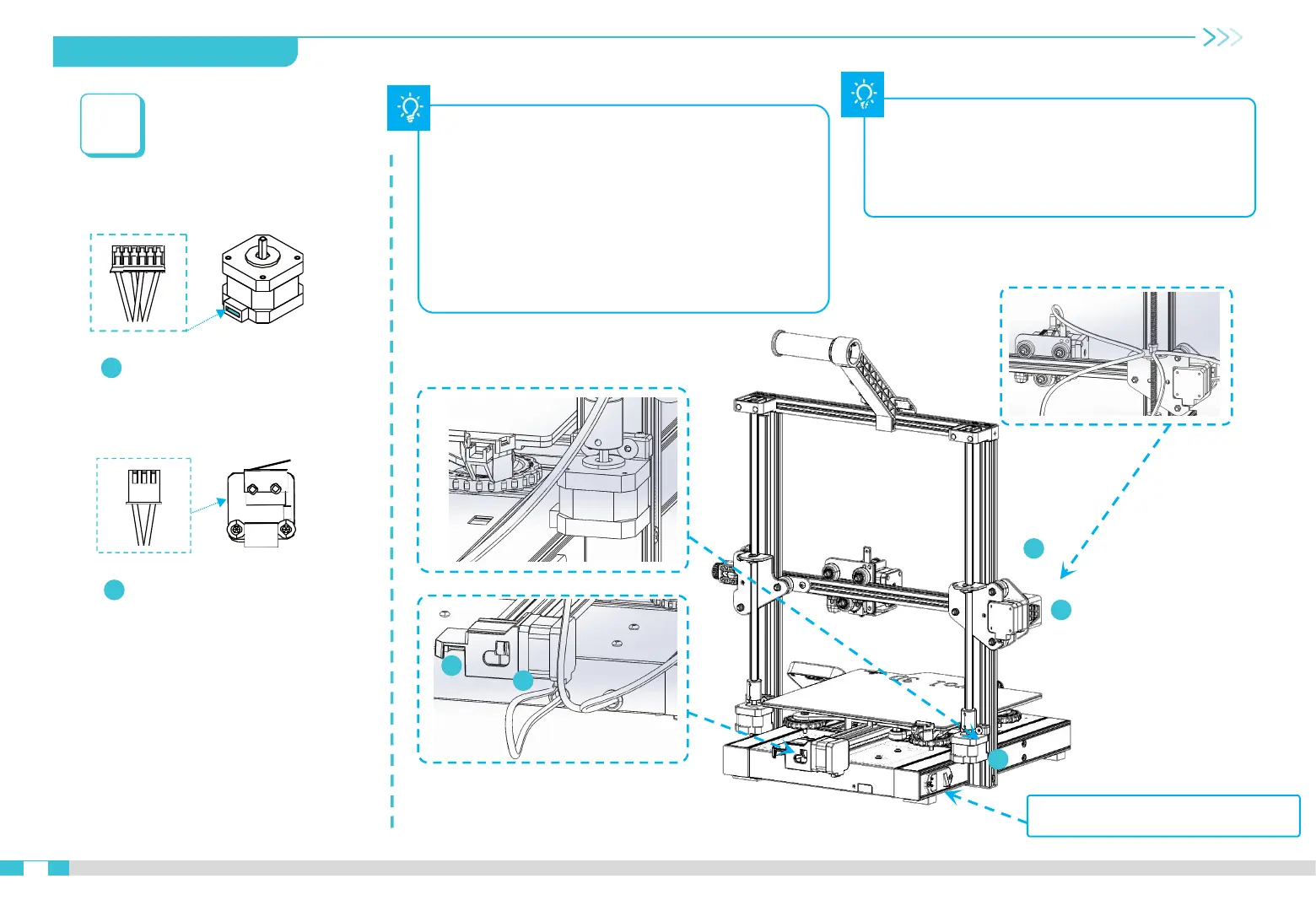

1. The z-axis motor cable is connected with the
mainboard through the metal plate opening of the
base. (as shown in figure A)
2. The hot bed cable, Y-axis motor cable and limit
switch cable should pass through the circular hole of
the base and connect with the mainboard.
5
08
Equipment wiring
XYZ axis motor line
4
XY axis limit switch
5
A
3.Use the zip tie, tie up the X-axis motor cable
and the limit switch cable with the back plate
through the hole on the back plate to make the
clean wire management. (as shown in Figure B)
4
4
5
X
5
Y
4
Y
Z
X
B
4. Connect the power cable.
8. Equipment Wiring
