Sovol SV01 PRO - Circuit Wiring

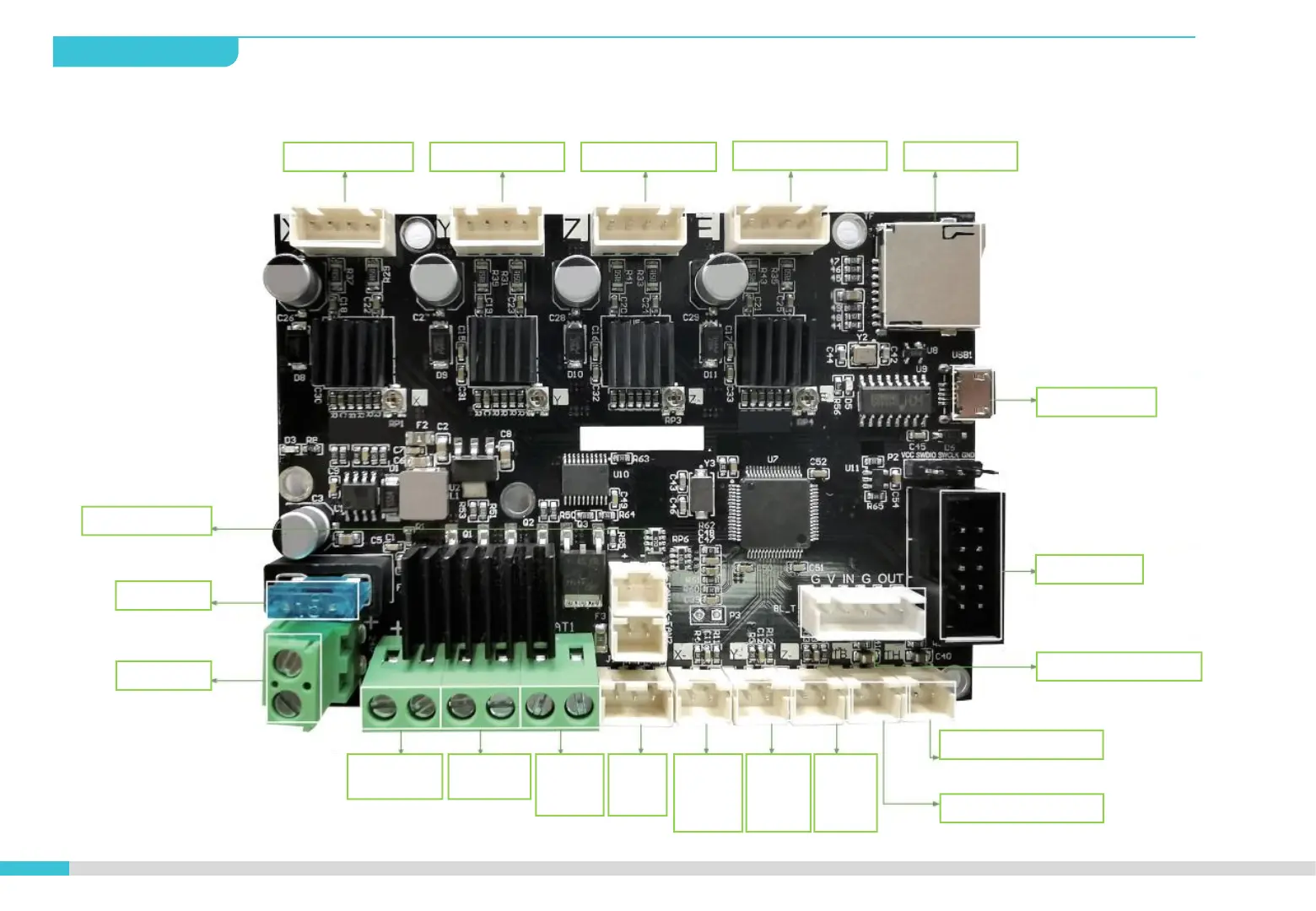

16. Circuit Wiring
X-axis motor port Y-axis motor port Z-axis motor port
Extrusion motor port
TF card slot
Controllable fan
Fuse
Power port
Normal fan
port
Hotbed
Wire port
Nozzle
wire
port
Pre-
set
port
X-axis
limit
switch
port
Y-axis
limit
switch
port
Z-axis
limit
switch
port
CR-Touch optional port
Screen port
Micro USB port
Nozzle thermistor port
Hotbed thermistor port
