4. Install Gantry Components
04

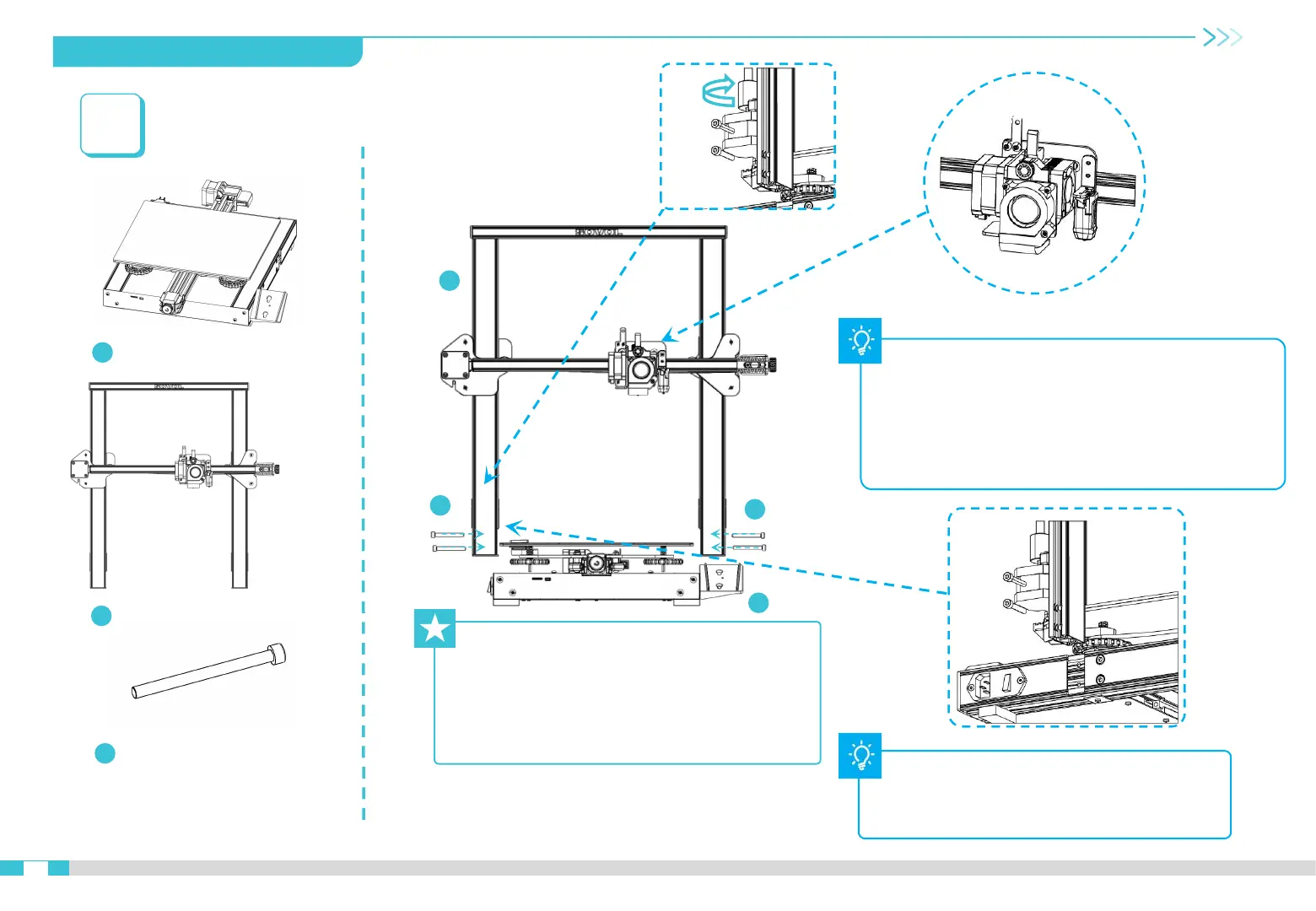

Install gantry components
1
1.Rotate the couplers to raise the x-axis to
the position shown in the figure, and lock
the gantry assembly with M5x45 hexagon
bolts on the base. (as shown in figure A)
Machine base x1
1
2
3
Gantry x1
M5x45 hexagon bolt x4
1. The cables on the extruder assembly, including CR
touch cable, extrusion motor wire, fan cable, nozzle
thermistor and heating pipeline, shall be fixed on the
extrusion motor mounting bracket with black tape. If it
is disassembled, please fix it again before use.
1
2
3
3
3.Two Z-axis profiles, installed on the inner
step of the Y-axis bottom profile.
A
To Next Page
