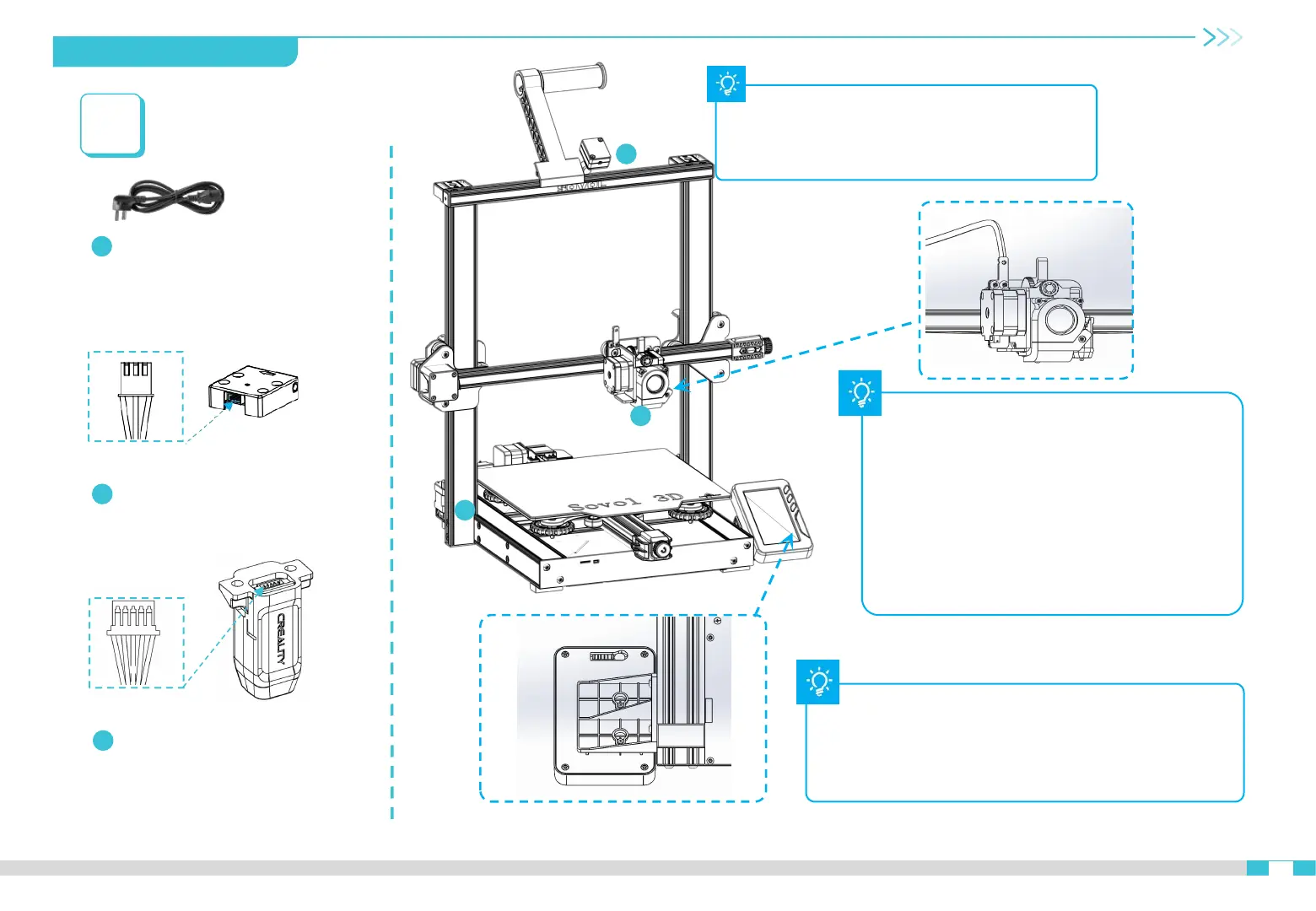

7. Equipment Wiring
07
Power cable
1
Equipment wiring
4
CR-Touch cable connection
3
1. The wires on the nozzle assembly,
including CR touch leveling wire, extrusion
motor wire, fan wire, nozzle thermal and
heating pipeline, shall be fixed on the
extrusion motor mounting bracket with
black rolled tape. If it is disassembled,
please fix it again before use.
2. The touch screen line is connected with the
main board through the metal plate opening
of the base.
1
2
Filament sensor connection
2
3
Tips： The filament sensor must have
filament inserted and detected so that the
printer can print normally.
