Step 3. CPU Voltage Setting (JP30,JP1 and JP2)
Please verify the correct voltage with your dealer before installation.
Use the following tables to set JP30 to the proper "Voltage Value",
according to the specifications marked on your CPU: This
mainboard comes with pre-configured setting of CPU voltage.
However the voltage of your CPU maybe different with the default
setting.

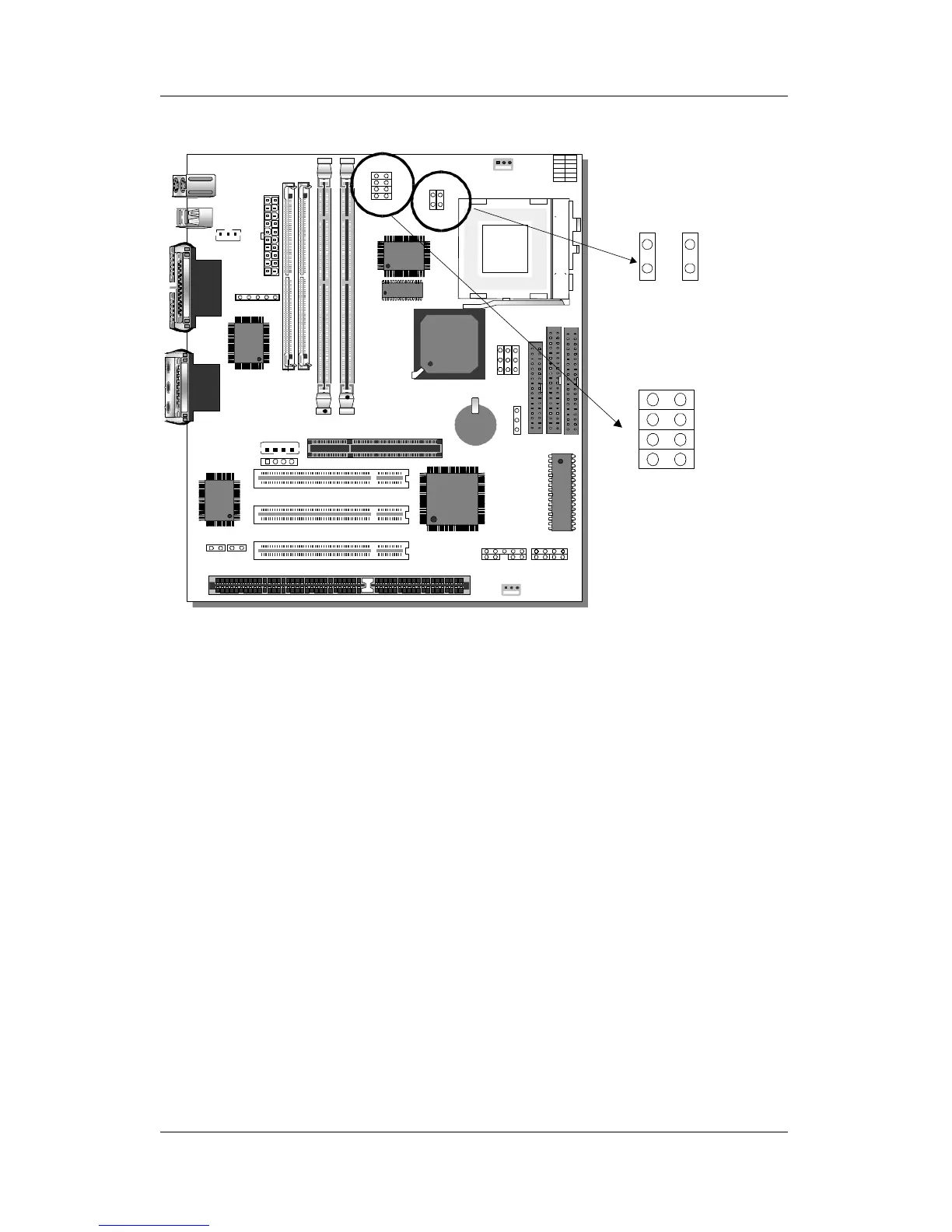

l CPU VOLTAGE SETTING (JP30,JP1 and JP2)
JP30 is used to set the CPU core voltage, JP1 and JP2 are used to
select the CPU voltage type single voltage or dual voltage.
There are two kinds of CPU voltages currently on the market
depending on the CPU manufacturer:
Ø Single Voltage (CPU: P54C, AMD-K5, Cyrix 6x86)
Ø Dual Voltage (CPU: P55C, AMD-K6, AMD-K6-2 Cyrix
6x86L,Cyrix 6x86MX, Cyrix M II)
To Next Page
