Introduction SY-5EMM
11
Those processors may come in various voltages on different
markets. Therefore, always make sure you know the type of the
CPU you are installing and adjust the settings on JP30 accordingly.
This motherboard supports CPU core voltages from 2.0 to 3.52V in
0.1V increments. Use the following tables to set the CPU voltage
jumpers JP30 to match the voltage value of your CPU:

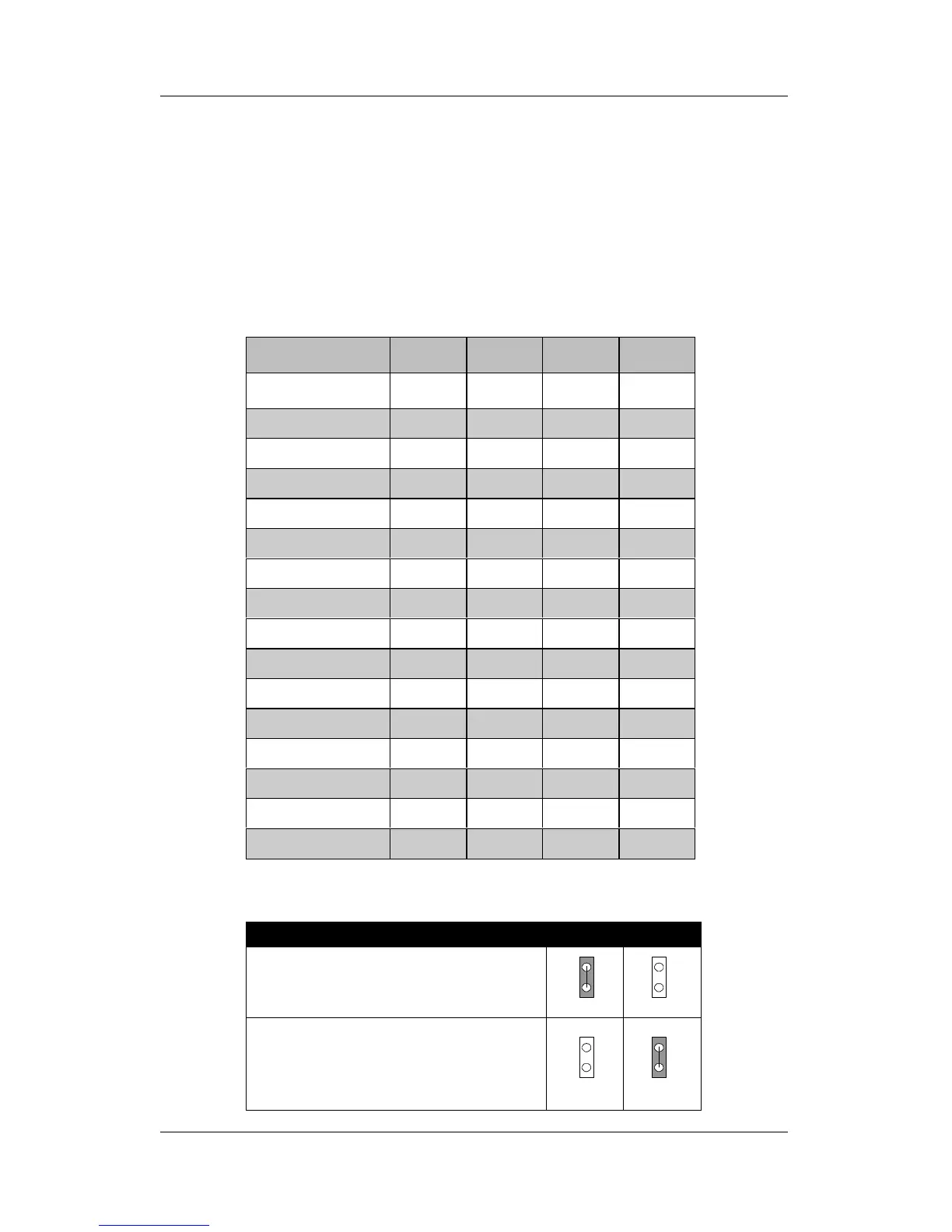

CPU Core Voltage Setting: JP30
Voltage Value 1-2 3-4 5-6 7-8
3.5V close close close close
3.4V open close close close
3.3V close open close close
3.2V open open close close
3.1V close close open close
3.0V open close open close
2.9V close open open close
2.8V open open open close
2.7V close close close open
2.6V open close close open
2.5V close open close open
2.4V open open close open
2.3V close close open open
2.2V open close open open
2.1V close open open open
2.0V open open open open
Single or Dual voltage selection: JP1 and JP2
Voltage Type JP1 JP2
Single Voltage
(P54C, AMD-K6, Cyrix 6x86)
Dual Voltage
(P55C, AMD-K6, AMD-K6-2, Cyrix
6x86L, Cyrix 6x86MX, Cyrix M II)
