Step 13. ATX Power Supply

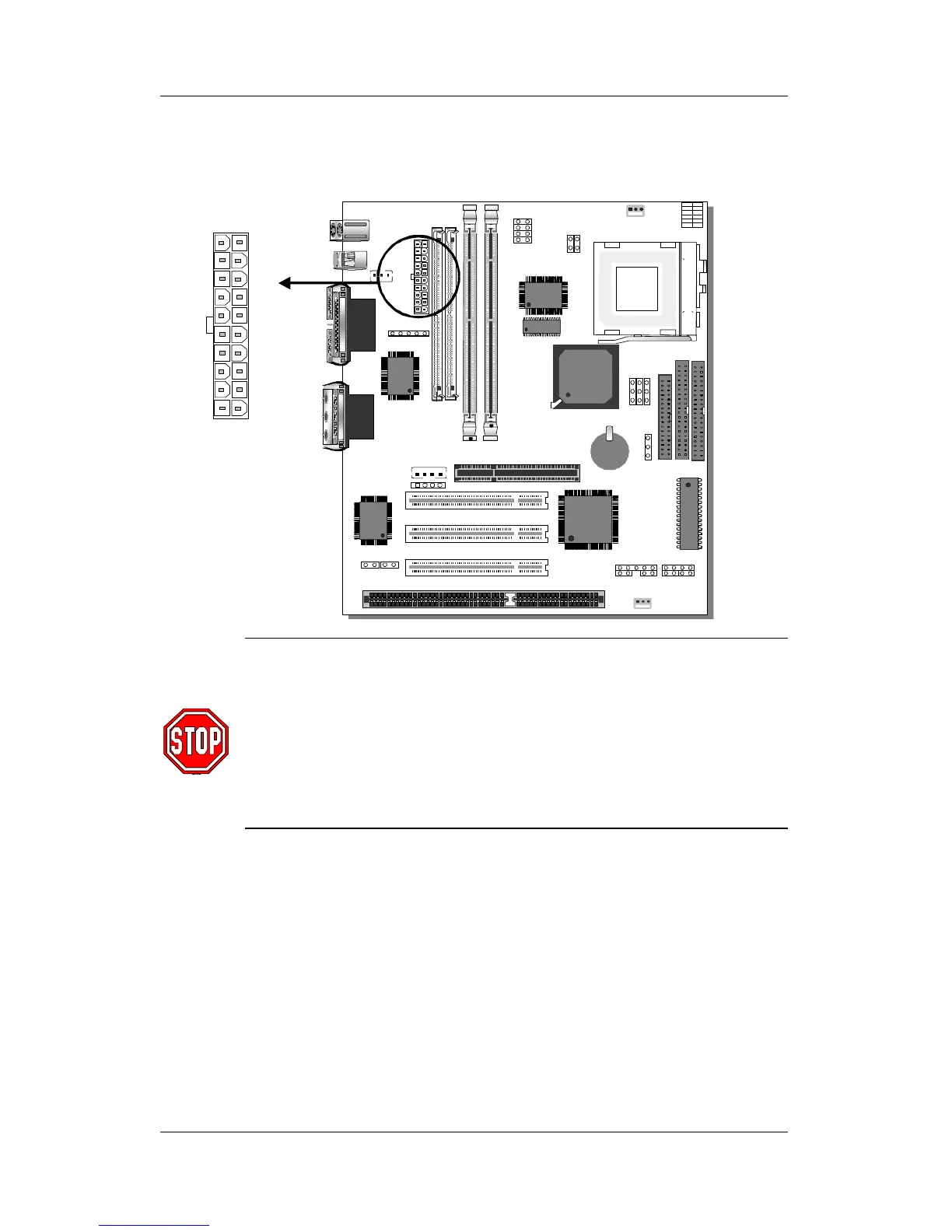

Plug the connector from the power directly into the 20-pin male ATX
PW connector on the mainboard, as shown in the following figure.
Warning: Follow these precautions to preserve your
mainboard from any remnant currents when connecting to
ATX power supply:
Turn off the power supply and unplug the power cord
of the ATX power supply before connecting to ATX PW
connector.
The mainboard requires a power supply with at least 200 Watts and
a "power good" signal. Make sure the ATX power supply can take at
least 10 mA load on the 5V Standby lead (5VSB) to meet the
standard ATX specification.
* Note: If you use the Wake-On-LAN (WOL) function, make sure the
ATX power supply can support at least 720 mA on the 5V Standby
lead (5VSB).
