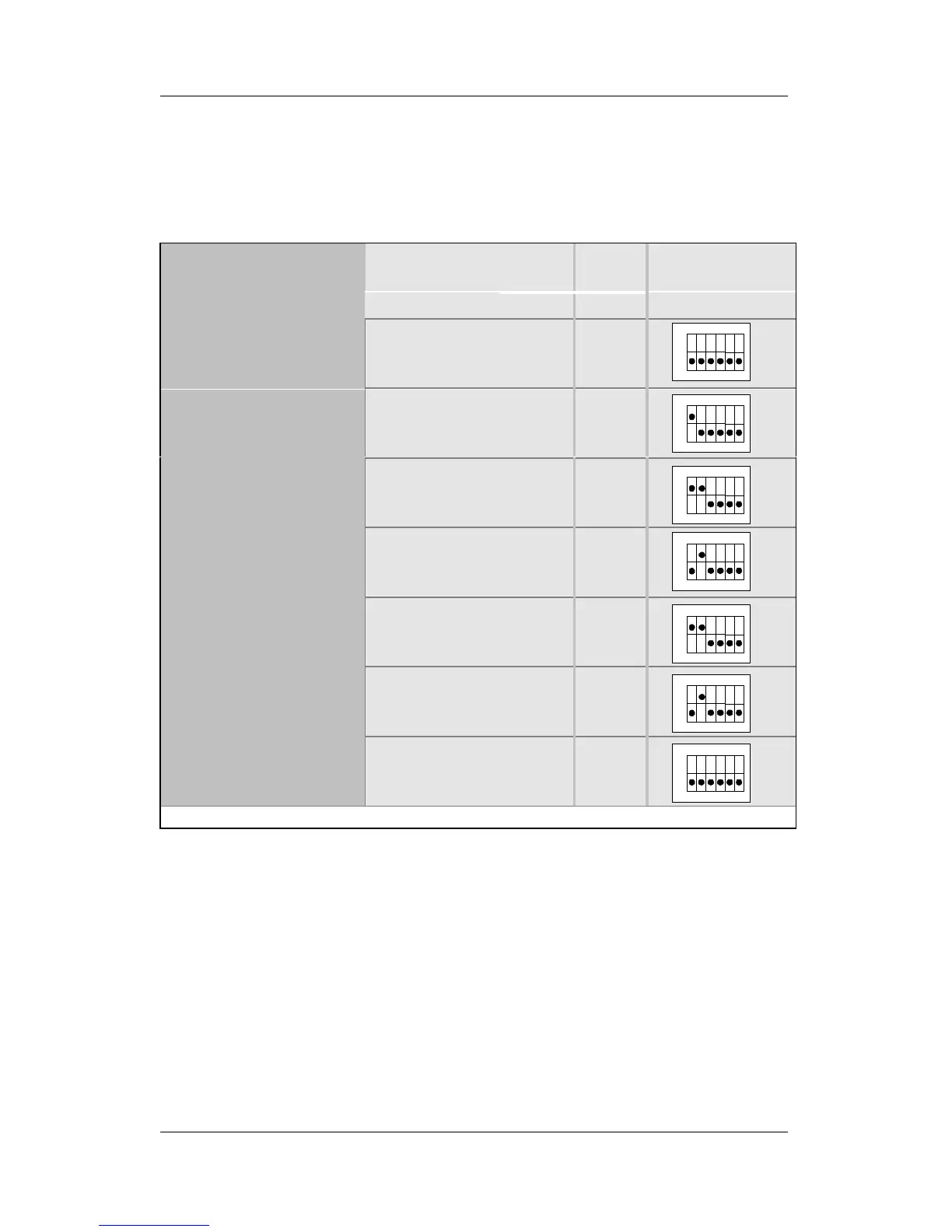

Please refer to the following table that gives you the correct
frequency settings for the specific brand and model of CPU you are
installing on this mainboard.
Frequency Settings for Intel
®
Processors
Processor
Frequency Setting
Ratio
Bus
Clock
AGP
Clock
PCI
Clock
Frequency
Setting: SW1
Intel P54C - P100 1.5 x 66MHz 66MHz 33MHz
Intel P54C - P133 2.0 x 66MHz 66MHz 33MHz
Intel P54C - P166 2.5 x 66MHz 66MHz 33MHz
Intel P54C - P200 3.0 x 66MHz 66MHz 33MHz
Intel P55C - P166 2.5 x 66MHz 66MHz 33MHz
Intel P55C - P200 3.0 x 66MHz 66MHz 33MHz
Intel P55C - P233 3.5 x 66MHz 66MHz 33MHz
* Set the proper CPU frequency according to the marking on the CPU.
