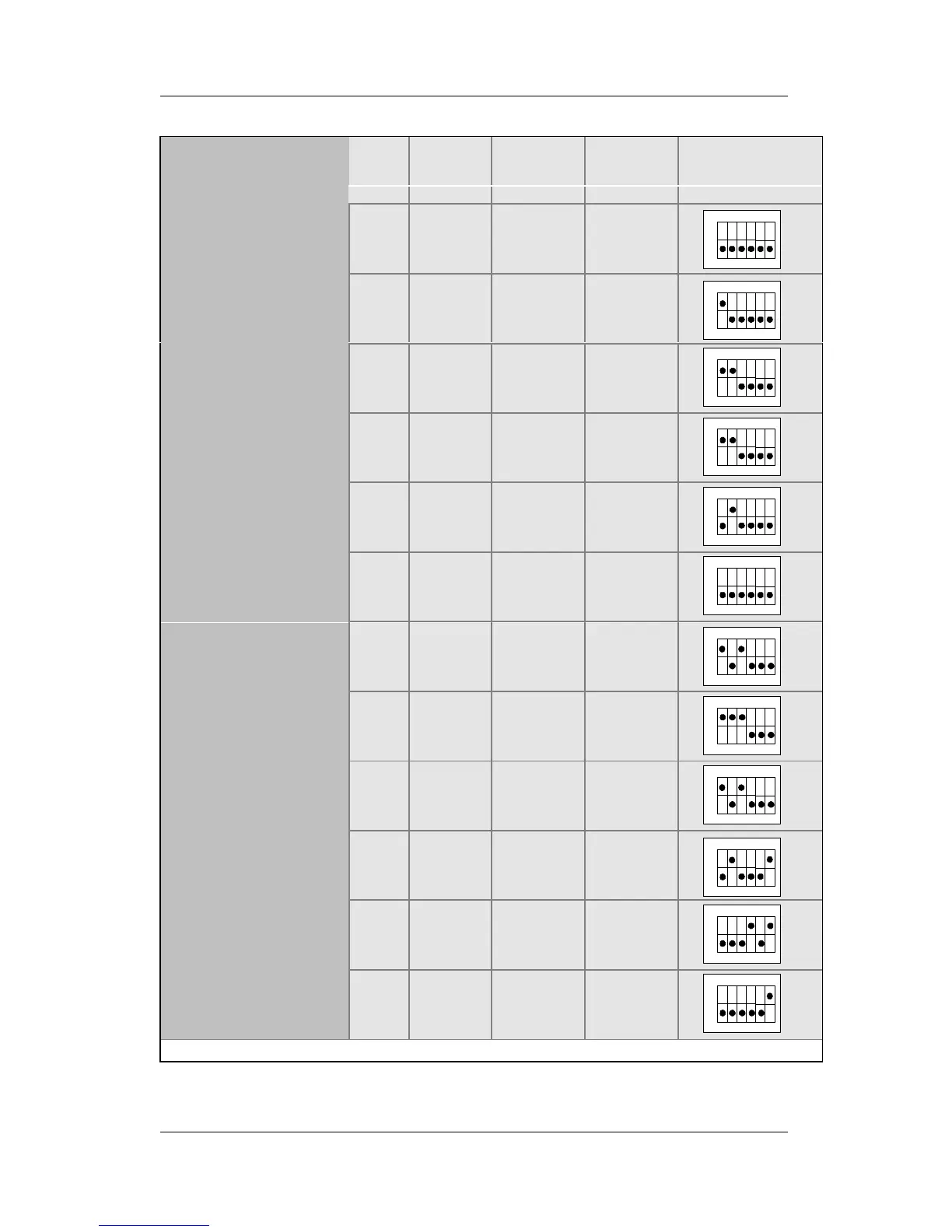

Frequency Settings for AMD™ Processors
Processor
Frequency Setting
Ratio
Bus
Clock
AGP
Clock
PCI
Clock
Frequency
Setting: SW1
AMD K5 - PR100 1.5 x 66MHz 66MHz 33MHz
AMD K5 - PR133 2.0 x 66MHz 66MHz 33MHz
AMD K5 - PR166 2.5 x 66MHz 66MHz 33MHz
AMD K6 - 166 2.5 x 66MHz 66MHz 33MHz
AMD K6 - 200 3.0 x 66MHz 66MHz 33MHz
AMD K6 - 233 3.5 x 66MHz 66MHz 33MHz
AMD K6 - 266 4.0 x 66MHz 66MHz 33MHz
AMD K6 - 300 4.5 x 66MHz 66MHz 33MHz
AMD K6-2 266 4.0 x 66MHz 66MHz 33MHz
AMD K6-2 300 3.0 x 100MHz 66MHz 33MHz
AMD K6-2 333 3.5 x 95MHz 63.4MHz 31.7MHz
AMD K6-2 350 3.5 x 100MHz 66MHz 33MHz
* Set the proper CPU frequency according to the marking on the CPU.
