ASSEMBLE
3.

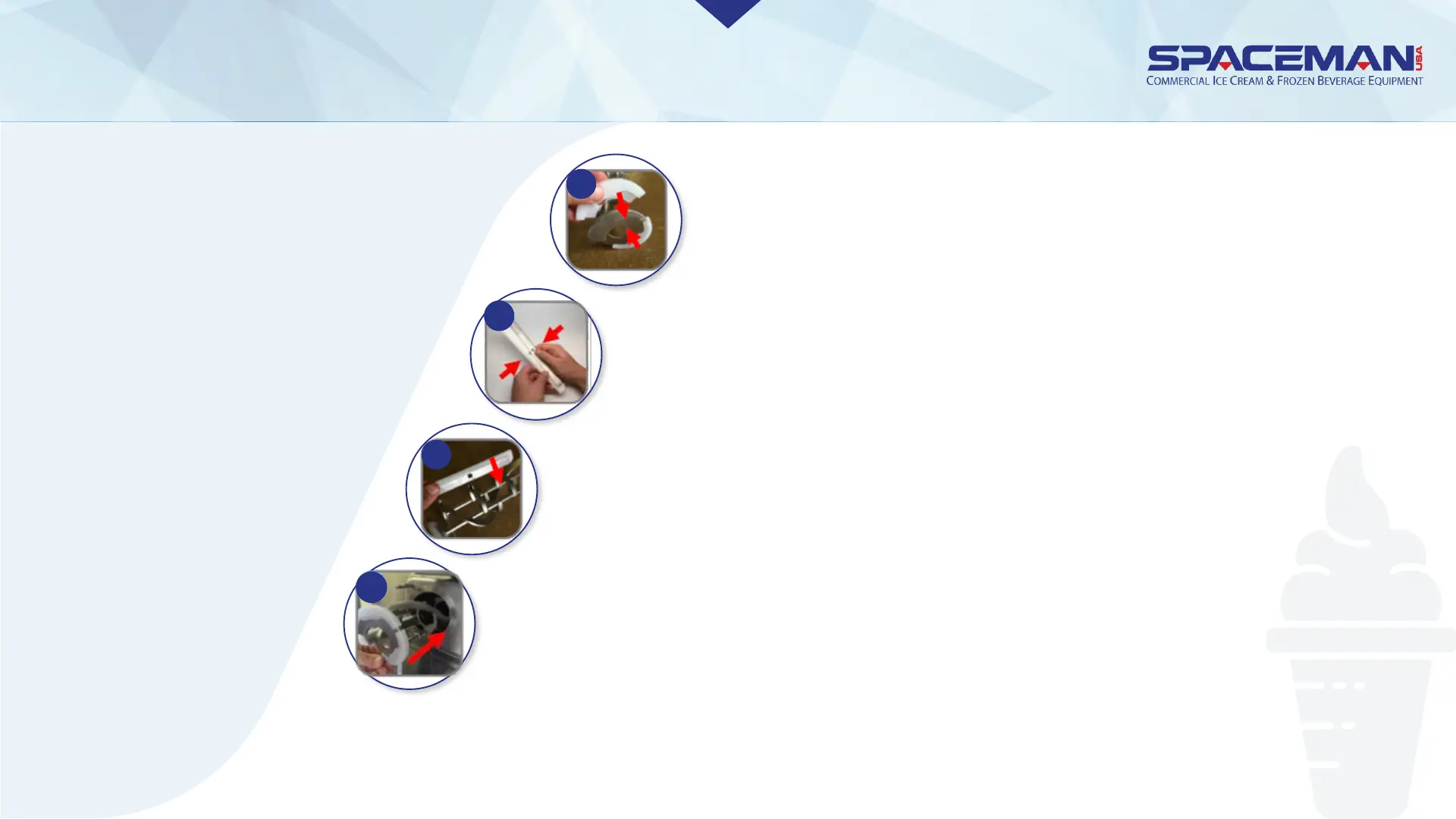

Install beater
assembly
3a
3b
3c
3d
Attach beater shoes (2) onto beater; when properly
placed, neither shoe overhangs beater edge * move to
step c for new models
Install scraper blade clips onto scraper blades *move to step c
for new models
Fit scraper blades onto beater
Insert beater assembly into cylinder, making sure beater shoes stay in place;
turn assembly until it engages the drive shaft key and no longer turns 360°
NOTE: * Newer models will not have blade clips OR beater shoes
