25

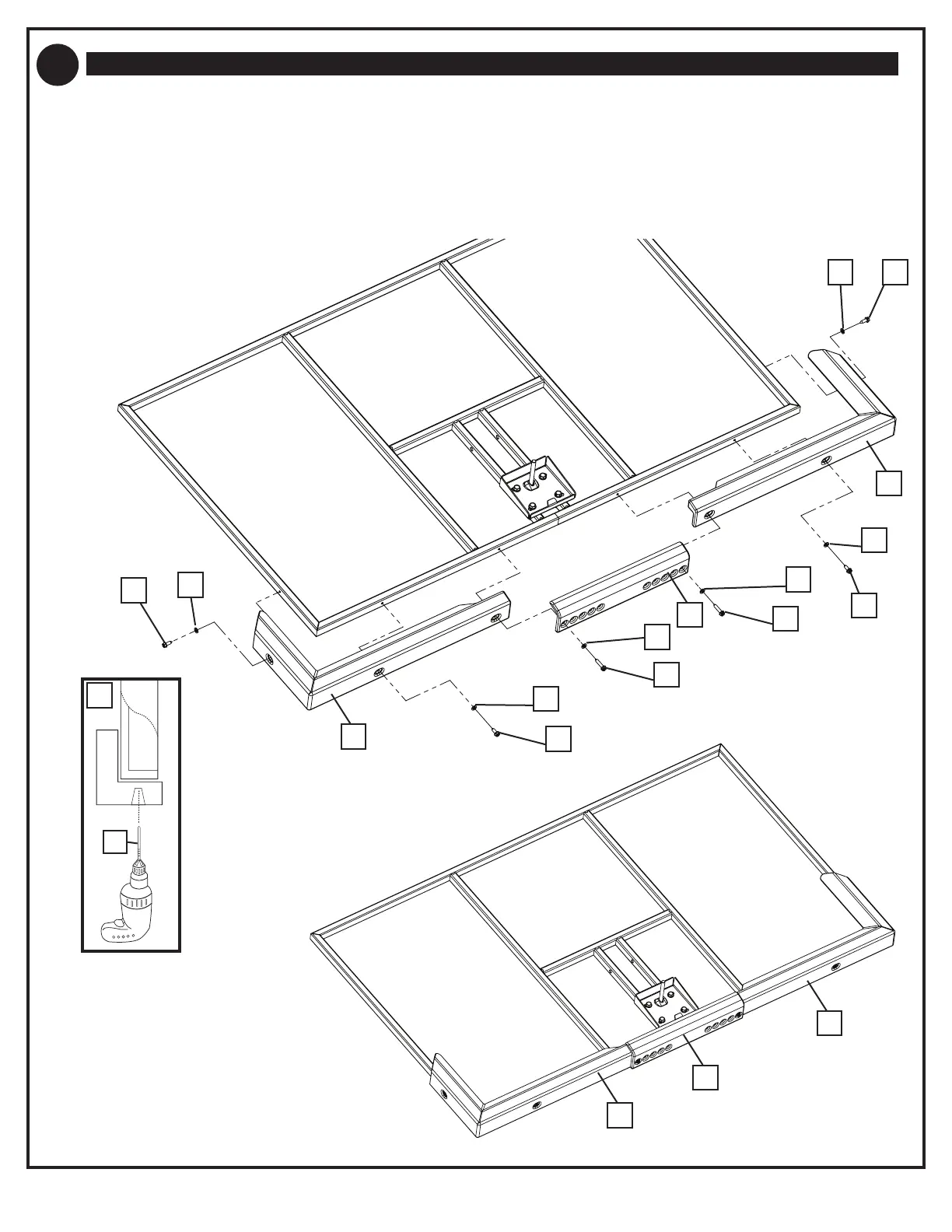

Install Board Pads to Backboard
With the board still on saw horses or a support table:
Attach the left (44) and right (45) pad sections to board using the screws (50) and washers (49) as shown.
Using the holes which line up for your board size, attach the center pad section (46) to the left and right sections and
board using screws (48) and washers (49) as shown.
• It may be necessary to use an 11/64 drill bit (47) to pre-drill on some backboards (Figure A). A center punch is
recommended to mark hole locations prior to drilling to keep the drill bit from wandering.
4.
48
48
49
49
50
50
50
50
49
49
49
49
44
45
46
44
45
46
A.
47
