SPALDING 881042 - Side View

13
IMPORTANT! CONTINUE ON TO NEXT STEP. DO NOT WAIT FOR CONCRETE TO CURE.

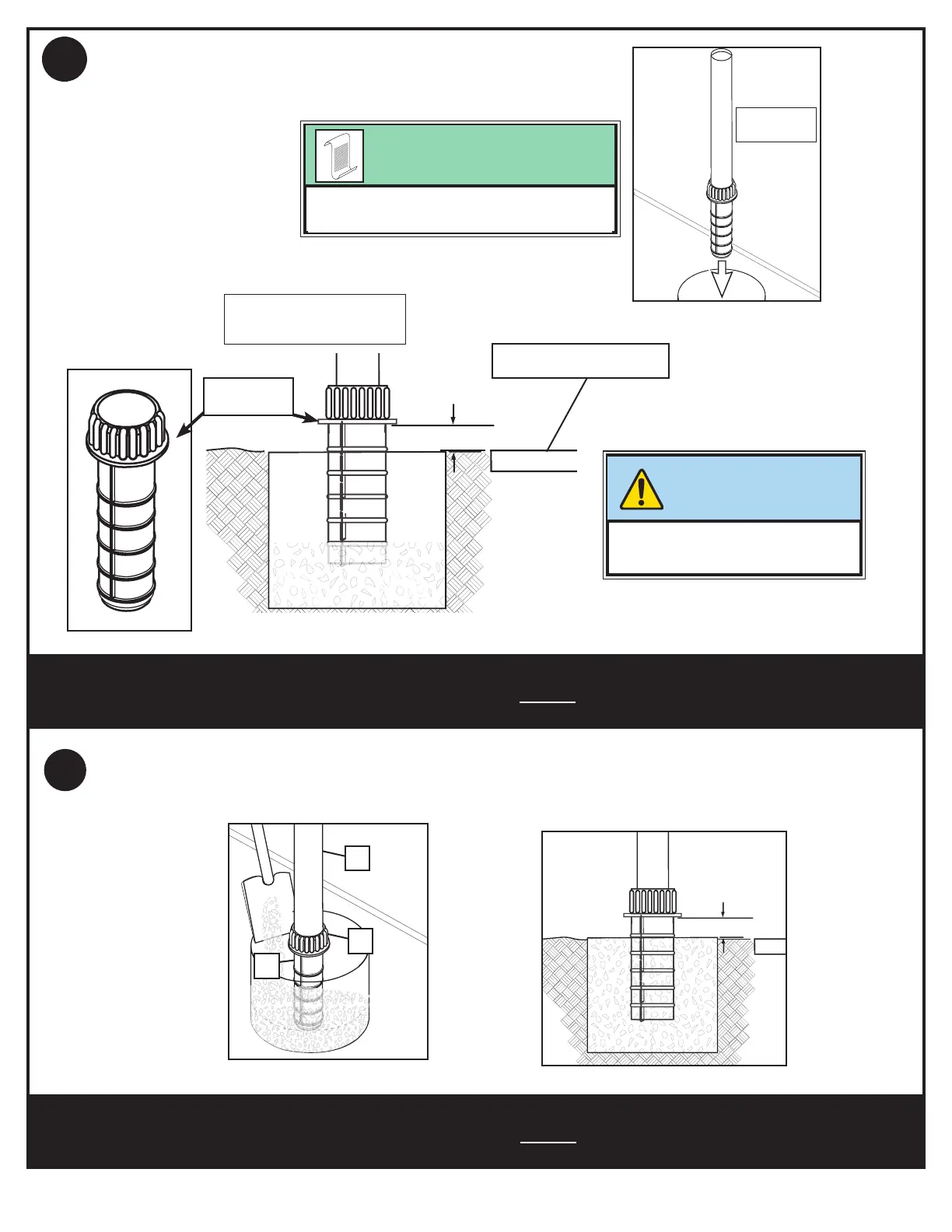

Insert the ground sleeve assembly and center in the hole (FIG. A).
5.
1" (2.54 cm)
1" (2.54 cm)
1" (2.54 cm)
SIDE VIEW
FLANGE
Leave 1” below flange exposed for drainage hill.
NOTE:
FIG. A
PLAYING SURFACE
IMPORTANT!
NOTE THE POSITION
OF THE FLANGE
IMPORTANT! CONTINUE ON TO NEXT STEP. DO NOT WAIT FOR CONCRETE TO CURE.
3
Fill the hole completely with concrete.
6.
1" (2.54 cm)
1" (2.54 cm)
1" (2.54 cm)
5
4
