Assemble the Upper Elevator
21
E

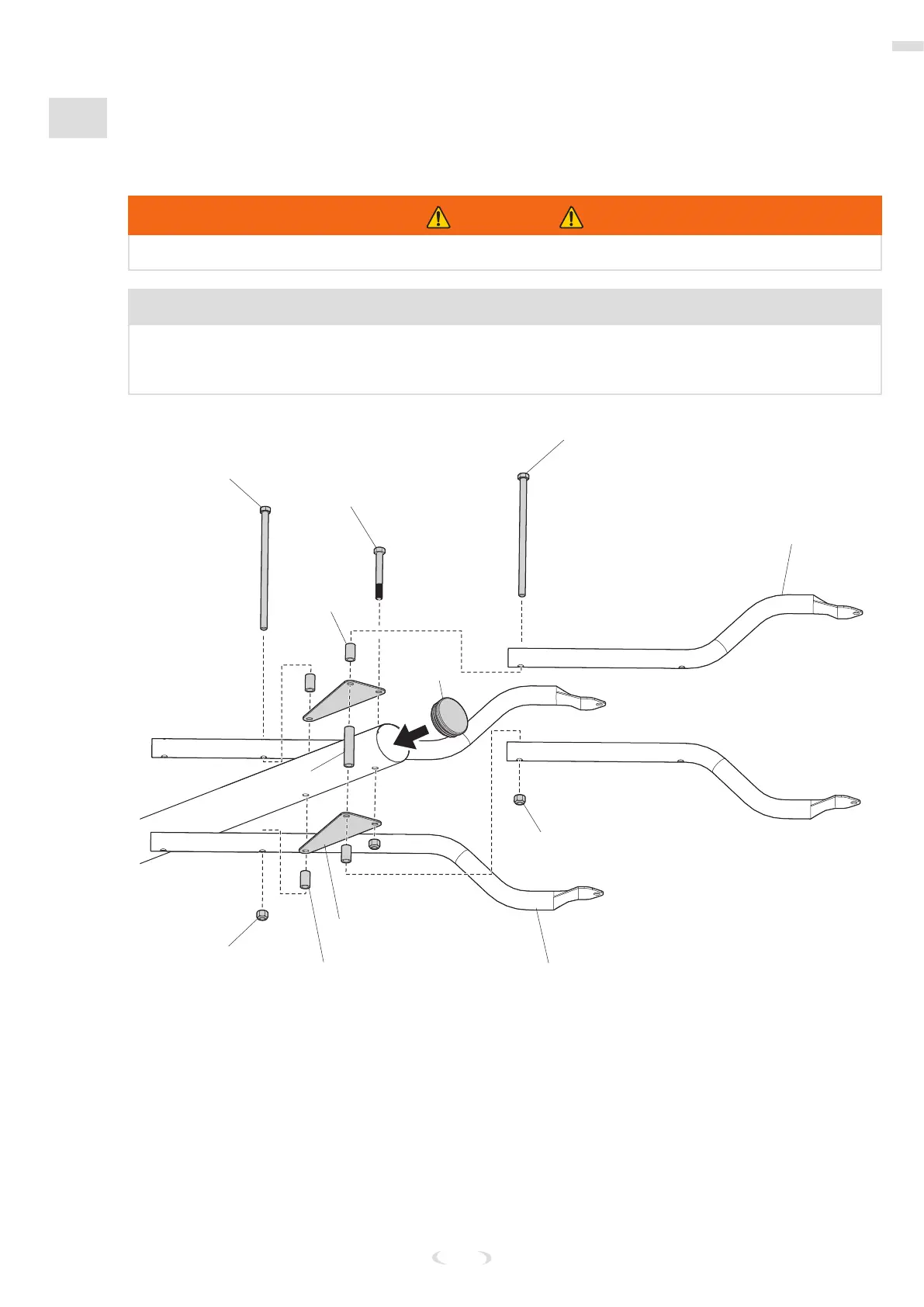

ATTACH THE ELEVATOR TUBE ASSEMBLY
2. While the system is securely resting on the sawhorse. Install elevator tubes (32 and 35) to top
pole section (4). Install pole cap (38) at this time.
WARNING
TIGHTEN THE BOLTS (A5) IN THE LOCK NUTS (A2) UNTIL FLUSH (EVEN) WITH THE LOCK NUT’S OUTER EDGE.
NOTE
TEST-FIT THE LARGE BOLTS INTO THE LARGE HOLES OF THE ELEVATOR TUBES, BACKBOARD BRACKETS, AND
TRIANGLE PLATES. CAREFULLY ROCK THEM IN A CIRCULAR MOTION TO REAM OUT ANY EXCESS PAINT FROM
HOLES, IF NECESSARY.
