Assemble the Upper Elevator
22
F

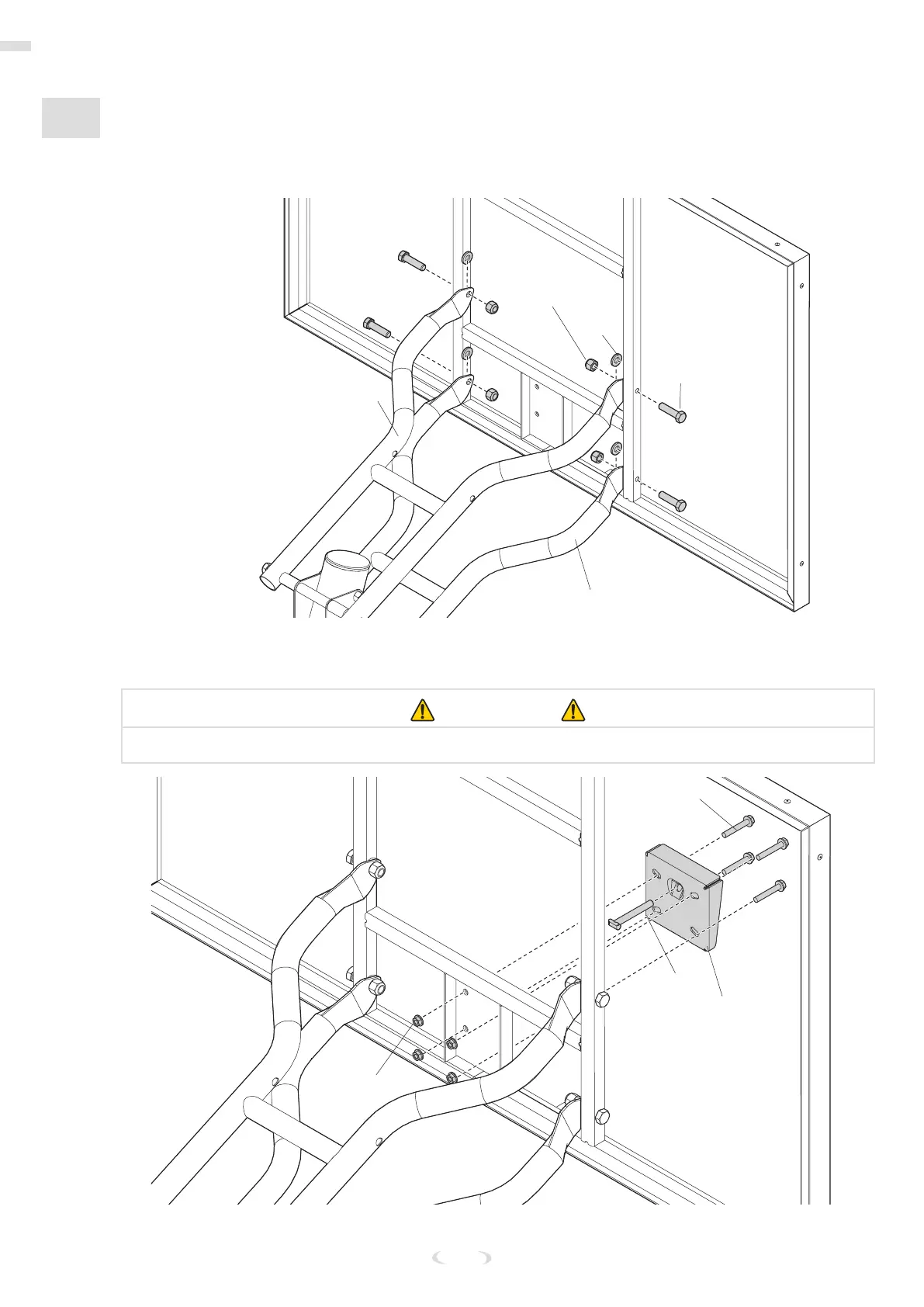

ATTACH THE BACKBOARD
1. While still supported on sawhorse, attach the elevator tubes (32, 35) to the backboard using the
spacers (30), bolts (23), and nuts (31).
#35
#31
#32
#30
#23
2. Insert the t-bolt (45) into the slam jam bracket (44) and attach to board using the bolts (26) and
nuts (14).
IMPORTANT
CAREFULLY CUT AND PEEL PROTECTIVE FILM AWAY FROM BOARD PRIOR TO ATTACHING RIM.
#26
#44
#45
#14
