SPALDING M7B60E00 - Page 27

Assemble the Upper Elevator
27
I

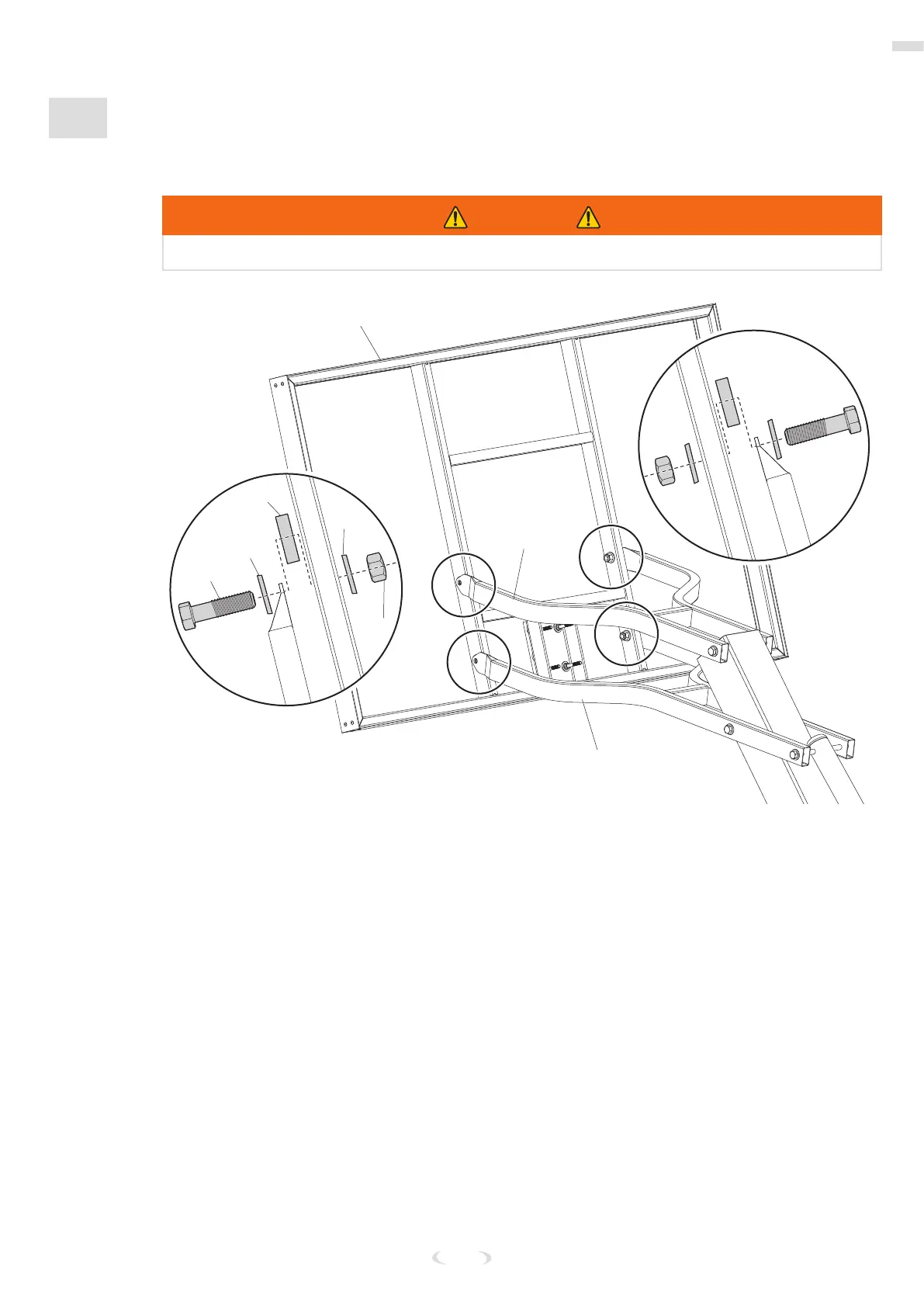

ATTACH THE BACKBOARD
11. Attach the backboard (23) to the elevator tubes (21 and 22) using the bolts (A1), washers (A3),
bushings (A6), and nuts (A2).
WARNING
TIGHTEN THE BOLT (A1) IN THE LOCK NUT (A2) UNTIL FLUSH (EVEN) WITH THE LOCK NUT’S OUTER EDGE.
#23
#21
#22
#A2
#A1
#A3
#A6
#A3
