Tools & Materials for Assembly
9
STADIUM PAD ASSEMBLY
LABEL AS APPROVED BY HUFFY SPORTS ENGINEERING
FOR OUTDOOR APPLICATION
2-5/8" Wide x 7-1/8" Long
574090 12/06
MOVING SYSTEM
HEIGHT
ADJUSTMENT
B
A
Rotate crank
handle to raise
and lower
backboard.
Do not over crank
handle beyond the
manufactured height
indicator range of
7-1/2 - 10 feet.
Damage may be
caused to the screw
jack’s internal
adjustment
mechanism if
adjusted over 10 or
under 7-1/2 feet.
1
3
2
4
1.
2.
3.
4.
5.
Adjust basketball backboard height to
lowest postion.
Rotate handle forward until wheels
engage ground.
Move basketball system to desired location.
Rotate handle back to original position.
Check system for stability.
P/N 204872P/N 204872
P/N 204872P/N 204872
7-
1/2
#33
#32
#31
#29
#30

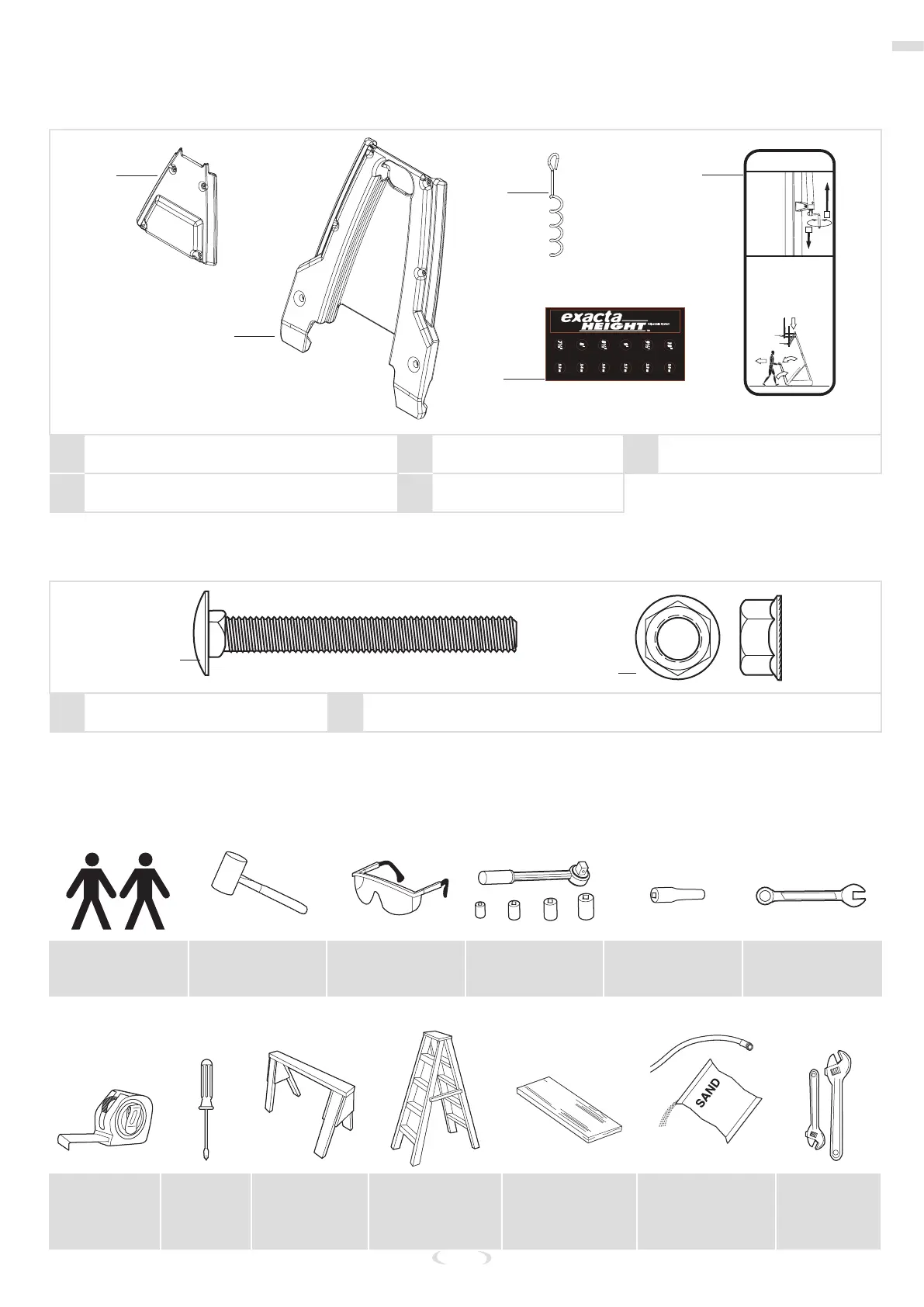

29 Stadium Pad, Bottom (x1) 30 Stadium Pad, Top (x1) 31 Ground Stake (x1)
32 Label, Height Adjustment and Moving (x1) 33 Label, Height Indicator
KIT 7 – STADIUM PAD HARDWARE – AC00002
Bolt, Carriage, 3/8-16 x 2-3/4
206011
203041
NUT, HEX FLANGE, 3/8-16
#P1
#P2
P1 Bolt, Carriage, 3/8-16x2.75L (x10) P2 Nut, Hex-Flange, 3/8-16 (x10)
Tools & Materials for Assembly
2 Capable Adults Mallet Safety Glasses
Socket Wrench
1/2", 9/16", 3/4"
Socket Wrench
Extension
Wrench
1/2", 9/16", 3/4"
Tape Measure
Phillips
Screwdriver
#3
Sawhorse Step Ladder (8 ft.) Scrap Wood Board Sand/Garden Hose
(OPTIONAL)
Adjustable
Wrenches
