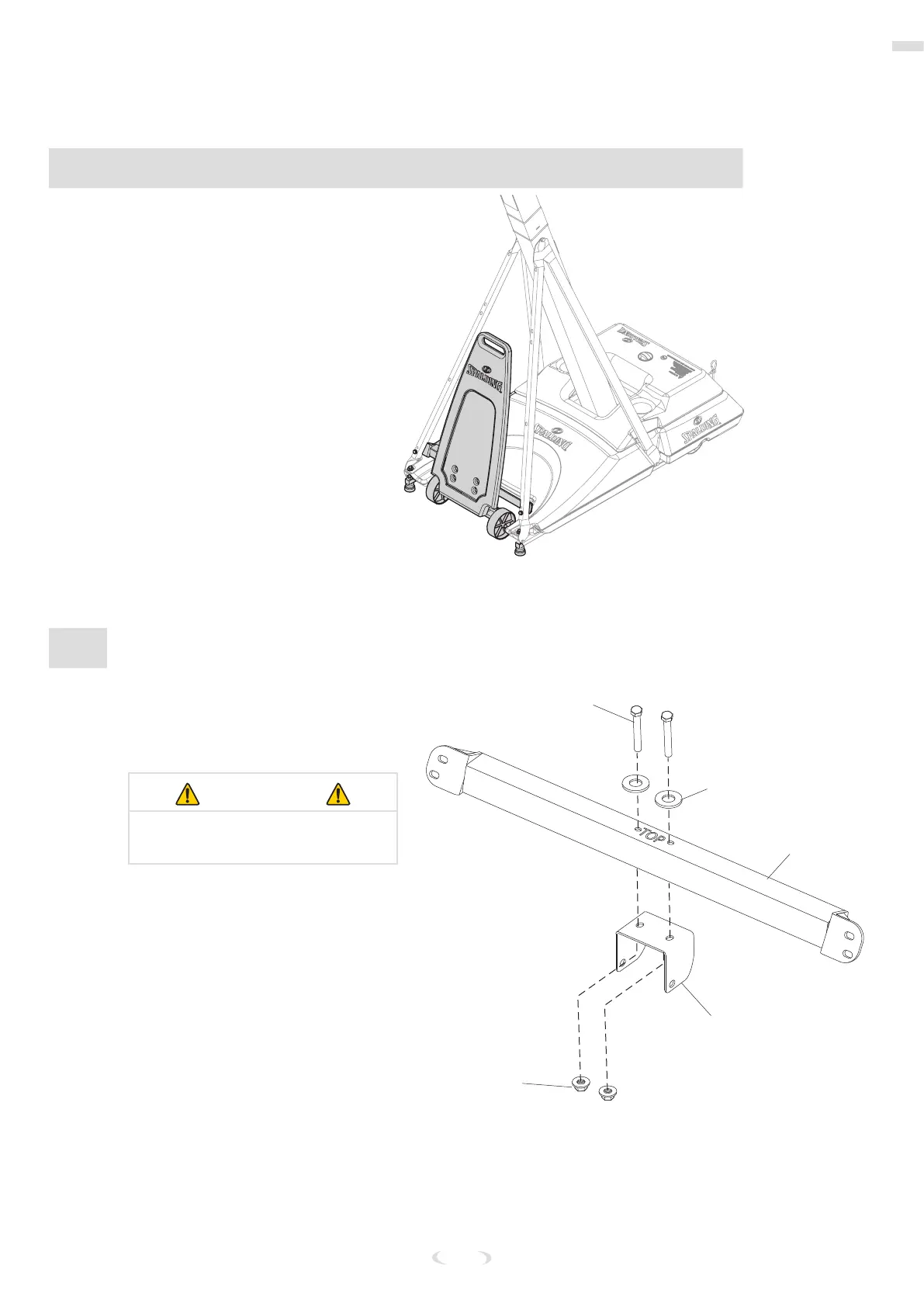

Assemble the Wheel Carriage
17
Assemble the Wheel Carriage
Required Parts: Completed Wheel Carriage Assembly:
• Kit 3
• Scrap Wood Board
• 9/16" Socket Wrench or Wrench
• Mallet
D
PREPARE THE BASE FOR THE WHEELS
1. Attach the u-bracket (9) to the
cross member (13) using the
bolts (W4), washers (W3), and
nuts (W2).
IMPORTANT
NOTE THE ORIENTATION OF THE
BRACKET.
#W4
#W2
#W3
#13
#9
