Assemble the Base
14
D

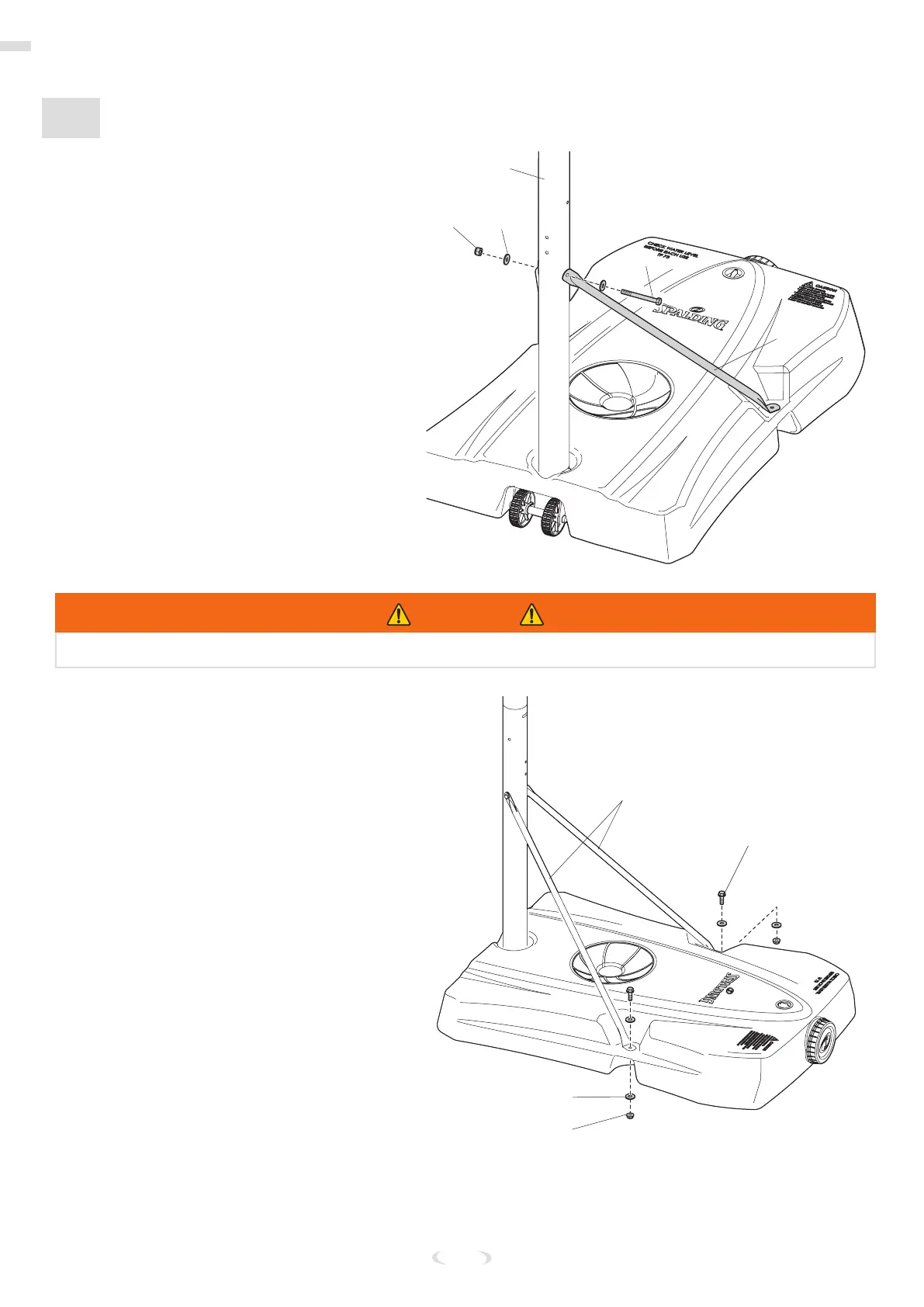

INSTALL THE STRUTS ONTO THE BASE
1. Secure at end of tank struts
(10) to the pole (6) using the bolt
(11), washers (12), and nut (13).
#6
#13 #12
#11
#10
WARNING
TIGHTEN THE BOLT (11) IN THE LOCK NUT (13) UNTIL IT IS FLUSH (EVEN) WITH THE OUTER EDGE OF THE NUT.
2. Rotate the non-secured angled
ends of the struts (10) and
secure the tank struts (10) to the
base using bolts (15), washers
(12), and nuts (16).
#10
#15
#16
#12
