Assemble the Backboard
18
F
ASSEMBLE THE BACKBOARD

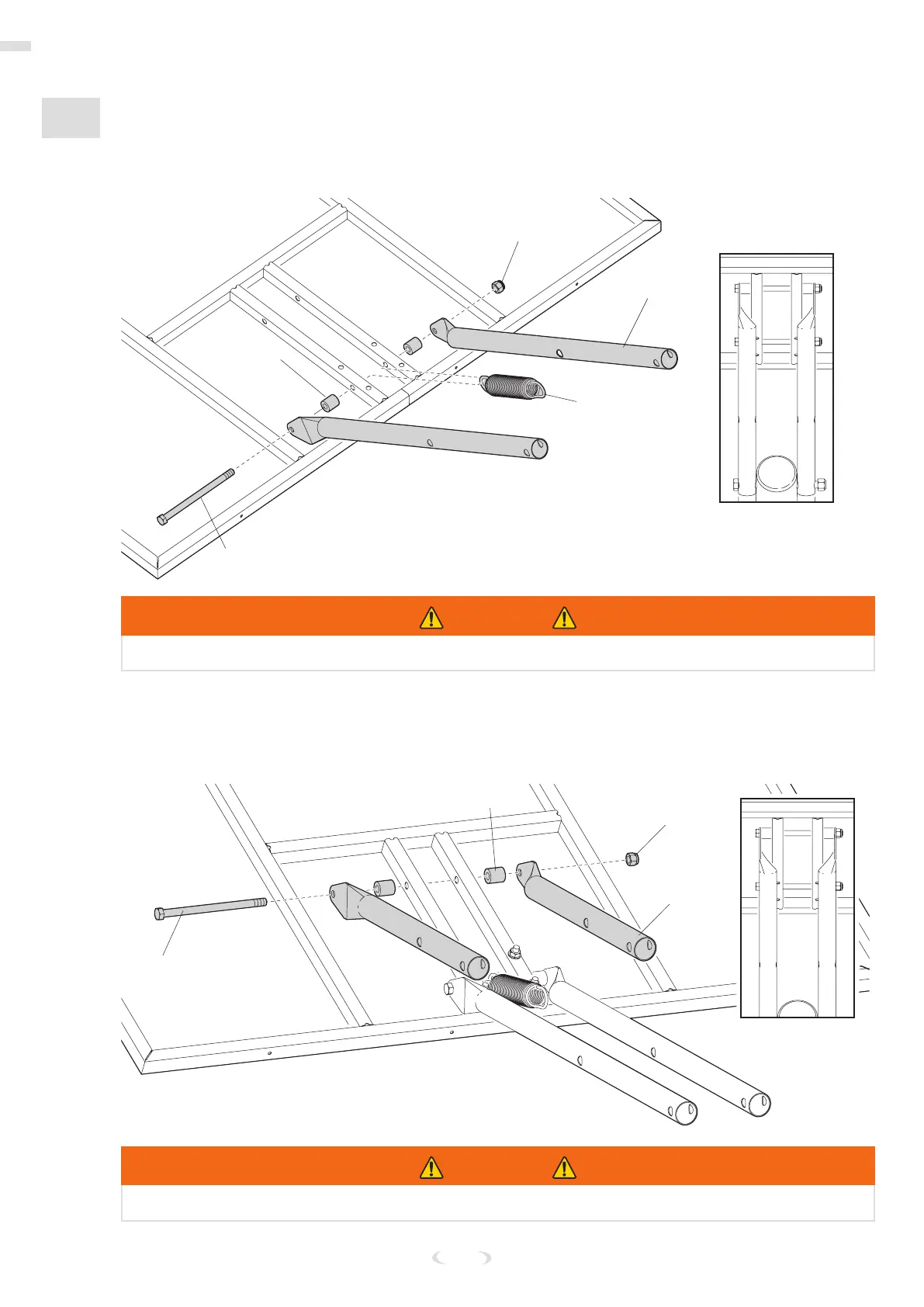

3. Attach lower elevator tubes (41) and spring (44) to backboard using spacers (20) bolt (8) and
nut (9).
#41
#44
#9
#20
#8
Elevator Tube
Oreintation
WARNING
TIGHTEN THE BOLT (8) IN THE LOCK NUT (9) UNTIL IT IS FLUSH (EVEN) WITH THE OUTER EDGE OF THE NUT.
4. Attach upper elevator tubes (42) to backboard using spacers (20), bolt (8), and nut (9).
#42
#8
#9
#20
Elevator Tube
Oreintation
WARNING
TIGHTEN THE BOLT (8) IN THE LOCK NUT (9) UNTIL IT IS FLUSH (EVEN) WITH THE OUTER EDGE OF THE NUT.
