Assemble the Backboard
19
F
ASSEMBLE THE BACKBOARD

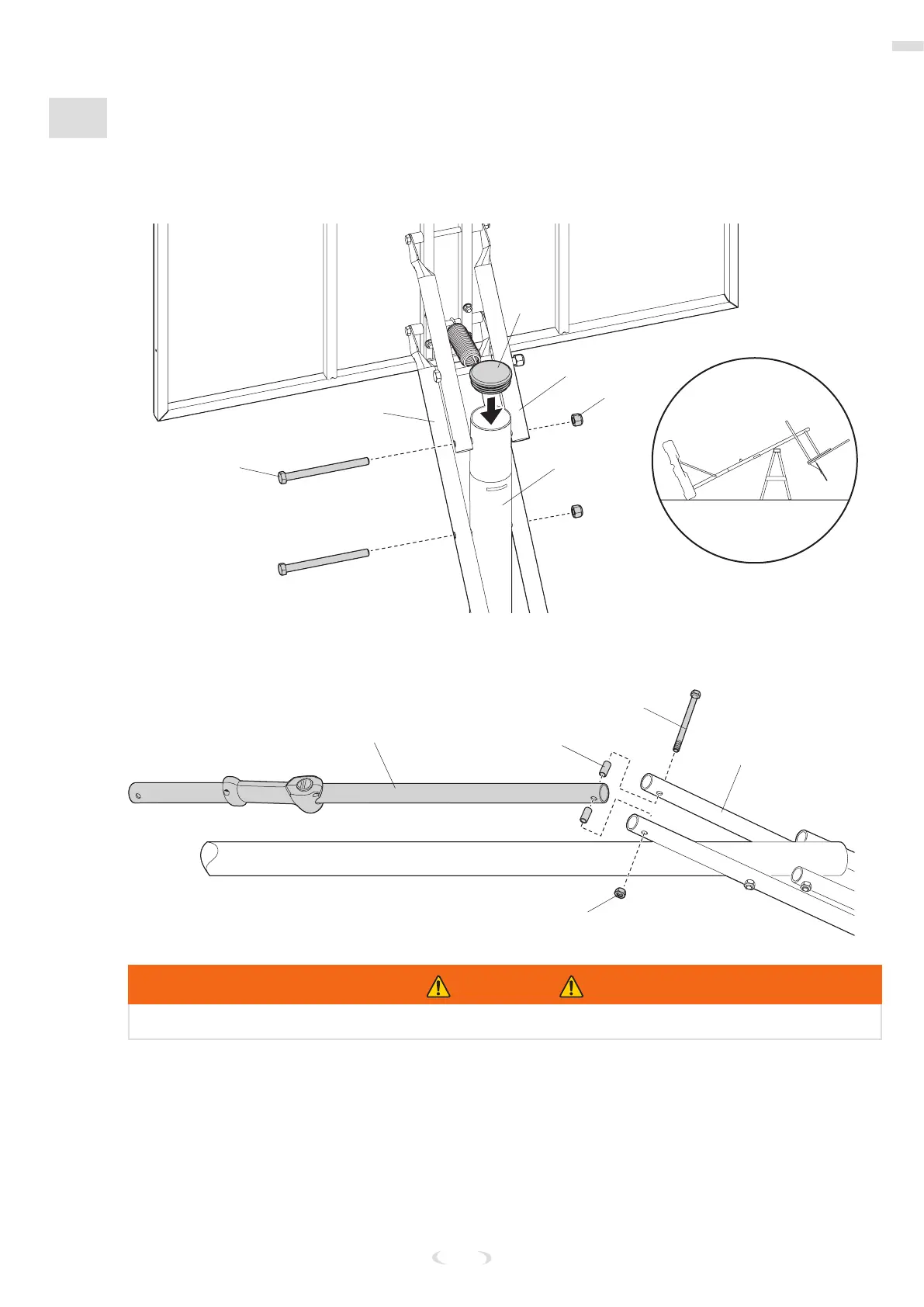

5. Support the pole on a sawhorse. Attach upper and lower elevator tubes (41 and 42) to upper pole
(4) using bolts (43) and nuts (40).
6. Attach the pole cap (22).
#40
#41
#22
#43
#42
#4
7. Attach adjustment tube (38) assembly to lower elevator tubes (41) using bolt (43), spacers (29),
and nut (40).
#38
#29
#43
#40
#41
WARNING
TIGHTEN THE BOLT (43) IN THE LOCK NUT (40) UNTIL IT IS FLUSH (EVEN) WITH THE OUTER EDGE OF THE NUT.
